ERZ-HPA-3200-3800-40

Ka Band Power Amplifier

Description:

The ERZ-HPA-3200-3800-40 is a Ka Band High Power Amplifier providing an output power of 39 dBm and a gain of 49 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
32.0 to 38
Output Power (dBm):
39
Small Signal Gain (dB):
49
Noise Figure (dB):
9
Bias:
24 ±4 VDC
Package Dimensions:
100x100x22 mm (LxWxH)
Connectors:
2.92 mm (F)
Frequency Start (GHz)
32.0
Frequency Stop (GHz)
38
Output Power (dBm)
39
Gain (dB)
49
Gain flatness (dB)
±4
Noise Figure (dB)
8
VSWR IN
1.5:1
VSWR OUT
2.0:1
Power supply (V)
24 ±4
Current (mA)
3300
Power consumption (W)
80
Max. Input DC (no damage) (V)
28
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-35 to 70ºC
Temperature (storage) (°C)
-55 to 125ºC
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

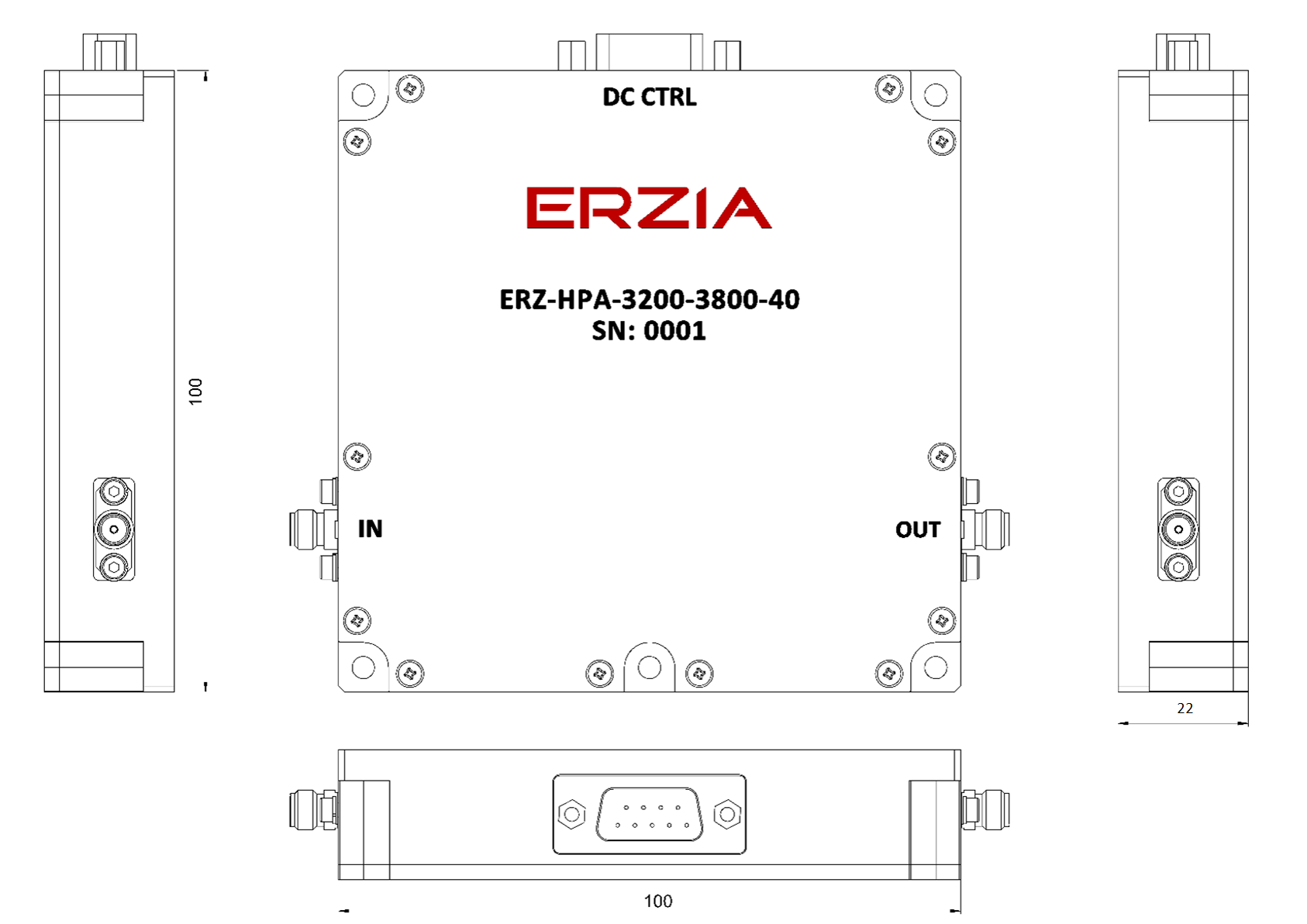

Outline Drawing:
Ordering Information:
