ERZ-HPA-0500-2300-20

Wideband Power Amplifier

Description:

The ERZ-HPA-0500-2300-20 is a low frequency wideband Amplifier providing up to 20 dBm and a gain of 19 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
5.0 to 23
Output Power (dBm):
17
Small Signal Gain (dB):
19
Bias:
Power supply: +12 V, DC Current: 100 mA
Package Dimensions:
16x30x17,5 mm
Connectors:
2.92 mm Female IN/OUT
Frequency Start (GHz)
5.0
Frequency Stop (GHz)
23
Output Power (dBm)
17
Gain (dB)
18
Gain flatness (dB)
±2
Noise Figure (dB)
-
VSWR IN
2.0:1
VSWR OUT
2.0:1
Power supply (V)
12 ±3
Current (mA)
83
Power consumption (W)
1
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
1
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

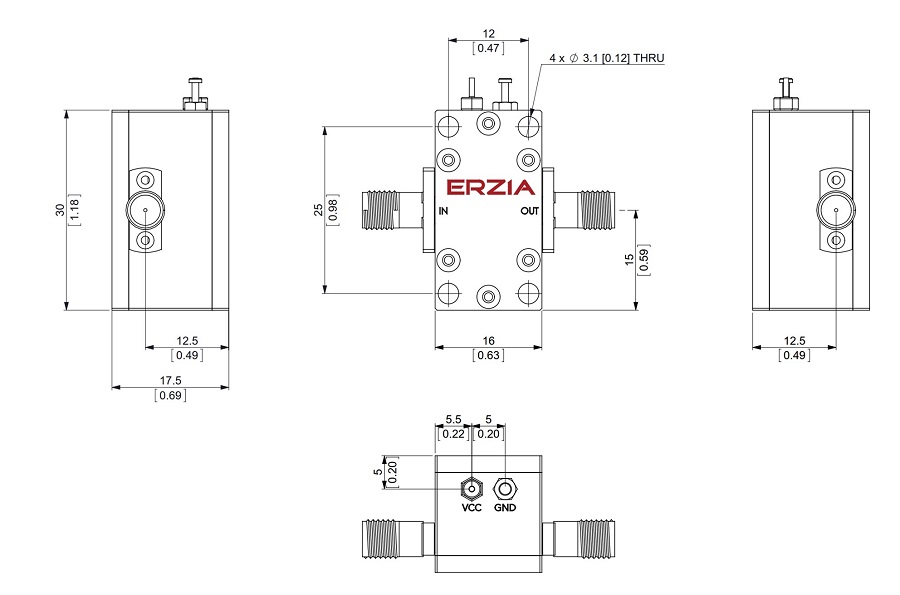

Outline Drawing:
Ordering Information:
