ERZ-LNA-2000-2250-45-1.3

Ka Band Low Noise Amplifier

Key Features
Frequency Range (GHz):
20.0 to 23
Small Signal Gain (dB):
43
Noise Figure (dB):
1.3
Bias:
12 ±3 VDC
Package Dimensions:
41.4x21.0x22.4 mm (LxWxH)
Connectors:
WR42 IN / SMA Female OUT
Frequency Start (GHz)
20.0
Frequency Stop (GHz)
23
Gain (dB)
43
Gain flatness (dB)
±1
Noise Figure (dB)
1.3
VSWR IN
2.5:1
VSWR OUT
1.8:1

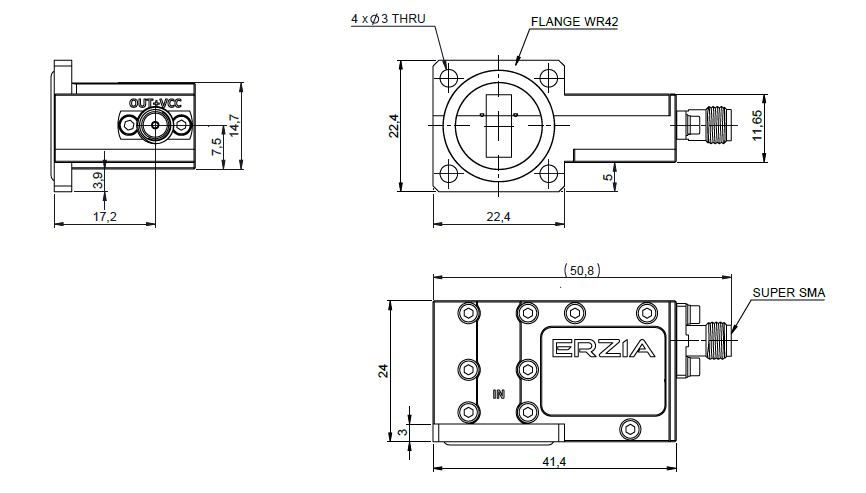

Outline Drawing:
Ordering Information:
