RF Front Ends
Direct Your Power. Define Your Signal.

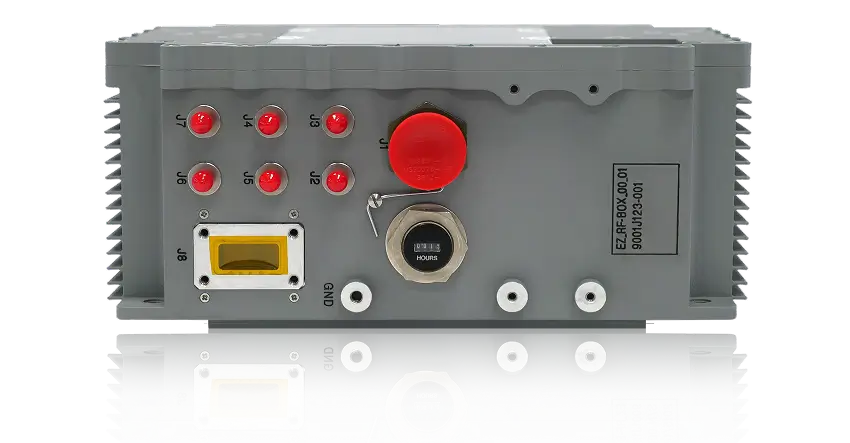

An RF front end module is the section of electronics between the antenna section and the conversion stage. In modern RF and Microwave systems this section is extremely important as it includes some of the most relevant hardware items that determine the general performance of the system. In Tx chains, the insertion losses and the efficiency of the power amplifier(s) are key to determine overall system power consumption and RF transmitted power. In Rx chains, the Noise Figure (NF) and insertion losses before the first low-noise amplifier (LNA) determines the overall system sensitivity. Finally, both chains can converge in a single antenna, or are quite close to one another, making isolation between them and the protection of the receiver section a key point.
Front End Models
Family Datasheet (PDF)| Part Number | Frequency (GHz) | Channels | Gain (dB) | Psat (dBm) | NF (dB) | More Info |
|---|---|---|---|---|---|---|
| ERZ-FE-0000-0600-RM | 0.03-6 (1.5-30 MHz) | 4 + 1 | 20 | 20 | 4 | Get a QuoteDatasheet |
| ERZ-FE-0013-0205-20-2-NS | 0.135-2.05 | 4 | 20 | 5 | 1.5 | Get a QuoteDatasheet |
| ERZ-FE-0020-4000-12 | 0.2-40 | 3 | 30 to 42 (equalized) | 14 | 6.5 | Get a QuoteDatasheet |
| ERZ-FE-0050-0200-18 | 0.5-2 | 1 | 18 | 19 | 7 | Get a QuoteDatasheet |
| ERZ-FE-0200-1800-12 | 2-18 | 1 | 12 | 13 | 9 | Get a QuoteDatasheet |
| ERZ-FE-0200-1800-21 | 2-18 | 1 | 24 | 22 | 9 | Get a QuoteDatasheet |
| ERZ-FE-0200-1800-IM | 2-18 0.5-2 | 4 | -6 to +10 (slope) | 7 | - | Get a QuoteDatasheet |
| ERZ-FE-0200-1800-x4 | 2-18 | 4 | 29 | 18 | 4.5 to 6.5 | Get a QuoteDatasheet |
| ERZ-FE-0900-1000-35 | 9-10 | 3 RX + 1 passive TX | 34 | 17 | 2.5 | Get a QuoteDatasheet |
| ERZ-FER-0100-1800-x2 | 1-18 | 2 | 27 | 24 | 9 | Get a QuoteDatasheet |
Typical values at 25 °C case temperature. Front ends are configurable: see the family datasheet for options.
RF Bands
- HF to Ka Band
- Multi-channel
- Up to 50 GHz
Key Technologies
- GaAs/GaN
- Suspended Substrate filters
- Fast digital switching
- Mechanical Waveguide Integration
Typical Uses
- Radar
- Satcom
- Telecom
- Electronic Defense
- New Space
