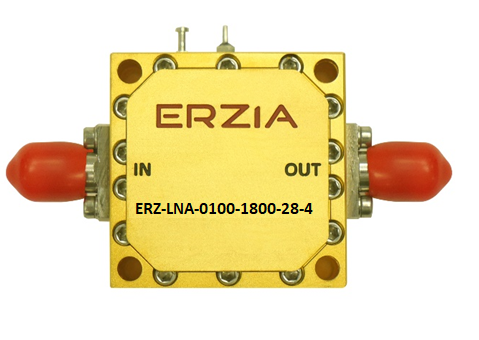

ERZ-LNA-0100-1800-28-4

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-0100-1800-28-4 is a wideband Low Noise Amplifier providing a gain of 27 dB and a noise figure of 3 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
1.0 to 18.0
Output Power (dBm):
19
Small Signal Gain (dB):
27
Noise Figure (dB):
3
Bias:
12 ±3 VDC
Package Dimensions:
30x30x17,5 mm
Connectors:
SMA Female
Frequency Start (GHz)
1.0
Frequency Stop (GHz)
18.0
Output Power (dBm)
19
Gain (dB)
27
Gain flatness (dB)
±1
Noise Figure (dB)
3
VSWR IN
1.2:1
VSWR OUT
1.2:1
Power supply (V)
12 ±3
Current (mA)
125
Power consumption (W)
1.5
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
22
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

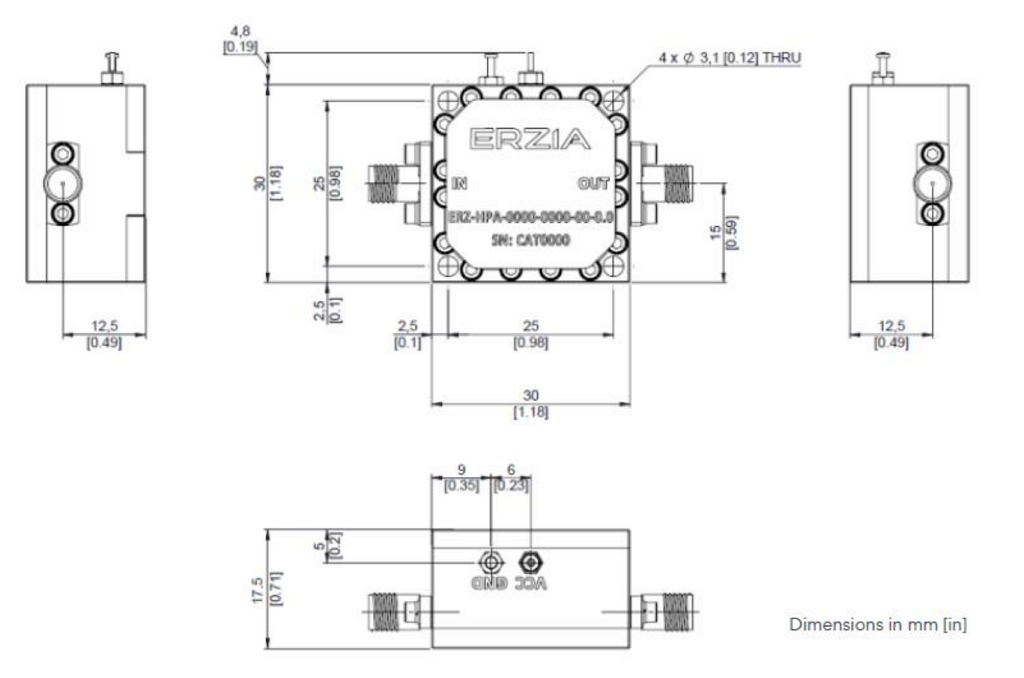

Outline Drawing:
Ordering Information:
