High-Reliability RF Amplifiers for Space & New Space (SSPA & LNA)
Radiation-tolerant, space-ready RF solutions engineered for the harshest orbital environments, backed by 24 years of hi-rel heritage and delivered at New Space speed.
1000+ Units Delivered
Proven performance across demanding RF applications.
20 Years of Experience
Two decades of experience in high-reliability RF designs.
50+ Space Programs Supported
Trusted in missions beyond Earth.
Discuss Your Mission Requirements
Amplifier Catalogue Search
Vacuum
Integrated de-pressurization structures enable the fastest de-pressurization profiles
Radiation Tolerance
Radiation tolerant circuitry rated to 30 Krad and 43 MeV-cm2/mg in key components
Outgassing
Materials selected to comply outgassing requirements
Reporting
Acceptance Test Report is delivered at three temperatures with additional analysis by request
Components Quality
All passive components meet or exceed the AEC-Q200 standard
Testing
Thermal screening and electrical testing before delivery with additional environmental tests and screenings available

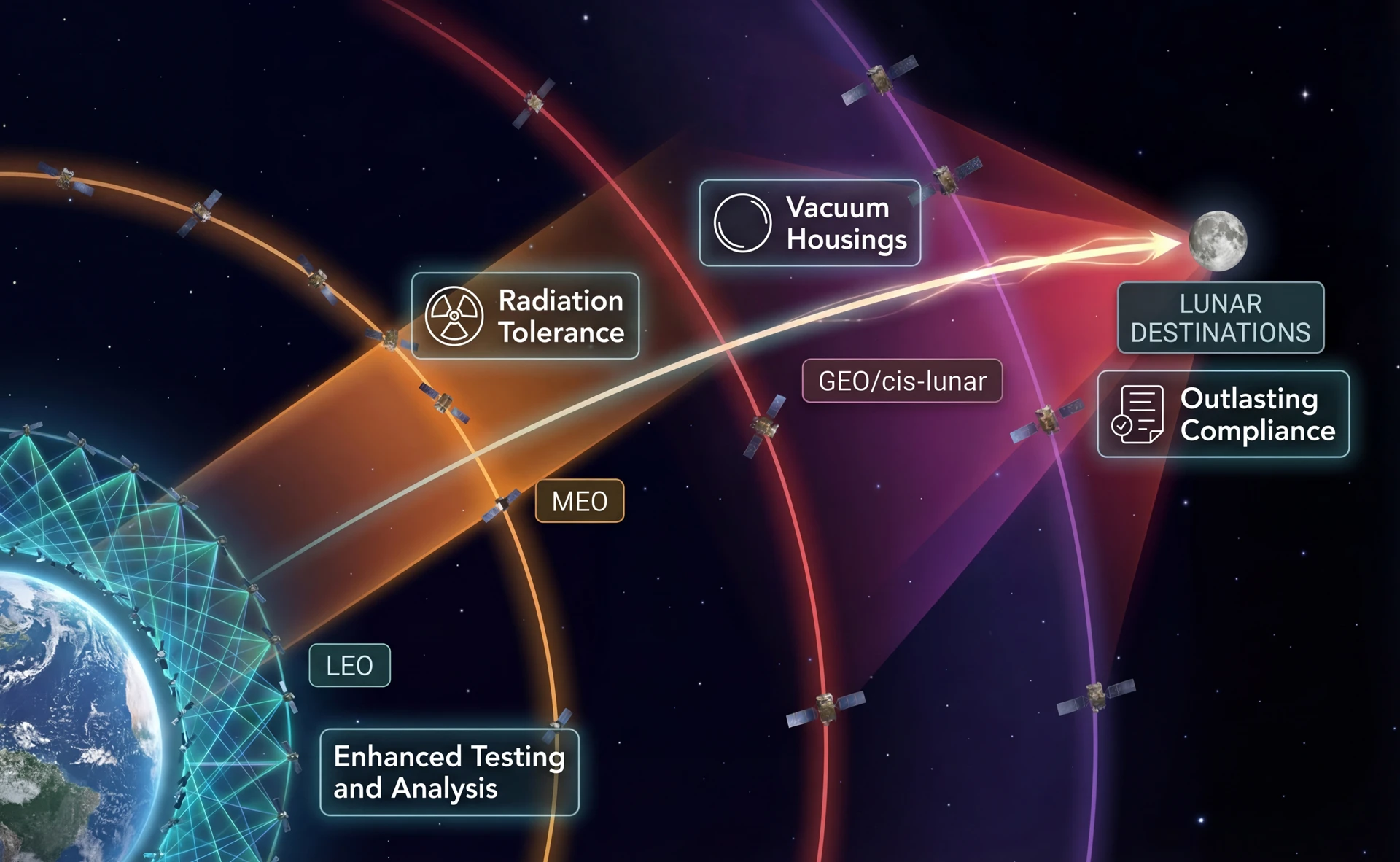

Our New Space COTS are engineered for the orbital environment - radiation tolerance up to 30 krad / 32 MeV, fast depressurization, outgassing-compliant materials, and thermal screening.
Built for Space & New Space
ERZIA develops RF amplifiers engineered to meet the performance and reliability requirements of modern space and New Space needs.
Payload RF amplification TT&C systems

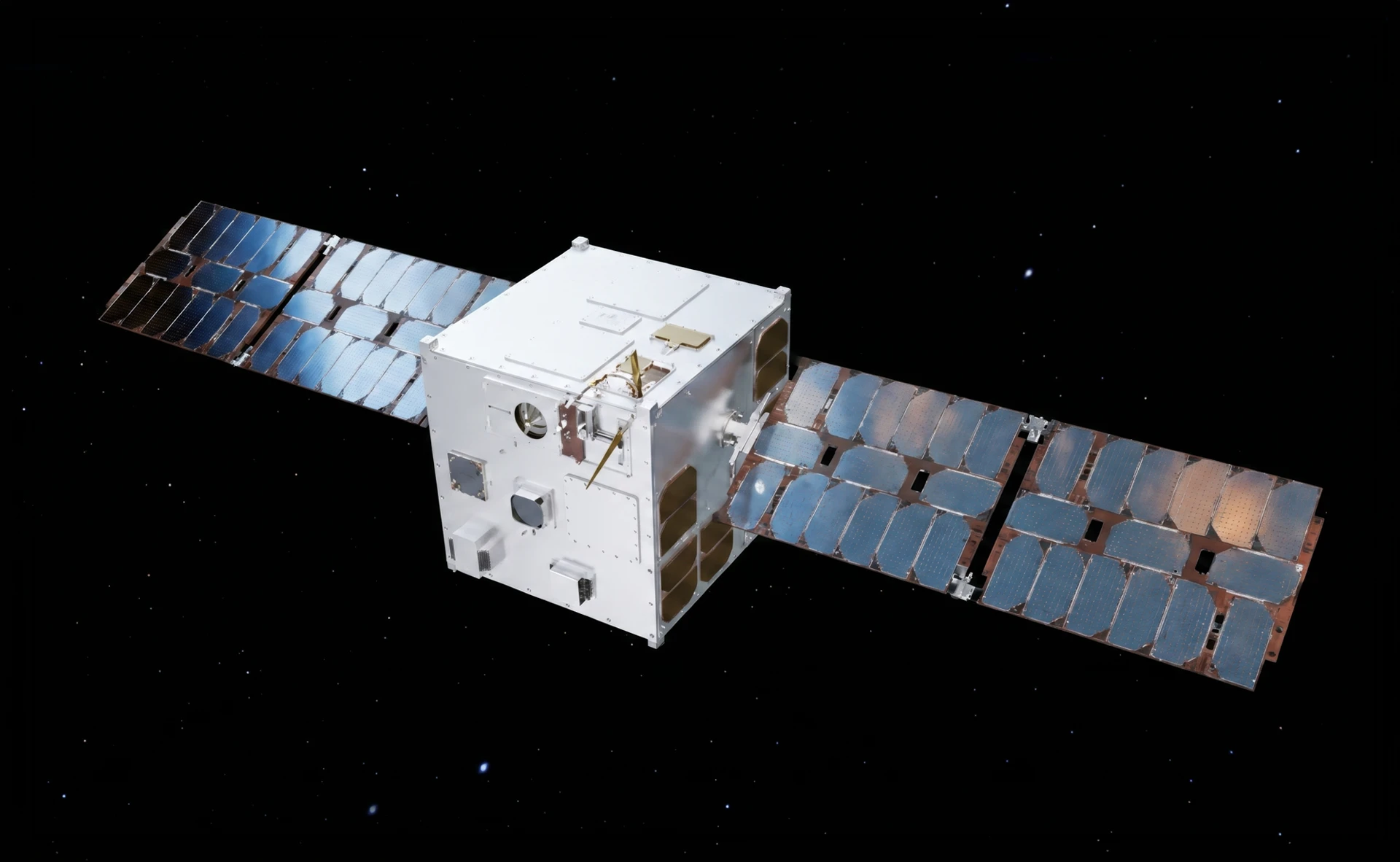

Satellite communication systems for LEO and deep space missions
Custom RF assemblies for space platforms
High Performance RF for Mission-Critical Systems
Low Noise Amplifiers (LNA):
- Exceptional noise figure performance
- Stable gain across mission lifetime
- Wide frequency coverage
- Custom mechanical integration options

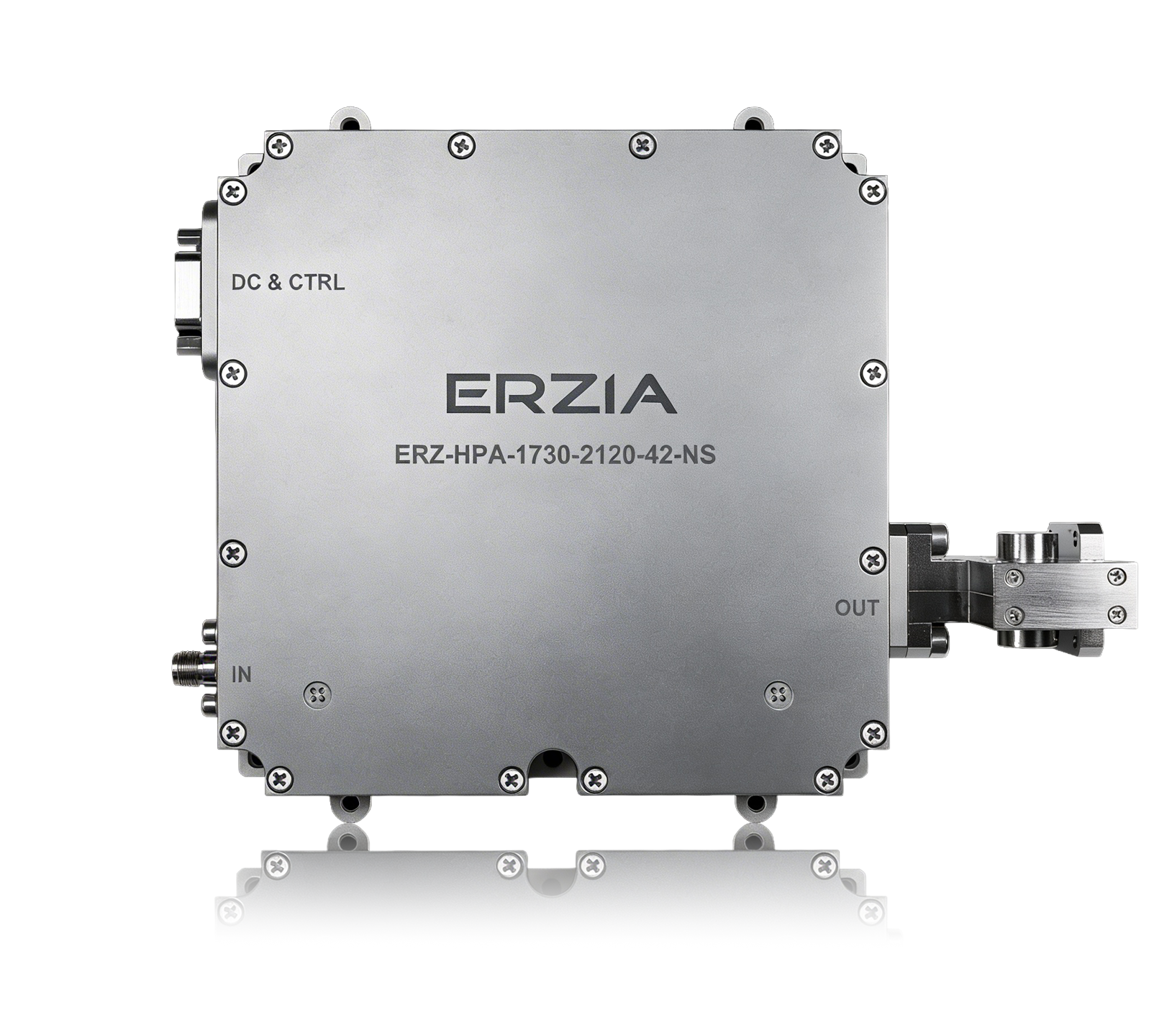

Solid-State Power Amplifiers (SSPA):
- Ka-band, Ku-band, X-band options
- High efficiency GaN technology
- Optimized linearity and power density
- Compact, lightweight architecture
Leading Edge, Highly Reliable Engineering
Erzia combines advanced RF design with strict quality control processes to deliver space-ready hardware.
- Rigorous environmental testing
- Reliability-focused design methodology
- High-reliability component selection
- Custom modules & assemblies integration capability
Designed for performance. Engineered for longevity.
Why ERZIA for Space Programs?

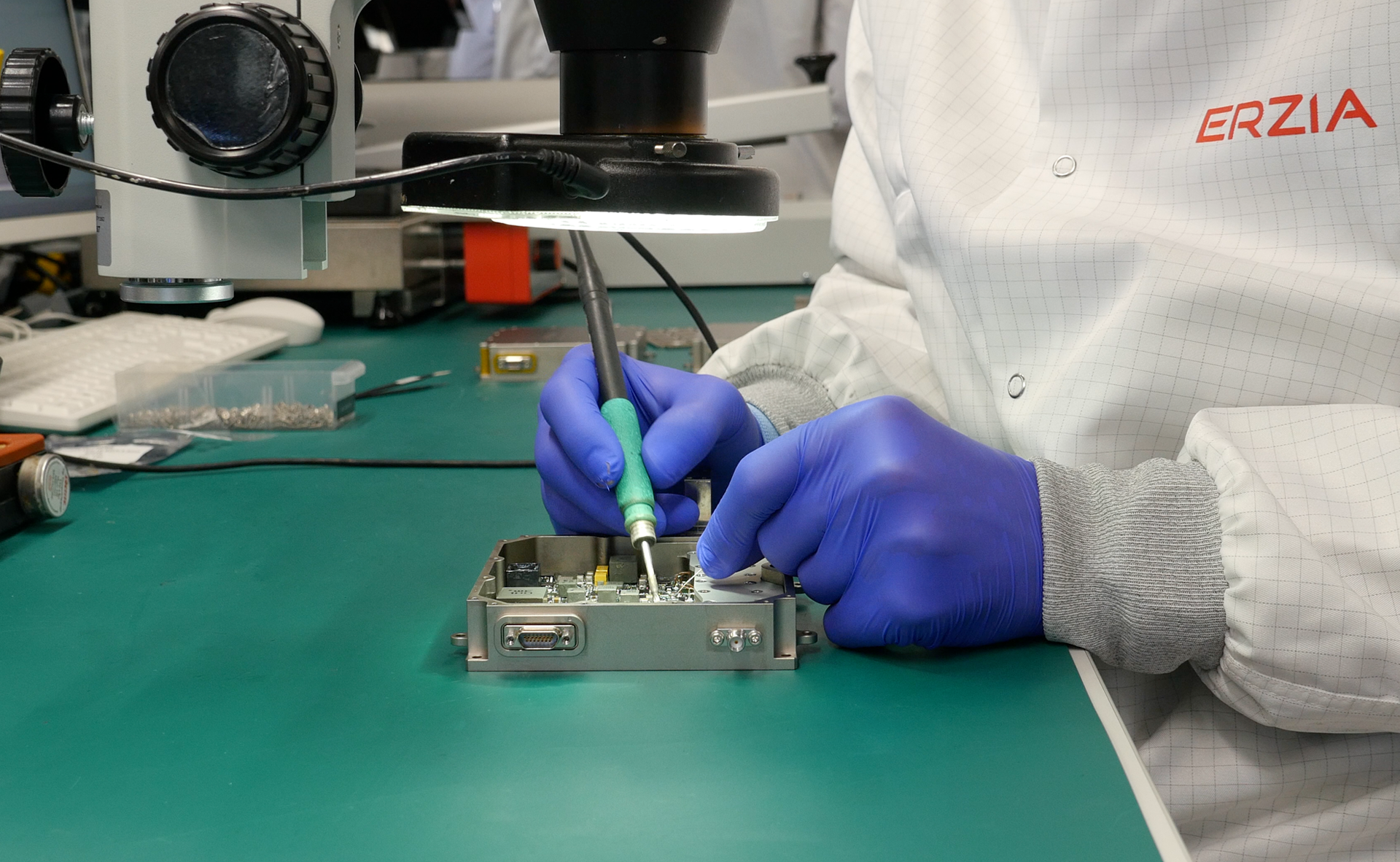

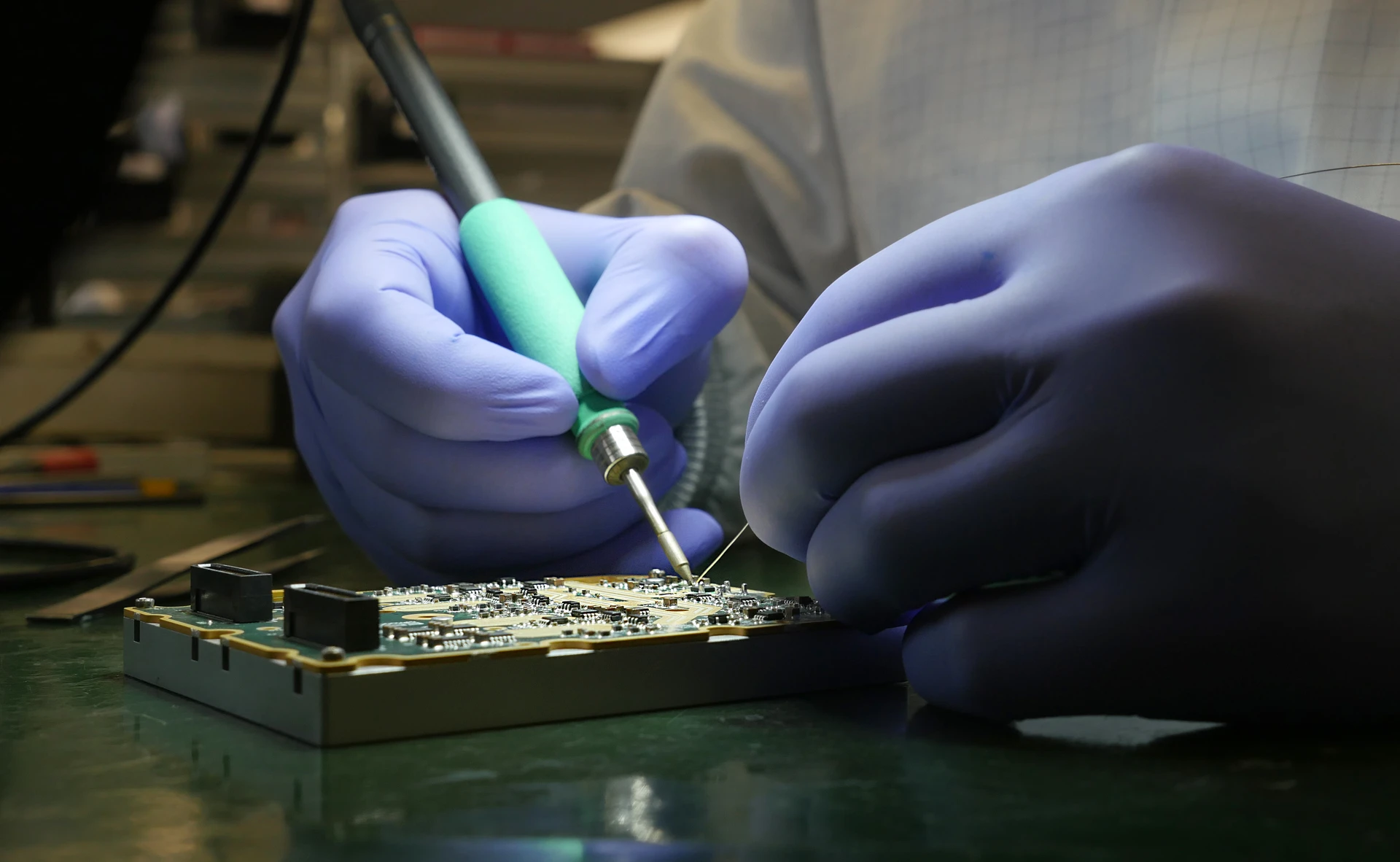

We combine deep RF expertise with in-house precision manufacturing to deliver high-reliability performance - fast.
20+ Years RF expertise
Space & Defense Programs
In-House RF Design & Testing
Lifecycle Technical Support
End-to-end Engineering Support
Agile Newspace Development
Discover Our New Space COTS
HPA COTS
| Part Number | Freq Start (GHz) | Freq Stop (GHz) | Gain (dB) | Pout (dBm) | More Info |
|---|---|---|---|---|---|
| ERZ-HPA-3750-4250-39-NS | 37.5 | 42.5 | 49 | 39 | Get a QuoteDatasheet |
| ERZ-HPA-0800-1100-43-NS | 8 | 11 | 42 | 43.5 | Get a QuoteDatasheet |
| ERZ-HPA-1730-2120-42-NS | 17.3 | 21.2 | 40 | 43 | Get a QuoteDatasheet |
| ERZ-HPA-0100-1800-37-NS | 1 | 18 | 37 | 36 | Get a QuoteDatasheet |
| ERZ-HPA-0600-1800-40-E-NS | 6 | 18 | 46 | 41 | Get a QuoteDatasheet |
| ERZ-HPA-2000-4000-39-NS | 20 | 40 | 52 | 39 | Get a QuoteDatasheet |
| ERZ-HPA-0200-0400-30-NS | 2 | 4 | 39 | 30 | Get a QuoteDatasheet |
| ERZ-HPA-0200-0600-43-NS | 2 | 6 | 44 | 43 | Get a QuoteDatasheet |
| ERZ-HPA-0002-0600-42-NS | 0.02 | 6 | 50 | 42 | Get a QuoteDatasheet |
| ERZ-HPA-1730-2120-44-NS | 17.3 | 21.2 | 50 | 43.5 | Get a QuoteDatasheet |
LNA COTS
| Part Number | Freq Start (GHz) | Freq Stop (GHz) | Gain (dB) | Pout (dBm) | Noise Figure (dB) | More Info |
|---|---|---|---|---|---|---|
| ERZ-LNA-2000-3100-31-1.5-NS | 20 | 31 | 31 | 10 | 1.6 | Get a QuoteDatasheet |
| ERZ-LNA-1700-2400-25-2.5-NS | 17 | 24 | 25 | 14 | 2.5 | Get a QuoteDatasheet |
| ERZ-LNA-0700-1300-51-1-NS | 7 | 13 | 51 | 14 | 1.2 | Get a QuoteDatasheet |
| ERZ-LNA-2100-2700-25-2-NS | 21 | 27 | 25 | 15 | 2.7 | Get a QuoteDatasheet |
| ERZ-LNA-0400-0800-28-1-NS | 4 | 8 | 28 | 5.5 | 1 | Get a QuoteDatasheet |
| ERZ-LNA-0070-0300-20-0.7-NS | 0.7 | 3 | 20 | 21 | 0.7 | Get a QuoteDatasheet |
| ERZ-LNA-0100-0310-30-2-NS | 1 | 3.1 | 30 | 19 | 1.6 | Get a QuoteDatasheet |
| ERZ-LNA-0700-1300-21-1-NS | 7 | 13 | 24 | 11 | 1.2 | Get a QuoteDatasheet |
| ERZ-LNA-2500-4300-33-2-NS | 25 | 43 | 28 | 4 | 2 | Get a QuoteDatasheet |
Featured New Space Video
Explore our video showcasing ERZIA's RF and microwave technologies for New Space applications.
Case Study

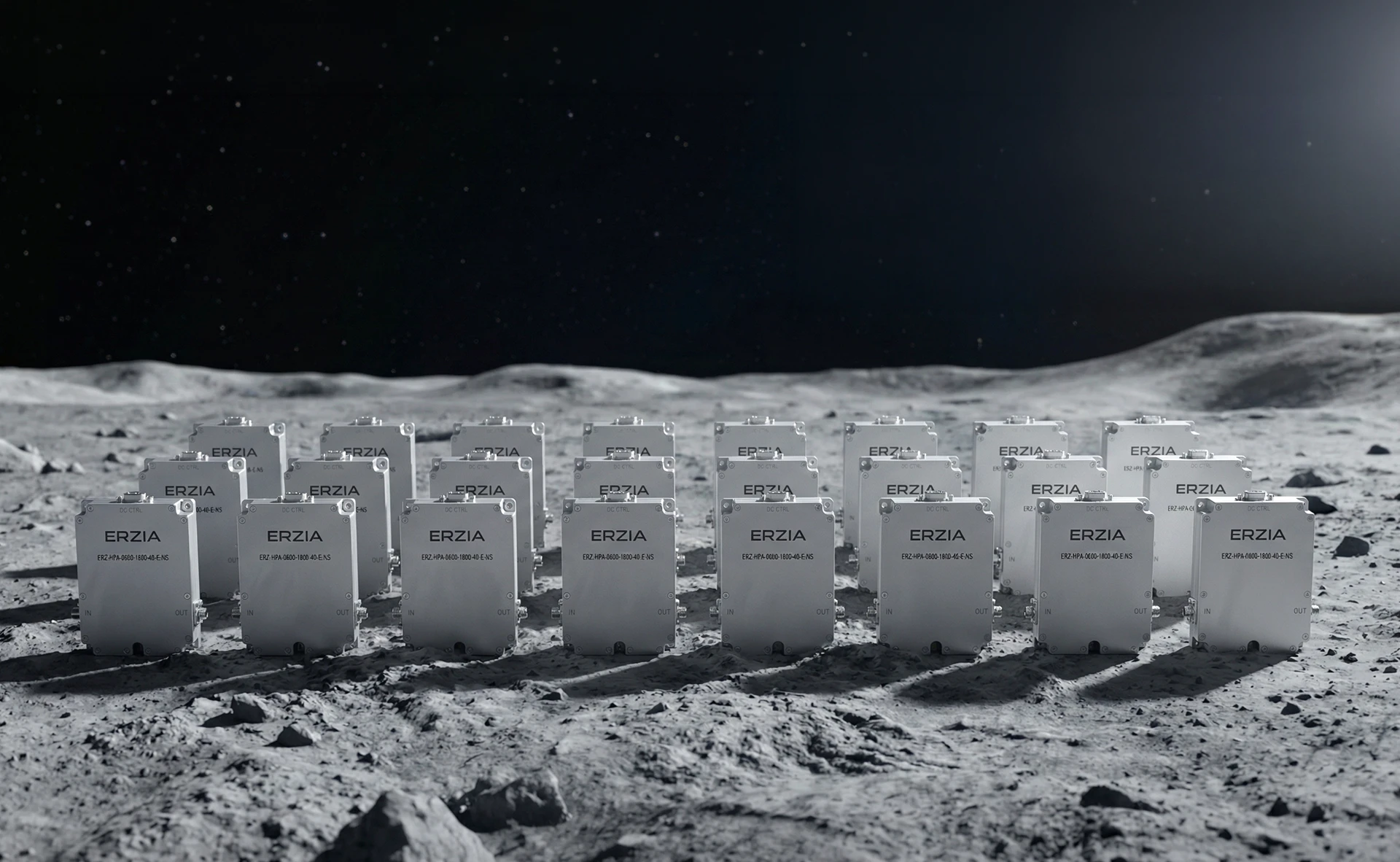

ERZIA Completes Delivery of 216 New Space RF Amplifiers for a LEO Constellation in Just 24 Weeks
ERZIA has been working in challenging space missions and aerospace programs since 2005. We are involved in the design, qualification and production of leading edge, highly reliable mission critical RF and microwave amplifiers, custom electronic modules and integrated assemblies for a wide number of space based programs and applications.
Download our Product Guide
ERZIA has been working in challenging space missions and aerospace programs since 2005. We are involved in the design, qualification and production of leading edge, highly reliable mission critical RF and microwave amplifiers, custom electronic modules and integrated assemblies for a wide number of space based programs and applications.
Need a Space-Ready RF Amplifier?
Talk directly with an ERZIA RF specialist and get technical feedback on your requirements.
