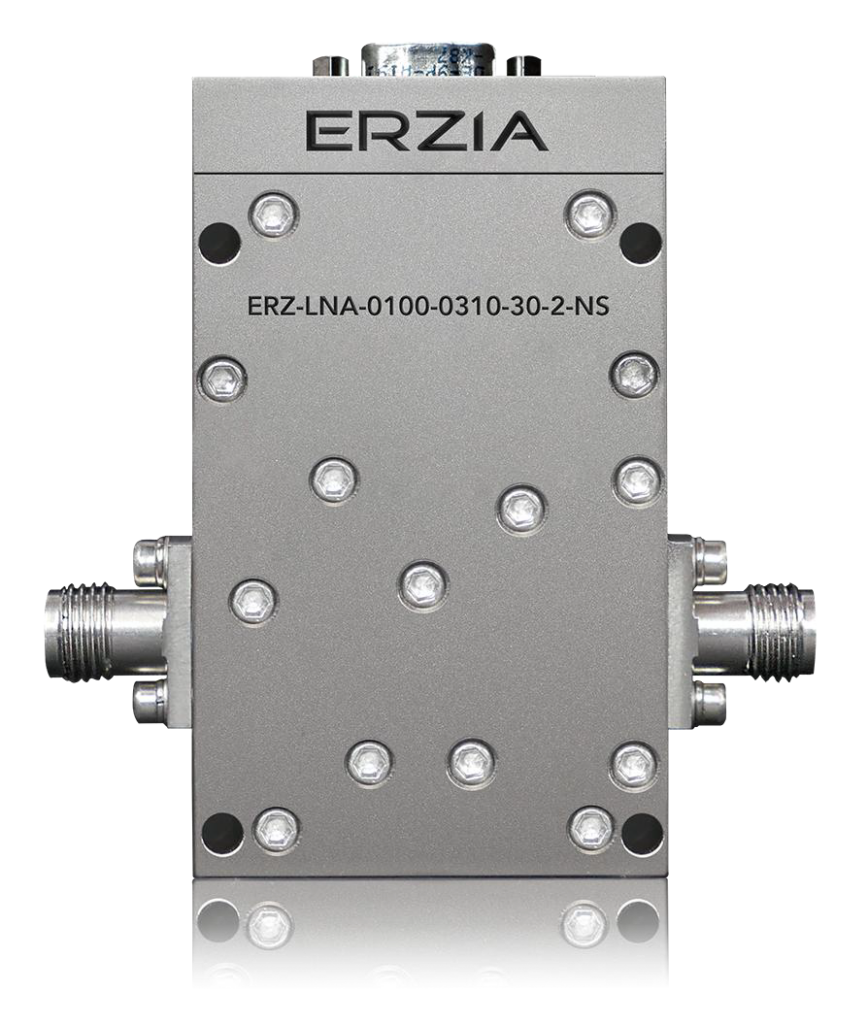

ERZ-LNA-0100-0310-30-2-NS
Low Noise Amplifier 1 to 3.1GHz Noise Figure 1.6dB, Gain 30d
Description
The ERZ-LNA-0100-0310-30-2-NS is a microwave low noise amplifier based in GaAs, specially prepared for New Space applications. It is based on its comercial grade equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.
Download
Key Features
- Frequency Range: 1 to 3.1 GHz
- Typical values: Noise Figure 1.6 dB, Gain 30 dB,
- RF connectors (I/O): SMA Female
- Micro-D Sub-9 for control and DC connection
Specifications
| Parameter | Value | Units | ||
|---|---|---|---|---|
| Min | Typ | Max | ||
| Frequency | 1.0 | – | 3.1 | GHz |
| Output Power (P1dB) |
17 | 19 | 21 | dBm |
| Small Signal Gain | 29 | 30 | 32 | dB |
| Gain Flatness | – | ±0.5 | – | dB |
| Noise Figure | 1.5 | 1.6 | 2.0 | dB |
| VSWR input | 1.7:1 | 1.8:1 | 2.0:1 | – |
| VSWR output | 1.3:1 | 1.4:1 | 1.8:1 | – |
| DC Voltage | 10 | 15 | 20 | V |
| Power Consumption |
– | 3 | – | W |
| RF Connectors | SMA Female IN/OUT | |||
Specifications at a case temperature of 25°C

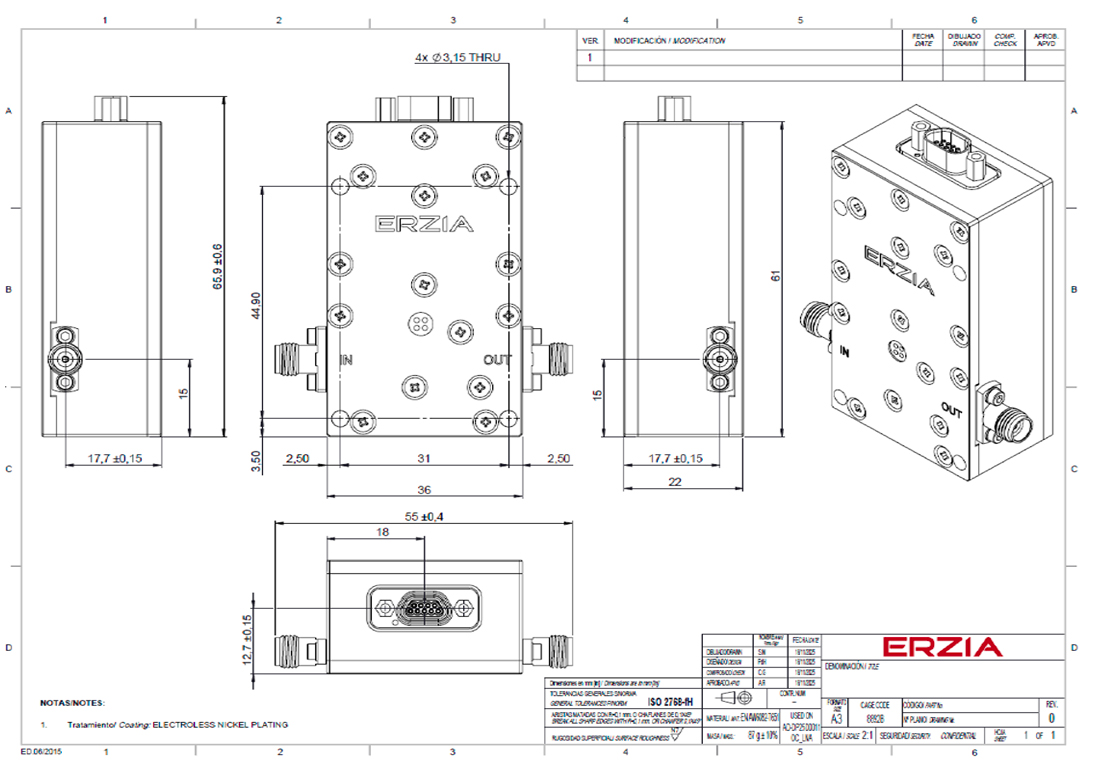

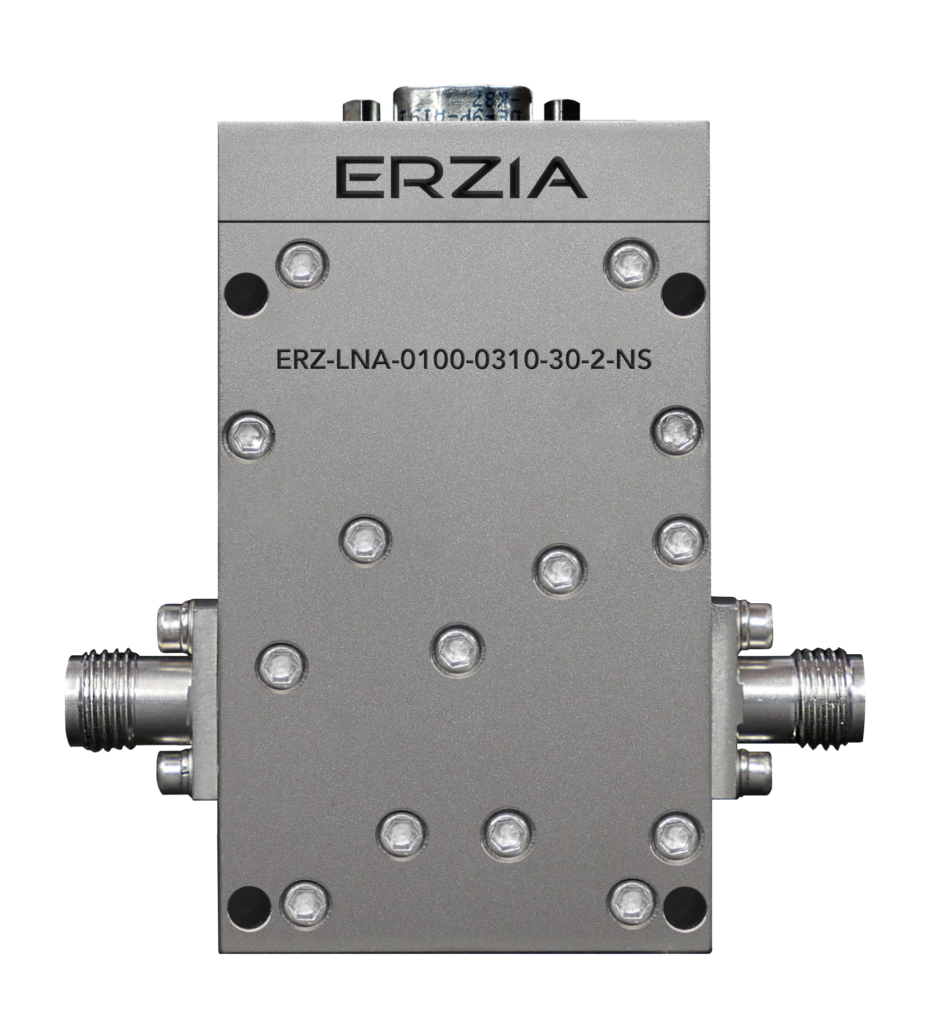

Mechanics and Housing
