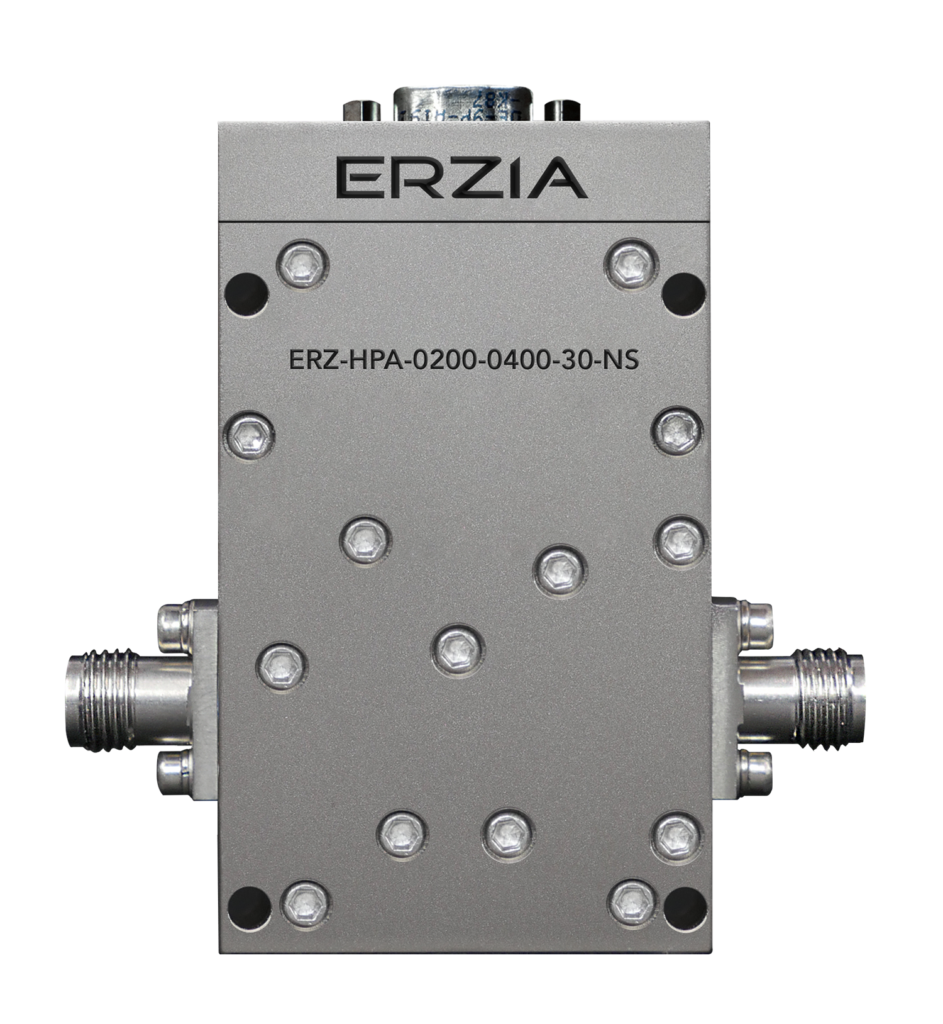

ERZ-HPA-0200-0400-30-NS

High Power Amplifiers 2 to 4GHz, Gain 38dB, Psat 33dBm

ERZ-HPA-0200-0400-30-NS High Power Amplifiers 2 to 4GHz, Gain 38dB, Psat 33dBm

Get a quote

Description

The ERZ-HPA-0200-0400-30-NS is a microwave power amplifier based in GaN, specially prepared for New Space applications. It is based on its COTS equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.

Download

PDF IconERZ-HPA-0200-0400-30-NS

Key Features

  • Frequency Range: 2 to 4 GHz
  • Typical values: Gain 39dB, Psat 33dBm
  • RF connectors (I/O): SMA Female IN/OUT
  • Sub-D for control and DC connection

Specifications

Frequency Start (GHz): 2
Frequency Stop (GHz): 4
Output Power (dBm): 30
Gain (dB): 39
Gain flatness (dB): ±1
Noise Figure (dB): 1.5
VSWR IN: 1.5:1
VSWR OUT: 1.1:1
Power consumption (W): 7
Max. Input DC (no damage) (V): 32

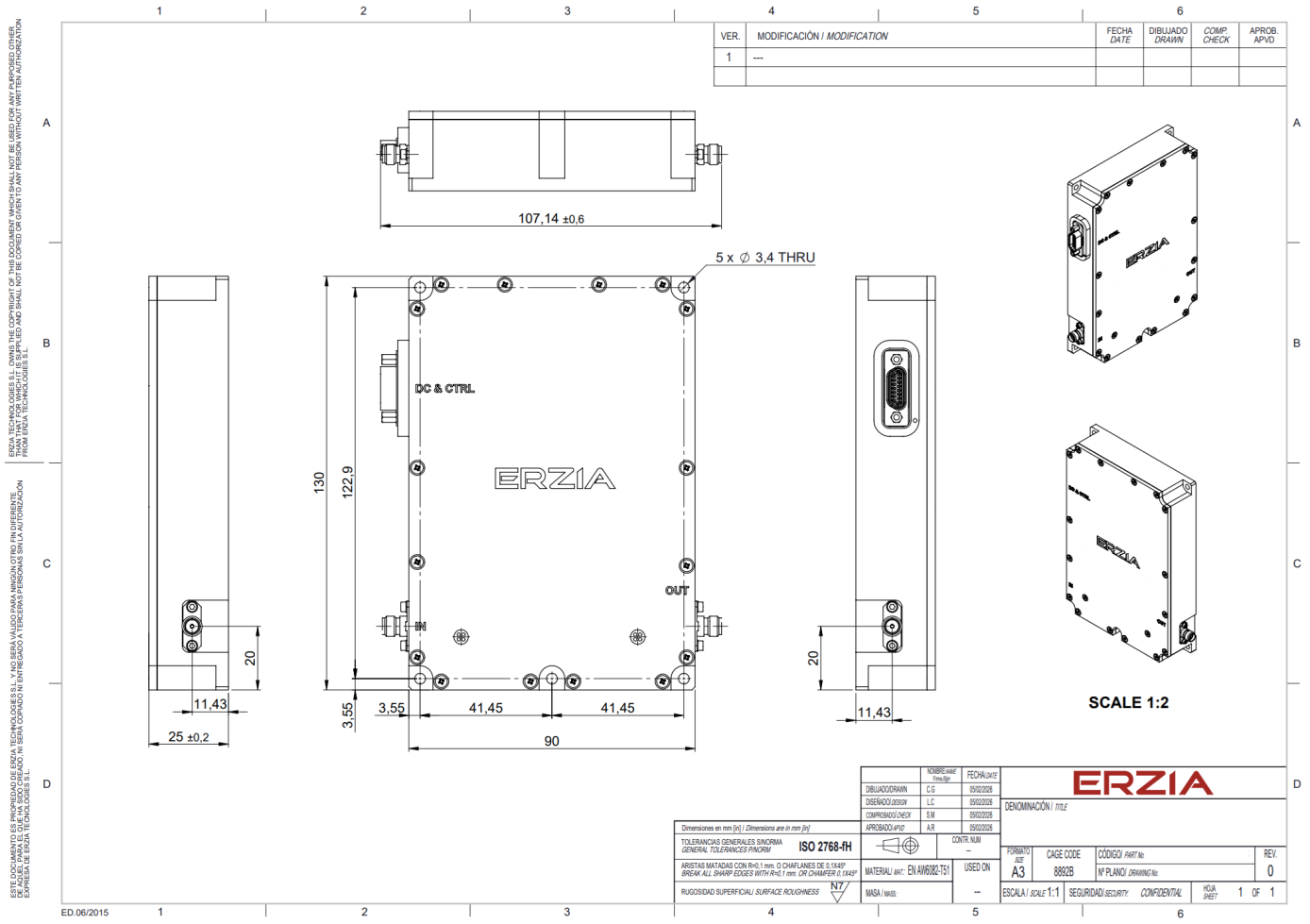

Mechanics and Housing
