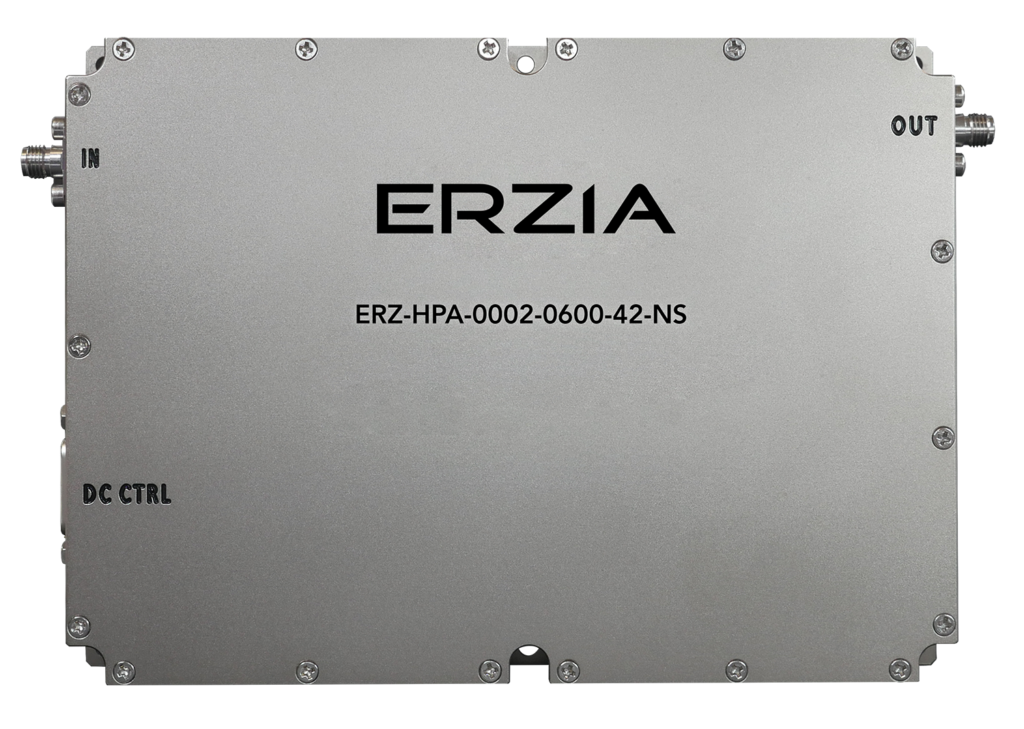

ERZ-HPA-0002-0600-42-NS

High Power Amplifiers 20 MHz to 6GHz Gain 50dB, Psat 42dBm

ERZ-HPA-0002-0600-42-NS High Power Amplifiers 20 MHz to 6GHz Gain 50dB, Psat 42dBm

Get a quote

Description

The ERZ-HPA-0002-0600-42-NS is a microwave power amplifier based in GaN, specially prepared for New Space applications. It is based on its COTS equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.

Download

PDF IconERZ-HPA-0002-0600-42-NS-1

Key Features

  • Frequency Range: 0.02 to 6 GHz
  • Typical values: Gain 50dB, Psat 42dBm
  • RF connectors (I/O): SMA Female IN/OUT
  • Sub-D for control and DC connection

Specifications

Frequency Start (GHz): 0.02
Frequency Stop (GHz): 6
Output Power (dBm): 42
Gain (dB): 50
Gain flatness (dB): ±3
VSWR IN: 1.5:1
VSWR OUT: 2.0:1
Power consumption (W): 110

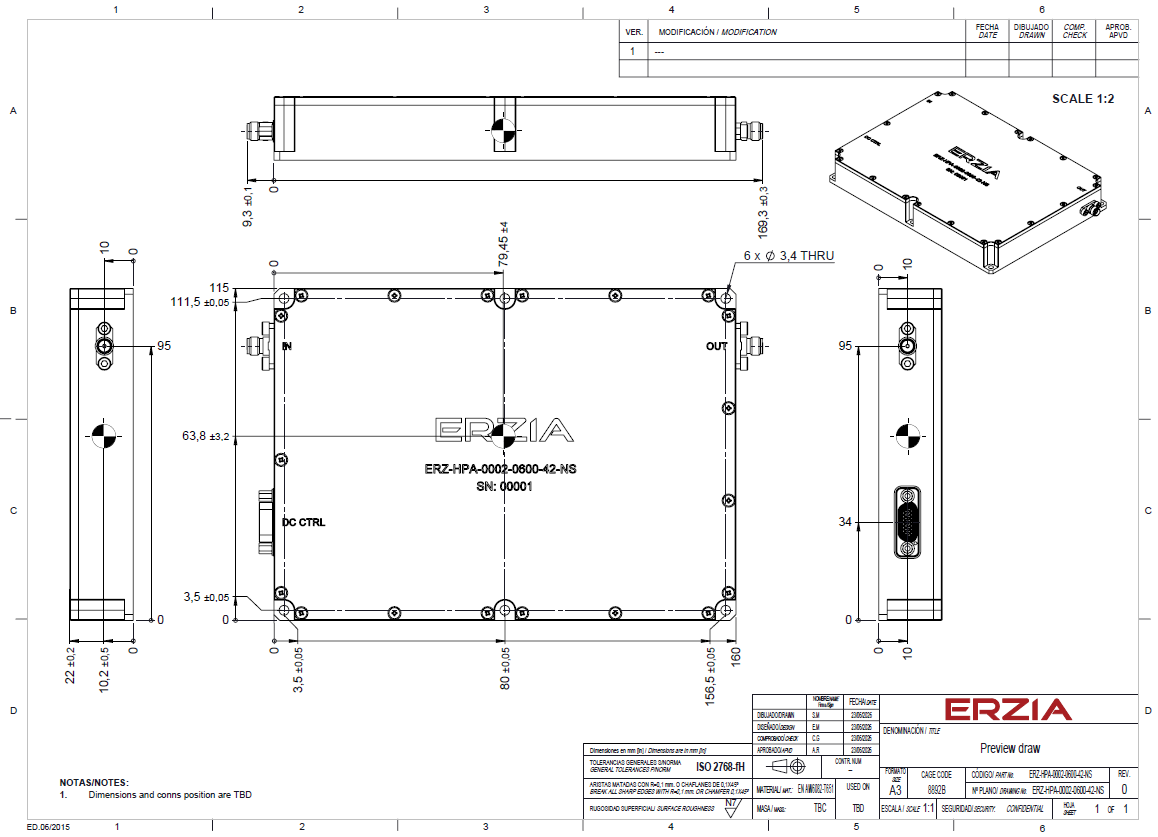

Mechanics and Housing
