ERZ-HPA-2000-4000-39-NS

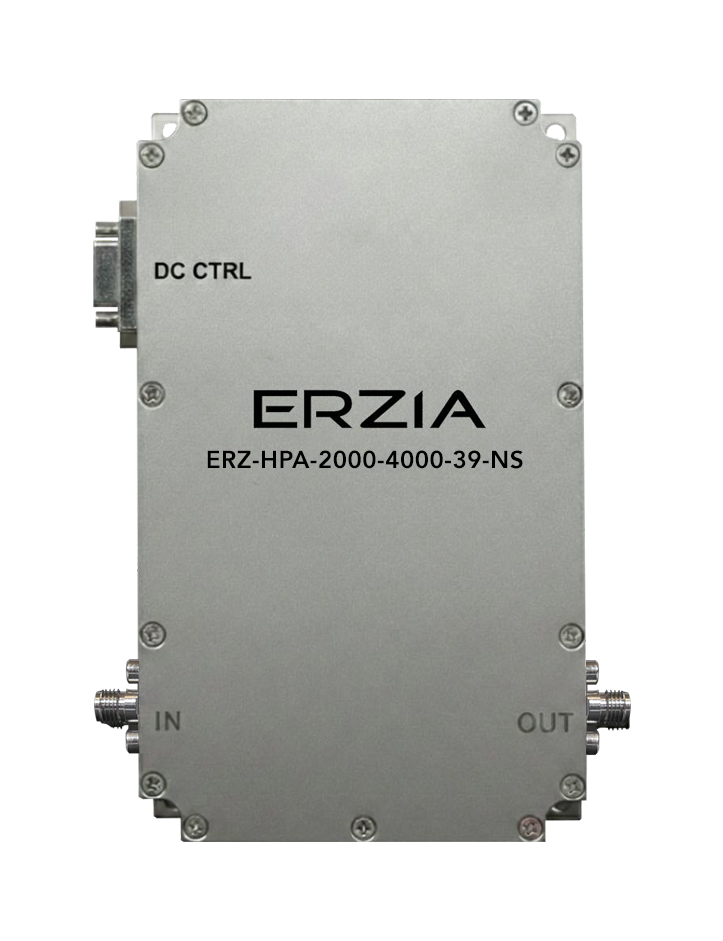

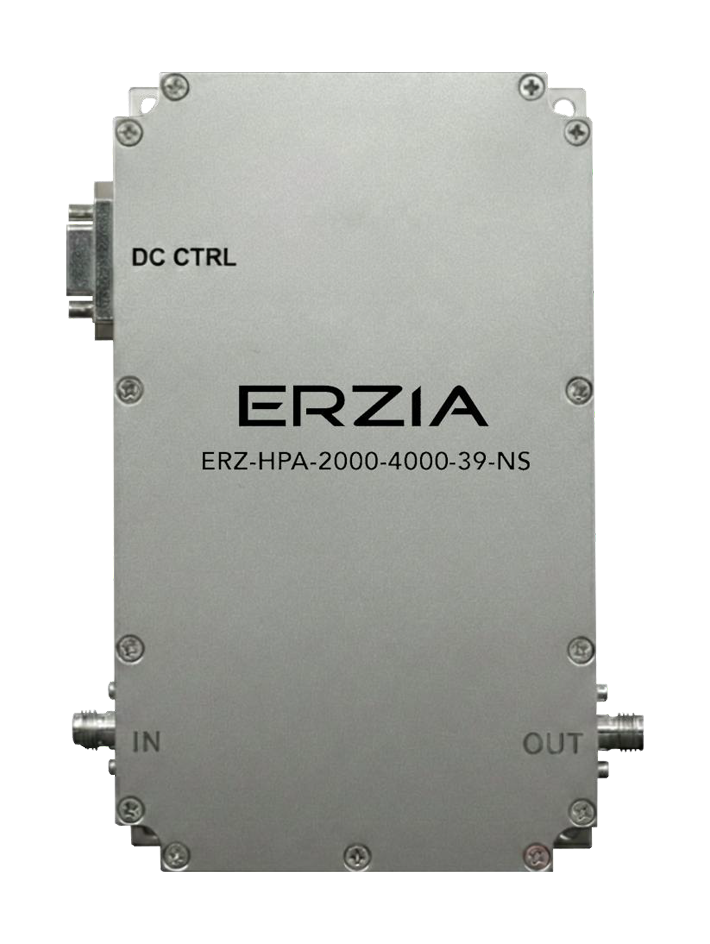

High Power Amplifiers 20 to 40GHz, Gain 52dB, Psat 39dBm
Description
The ERZ-HPA-2000-4000-39-NS is a microwave power amplifier based on GaN, specially prepared for New Space applications. It is based on its comercial grade equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.
Download
Key Features
- Frequency Range: 20 to 40 GHz
- Typical values: Gain 52dB, Psat 39dBm
- RF connectors (I/O): 2.92 mm (F)
- MicroSub-D for control and DC connection
Specifications
| Parameter | Value | Units | ||
|---|---|---|---|---|
| Min | Typ | Max | ||
| Frequency | 20 | – | 40 | GHz |
| Output Power (Psat) |
37.5 | 39 | 41 | dBm |
| Small Signal Gain | 47 | 52 | 57 | dB |
| Gain Flatness | – | ±2.5 | – | dB |
| VSWR input | – | 2.0:1 | 2.5:1 | – |
| VSWR output | – | 2.0:1 | 3.0:1 | – |
| DC Voltage | 24 | 28 | 32 | V |
| Power Consumption @PSat |
– | 95 | – | W |
| RF Connectors | 2.92 mm (F) IN/ OUT | |||
Specifications at a case temperature of 25°C

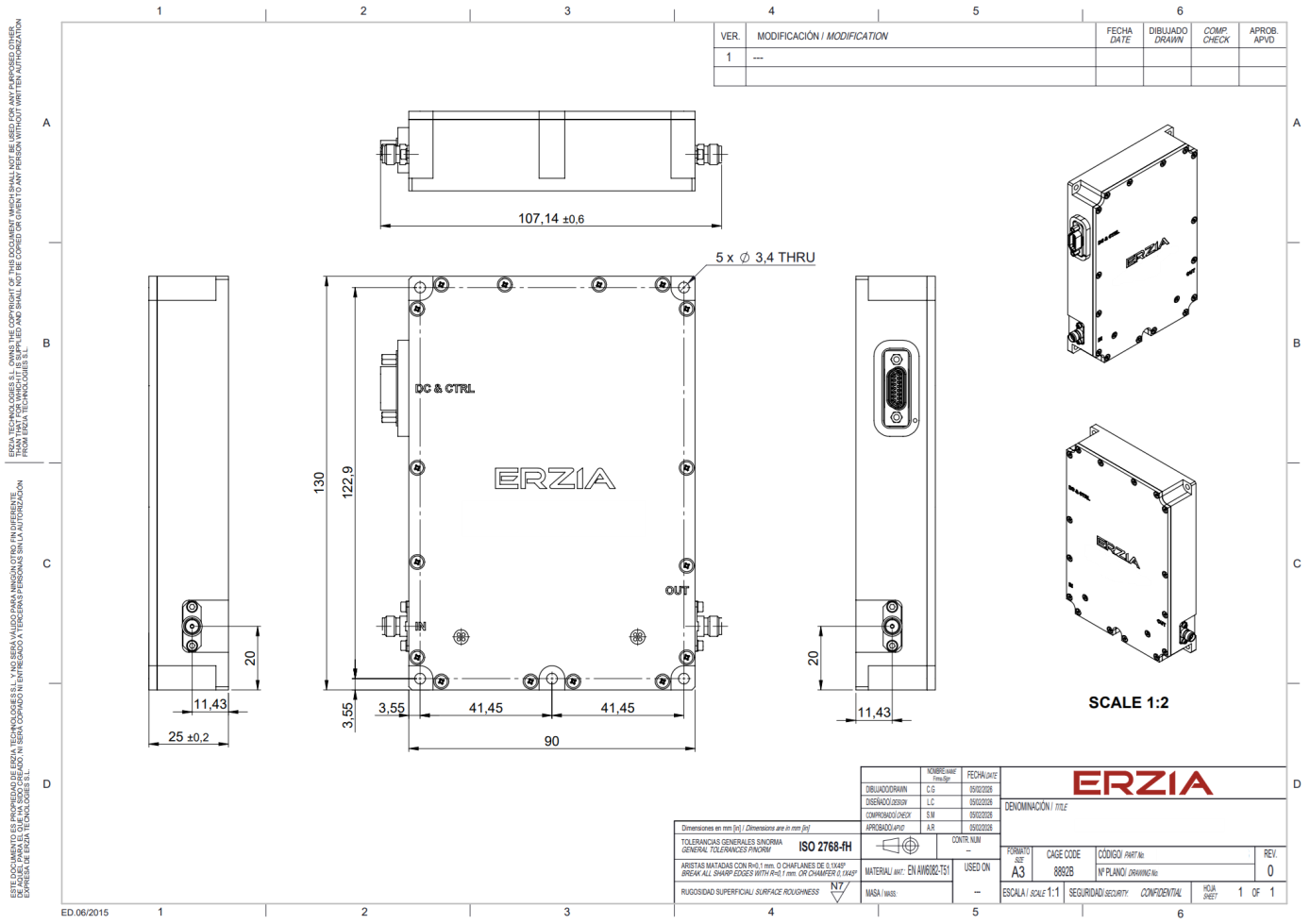

Mechanics and Housing
