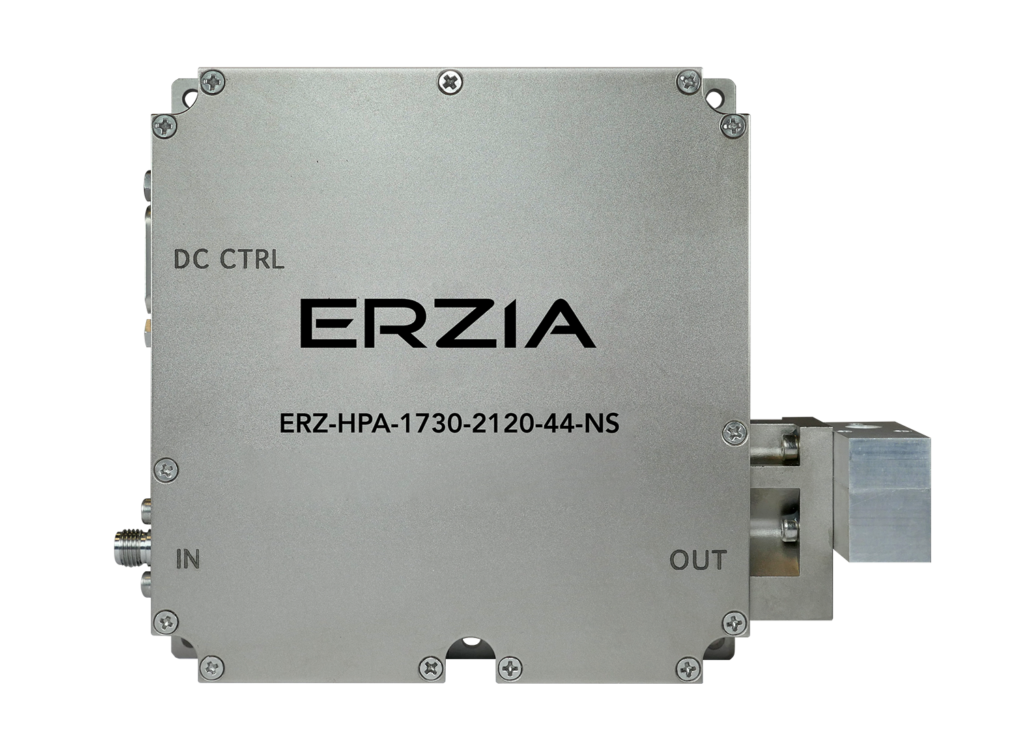

ERZ-HPA-1730-2120-44-NS
High Power Amplifiers 17.3 to 21.2GHz, Gain 50dB, Psat 43.5dBm
Description
The ERZ-HPA-0200-0600-43-NS is a microwave power amplifier based in GaN, specially prepared for New Space applications. It is based on its COTS equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.
Download
Key Features
- Frequency Range: 17.3 to 21.2 GHz
- Typical values: Gain 50dB, Psat 43.5dBm
- RF connectors (I/O): 2.92 mm (F) / WR42
- Micro DB15 (MDM) for control and DC connection
Specifications
| Parameter | Value | Units | ||
|---|---|---|---|---|
| Min | Typ | Max | ||
| Frequency | 17.3 | – | 21.2 | GHz |
| Output Power (Psat) |
42 | 43.5 | dBm | |
| Small Signal Gain | 46 | 50 | 55 | dB |
| Gain Flatness | – | ±4 | – | dB |
| VSWR input | 1.2:1 | 1.8:1 | 2.5:1 | – |
| VSWR output | 1.0:1 | 1.2:1 | 1.5:1 | – |
| DC Voltage | 24 | 28 | 32 | V |
| Power Consumption @PSat |
– | 160 | 170 | W |
| RF Connectors | 2.92 mm (F) IN/ WR42 OUT | |||
Specifications at a case temperature of 25°C

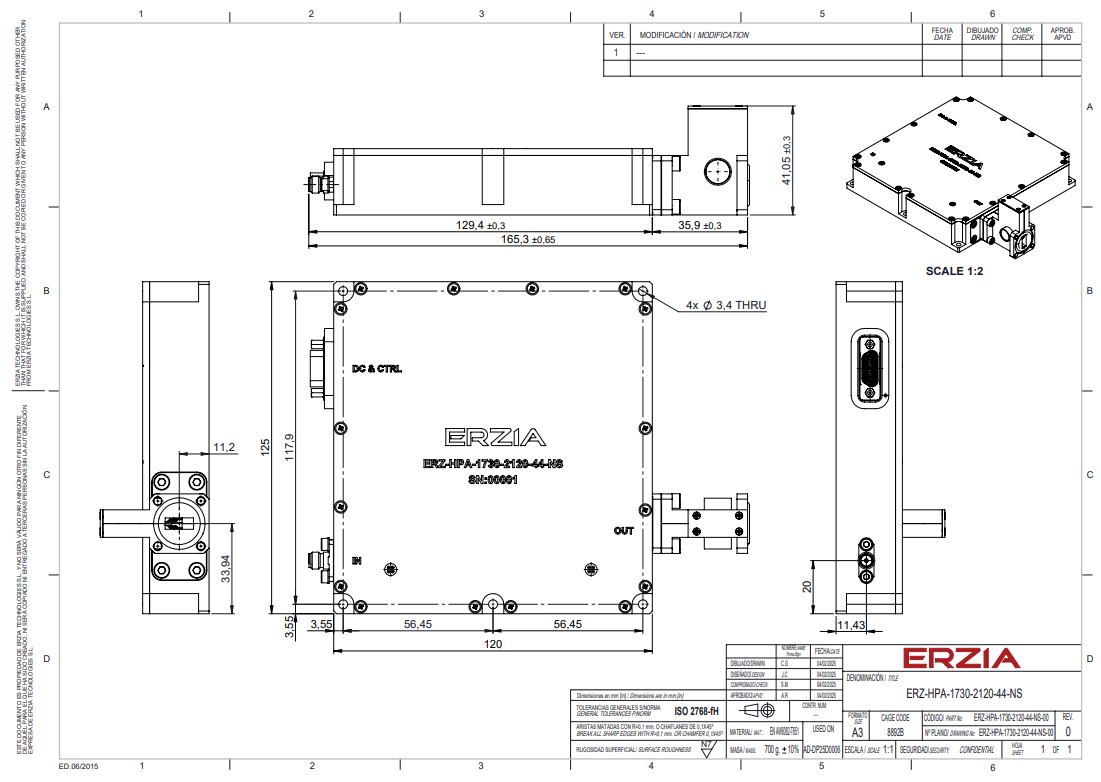

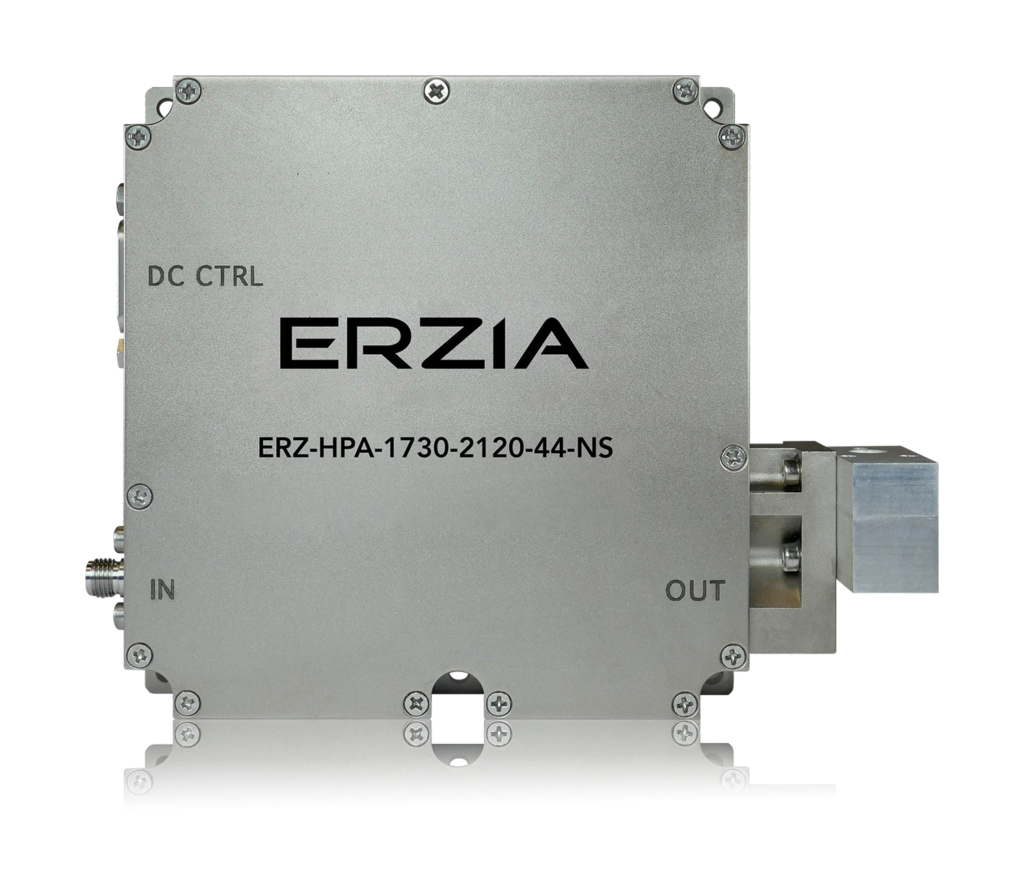

Mechanics and Housing
