ERZ-LNA-2000-3100-31-1.5-NS
Low Noise Amplifiers 20 to 31GHz, Noise Figure 1.6 dB, Gain 31dB

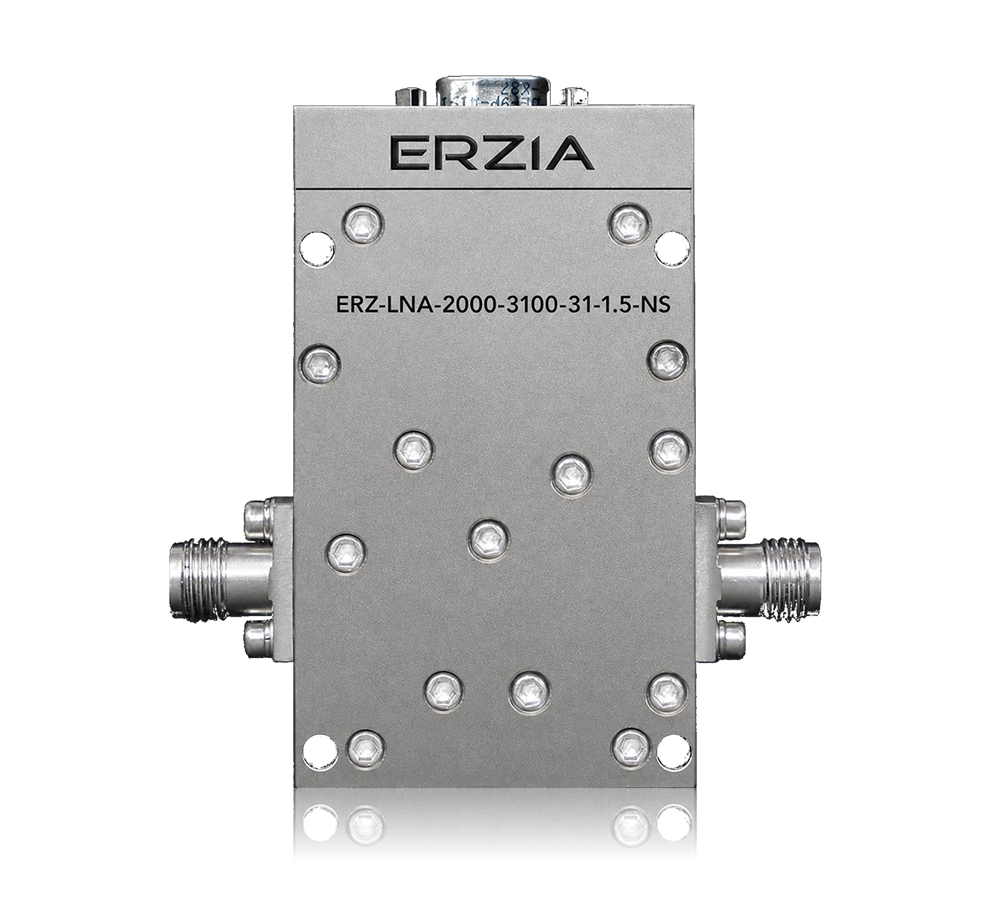

Description
The ERZ-LNA-2000-3100-31-1.5-NS is a microwave low noise amplifier based in GaAs,
specially prepared for New Space applications. It is based on its comercial grade
equivalent , maintaining electrical performance and including key features ideal for
new space applications, including radiation tolerance, performance in vacuum and
outgassing compatibility, among others.
Download
Key Features
- Frequency Range: 20 to 31 GHz
- Typical values: Noise Figure 1.6 dB, Gain 31 dB,
- RF connectors (I/O): SMA Female
- Sub-D for control and DC connection for control and DC connection
Specifications
| Parameter | Value | Units | ||
|---|---|---|---|---|
| Min | Typ | Max | ||
| Frequency | 20 | – | 31 | GHz |
| Output Power (P1dB) |
8 | 10 | 15 | dBm |
| Small Signal Gain | 28 | 31 | 35 | dB |
| Gain Flatness | – | ±1 | – | dB |
| Noise Figure | – | 1.6 | 2.7 | dB |
| VSWR input | 1.2:1 | 1.5:1 | 2.5:1 | – |
| VSWR output | 1.2:1 | 1.8:1 | 2.2:1 | – |
| DC Voltage | 9 | 12 | 15 | V |
| Power Consumption | – | 0.8 | W | |
| RF Connectors | SMA Female IN/OUT | |||
Specifications at a case temperature of 25°C

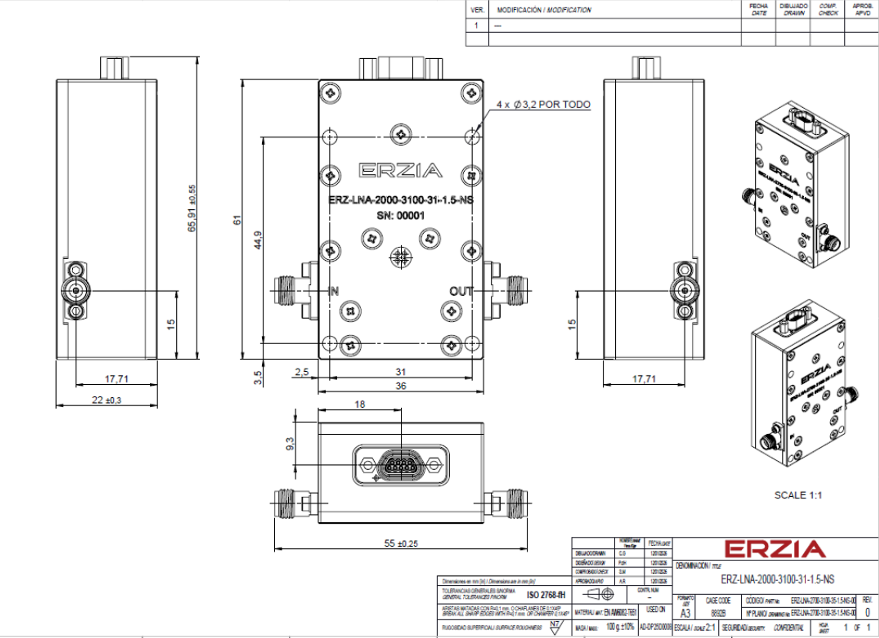

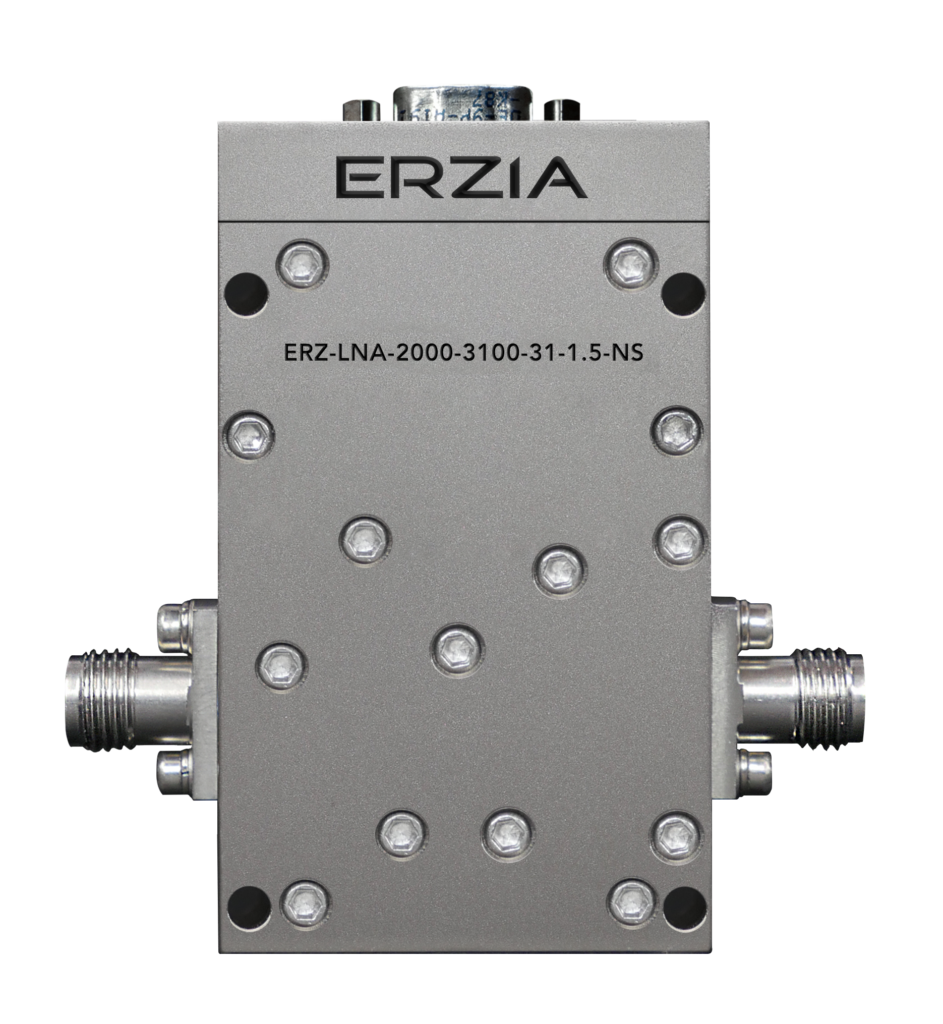

Mechanics and Housing
