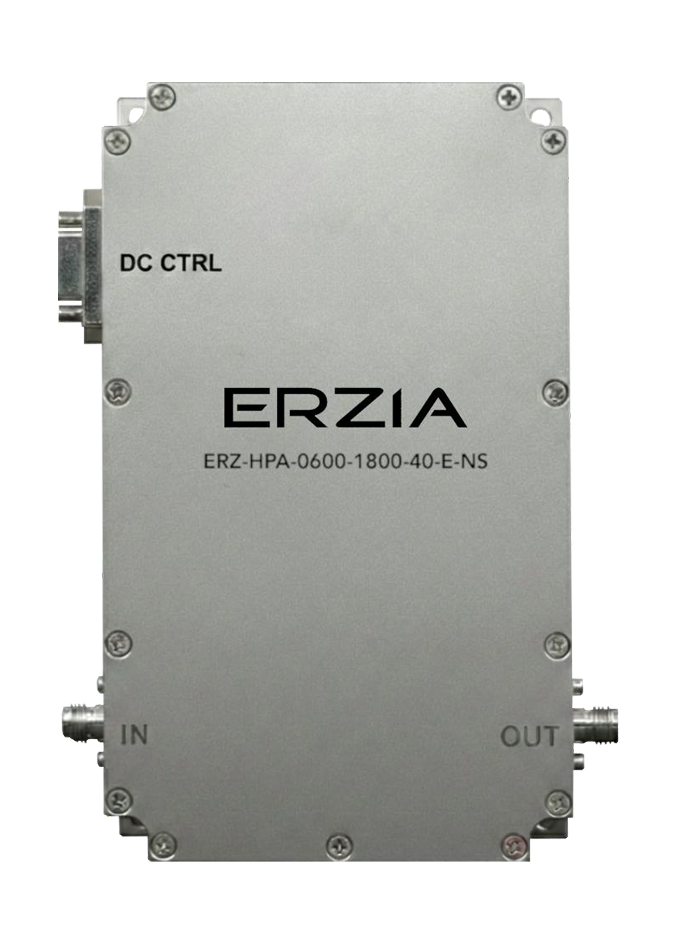

ERZ-HPA-0600-1800-40-E-NS
High Power Amplifiers 6 to 18GHz, Gain 46dB, Psat 40dBm
Description
The ERZ-HPA-0600-1800-40-E-NS is a microwave power amplifier based on GaN, specially prepared for New Space applications. It is based on its comercial grade equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.
Download
Key Features
- Frequency Range: 6 to 18 GHz
- Typical values: Gain 46dB, Psat 40dBm
- RF connectors (I/O): (SMA)
- Sub-D for control and DC connection
Specifications
| Parameter | Value | Units | ||
|---|---|---|---|---|
| Min | Typ | Max | ||
| Frequency | 6 | – | 18 | GHz |
| Output Power (Psat) |
39 | 40 | 43 | dBm |
| Small Signal Gain | 43 | 46 | 50 | dB |
| Gain Flatness | – | ±1.5 | – | dB |
| VSWR input | – | 1.5:1 | 2.5:1 | – |
| VSWR output | – | 2.5:1 | 3.5:1 | – |
| DC Voltage | 24 | 28 | 32 | V |
| Power Consumption @PSat |
– | 75 | – | W |
| RF Connectors | SMA Female | |||
Specifications at a case temperature of 25°C

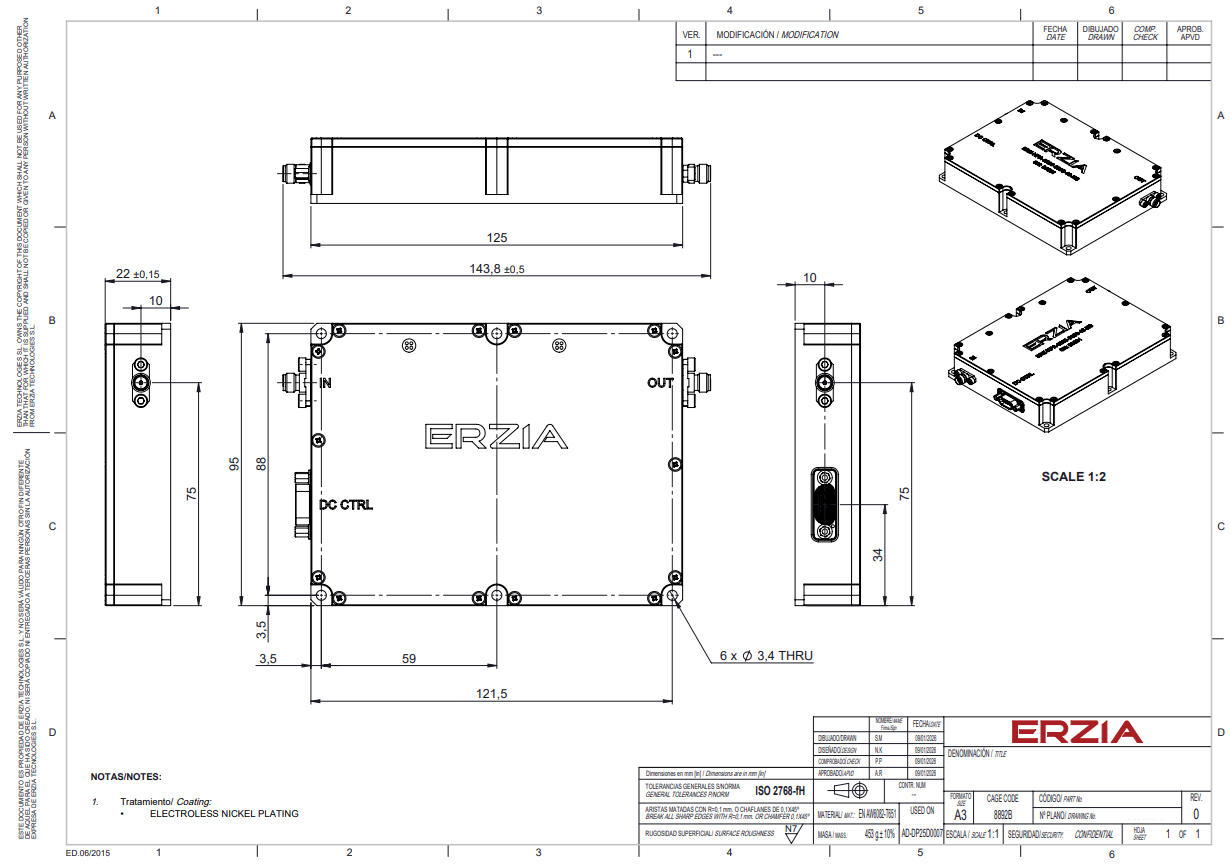

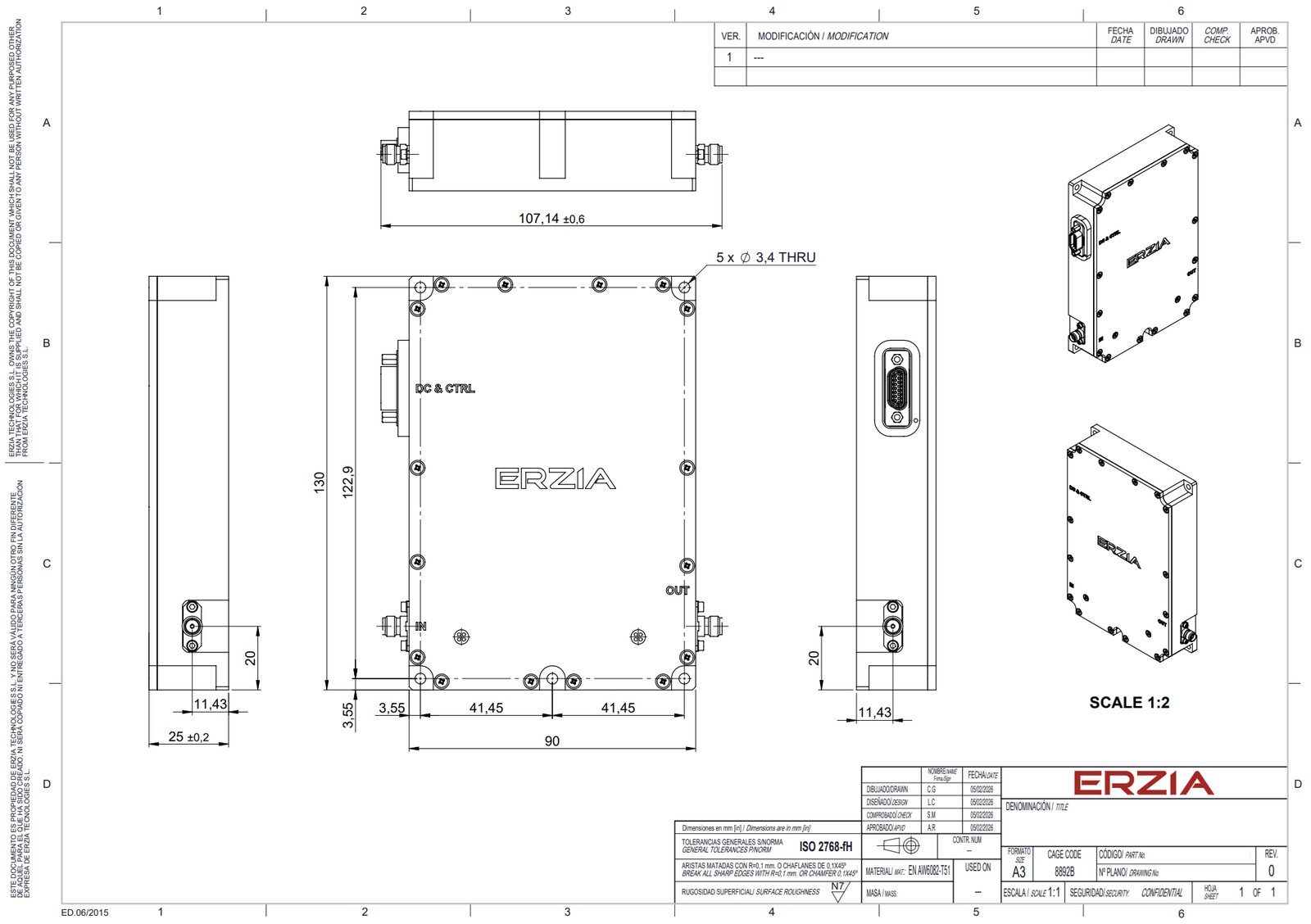

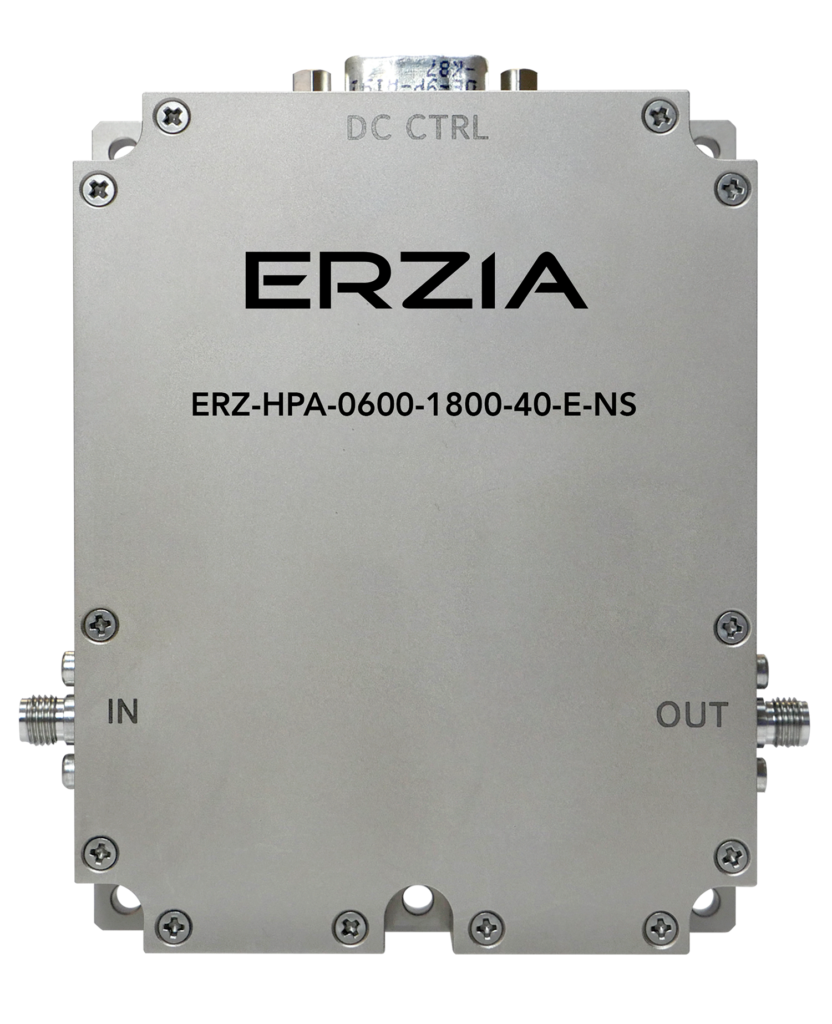

Mechanics and Housing
