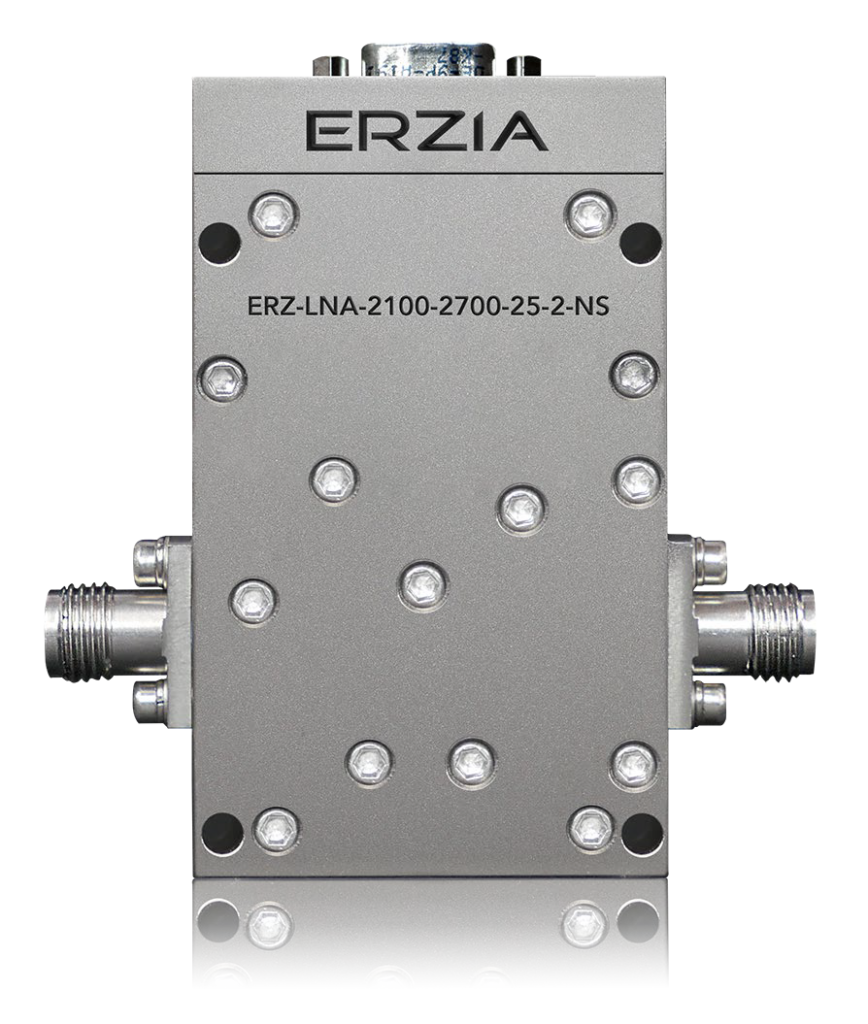

ERZ-LNA-2100-2700-25-2-NS

Low Noise Amplifier 21 to 27GHz Noise Figure 2.7dB, Gain 25dB

Low Noise Amplifier 21 to 27GHz Noise Figure 2.7dB, Gain 25dB

Login to see price Get a quote

Description

The ERZ-LNA-2100-2700-25-2-NS is a microwave low noise amplifier based in GaAs, specially prepared for New Space applications. It is based on its commercial grade equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.

Download

PDF IconERZ-LNA-2100-2700-25-2-NS

Key Features

  • Frequency Range: 21 to 27 GHz
  • Typical values: Noise Figure 2.5 dB, Gain 25 dB,
  • RF connectors (I/O): SMA Female

  • Sub-D for control and DC connection

Specifications

Parameter Value Units
Min Typ Max
Frequency 21 – 27 GHz
Output Power
(P1dB)		 13 15 17 dBm
Small Signal Gain 22 25 28 dB
Gain Flatness – ±2.0 – dB
Noise Figure 2.5 2.7 3 dB
VSWR input 1.0:1 1.3:1 2.5:1 –
VSWR output 1.5:1 1.8:1 2.5:1 –
DC Voltage 9 12 15 V
Power
Consumption		 – 0.5 – W
RF Connectors SMA Female IN/OUT
Specifications at a case temperature of 25°C

Mechanics and Housing
