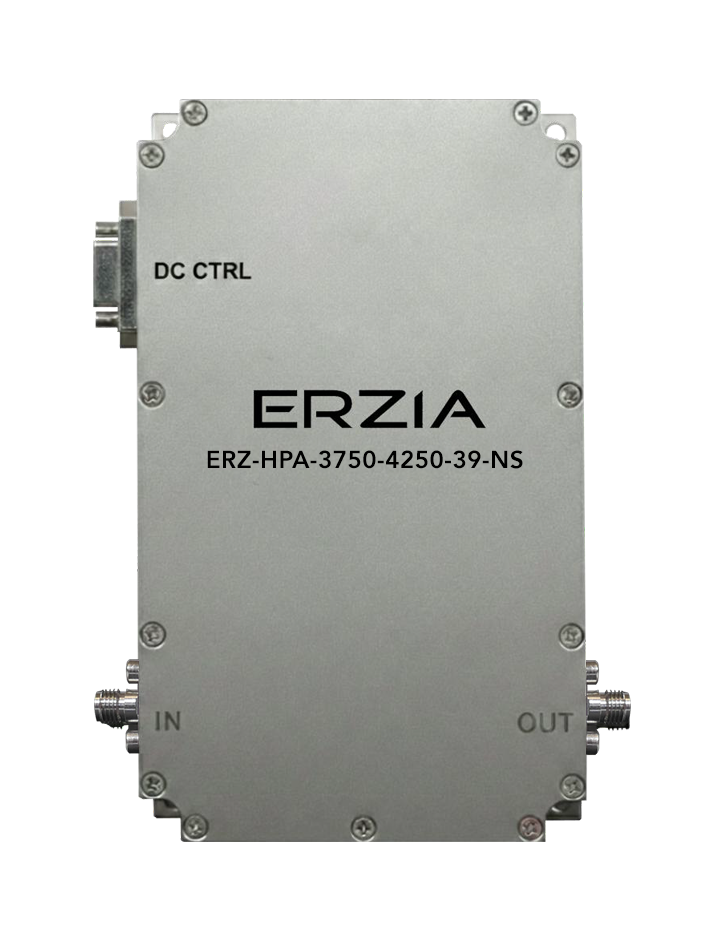

ERZ-HPA-3750-4250-39-NS
High Power Amplifiers 37.5 to 42.5GHz, Gain 49dB, Psat 39dBm
Description
The ERZ-HPA-3750-4250-39-NS is a microwave power amplifier based in GaN, specially prepared for New Space applications. It is based on its COTS equivalent, maintaining electrical performance and including key features ideal for new space applications, including radiation tolerance, performance in vacuum and outgassing compatibility, among others.
Download
Key Features
- Frequency Range: 37.5 to 42.5 GHz
- Typical values: Gain 49dB, Psat 39dBm
- RF connectors (I/O): 2.92mm Female IN/OUT
- Micro-D sub-15 for control and DC connection
Specifications
| Frequency Start (GHz): | 37.5 |
| Frequency Stop (GHz): | 42.5 |
| Output Power (dBm): | 39 |
| Gain (dB): | 49 |
| Gain flatness (dB): | ±5 |
| Noise Figure (dB): | 7 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.8:1 |
| Power consumption (W): | 100 @ Psat |
| Max. Input DC (no damage) (V): | 28 |

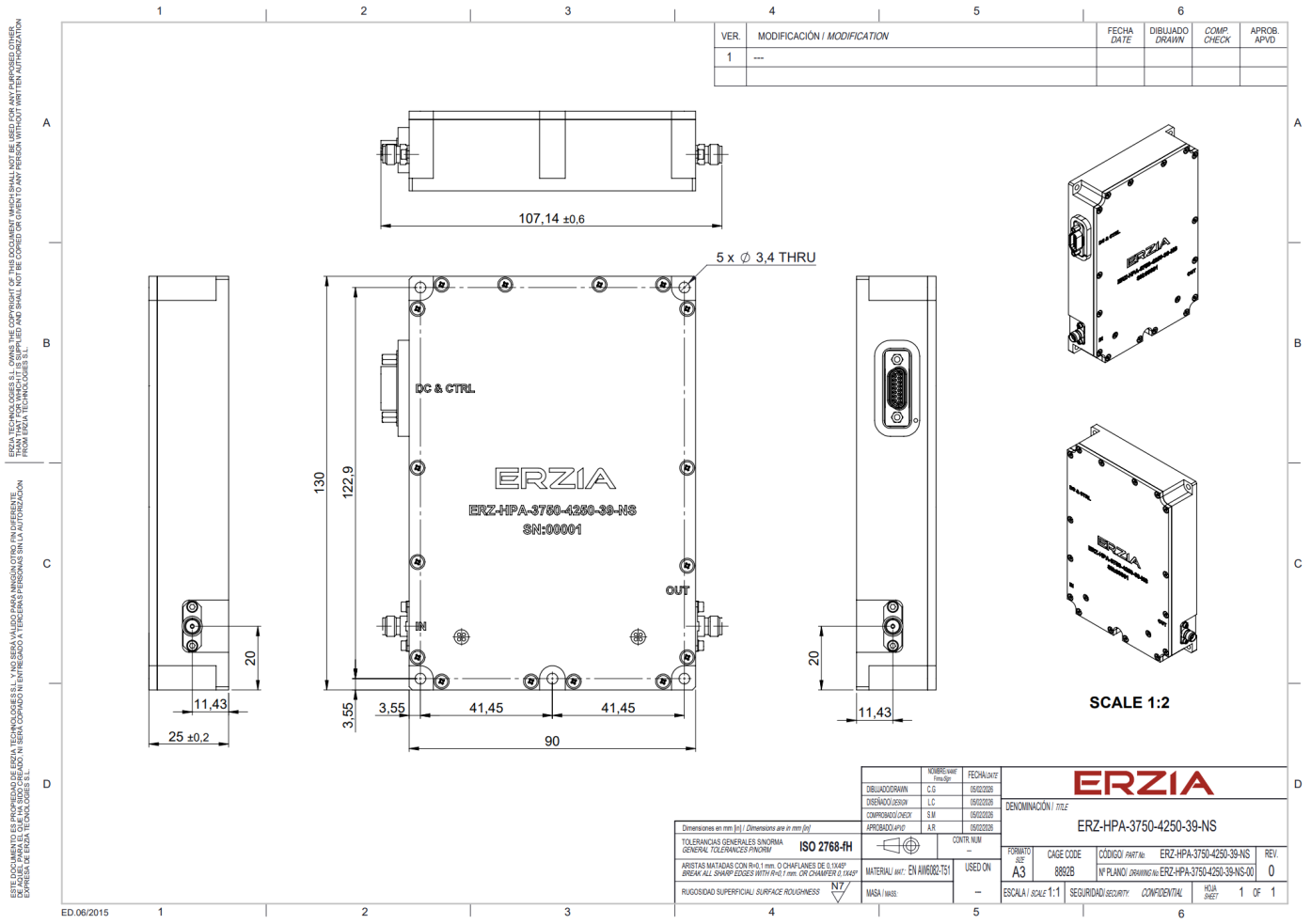

Mechanics and Housing
