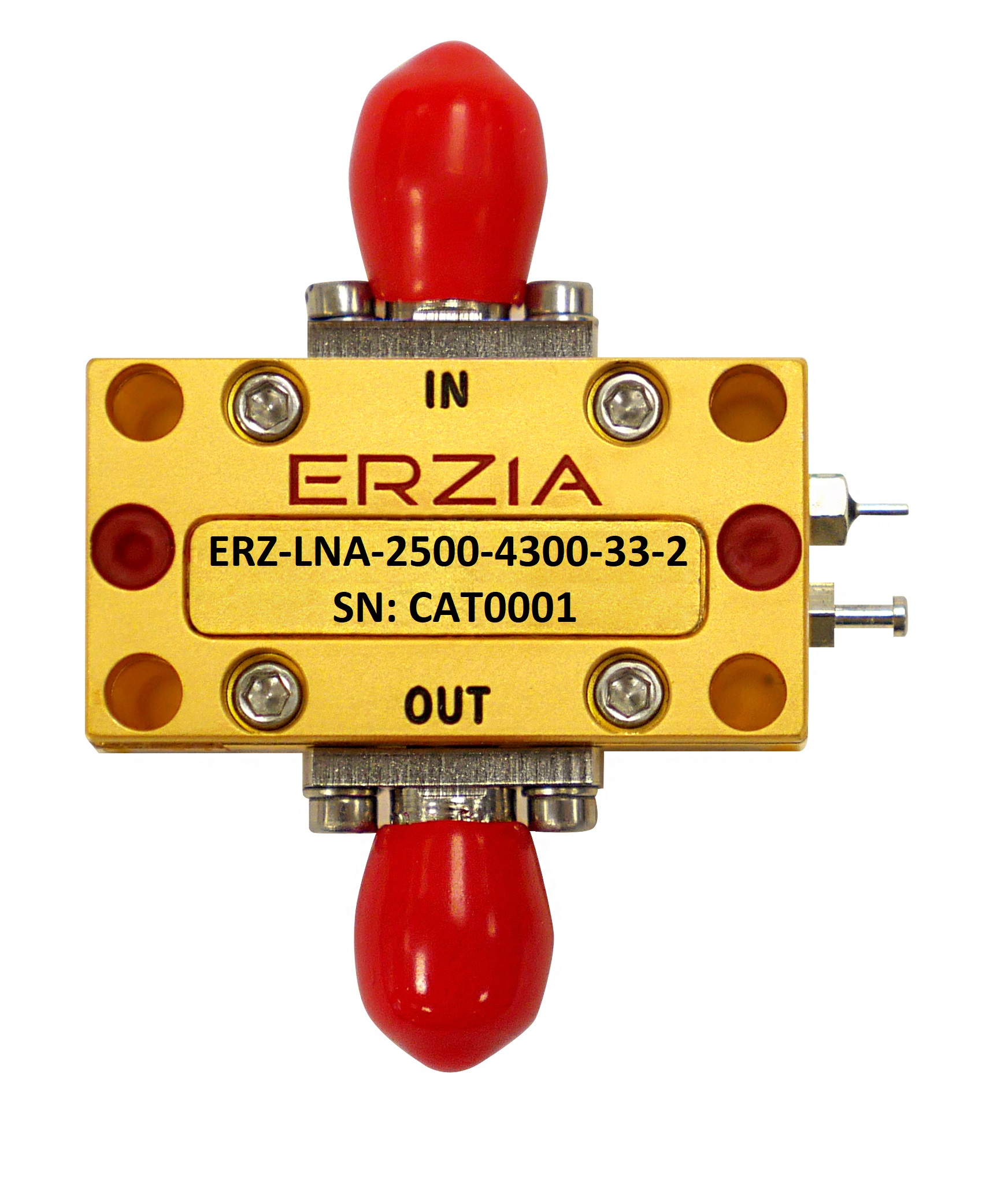

ERZ-LNA-2500-4300-33-2

Ka Band Low Noise Amplifier

Description:

The ERZ-LNA-2500-4300-33-2 is a wideband Low Noise Amplifier providing a gain of 28 dB with a noise figure of 2 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
25.00 to 43.0
Output Power (dBm):
4
Small Signal Gain (dB):
28
Noise Figure (dB):
2
Bias:
12 ±3 VDC
Package Dimensions:
16x30x17,5 mm
Connectors:
2.4 mm Female
Frequency Start (GHz)
25.00
Frequency Stop (GHz)
43.0
Output Power (dBm)
4
Gain (dB)
28
Gain flatness (dB)
±2.5
Noise Figure (dB)
2
VSWR IN
1.8:1
VSWR OUT
1.8:1
Power supply (V)
12 ±3
Current (mA)
4.1
Power consumption (W)
0.05
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
+1
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
