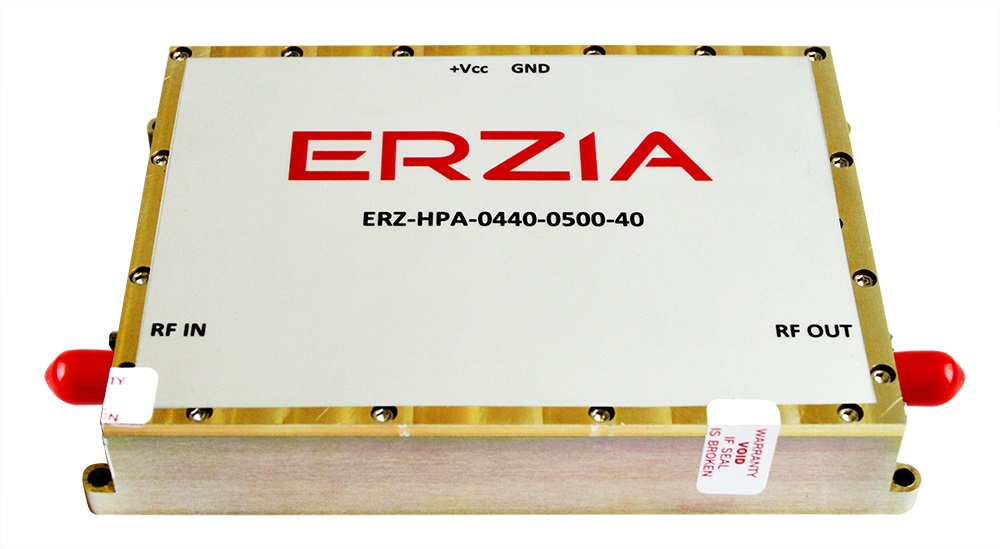

ERZ-HPA-0440-0500-40

C Band Power Amplifier

Description:

The ERZ-HPA-0440-0500-40 is a C Band Power Amplifier providing up to 40 dBm and a gain of 37 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
4.40 to 5.0
Output Power (dBm):
41
Small Signal Gain (dB):
37
Bias:
Power supply: +15 V, DC Current: 6 A
Package Dimensions:
115x75x17.5 mm
Connectors:
SMA Female
Frequency Start (GHz)
4.40
Frequency Stop (GHz)
5.0
Output Power (dBm)
41
Gain (dB)
37
Gain flatness (dB)
±2.0
Noise Figure (dB)
-
VSWR IN
1.2:1
VSWR OUT
1.2:1
Power supply (V)
15 ±1
Current (mA)
6000
Power consumption (W)
90
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-45 to 85
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

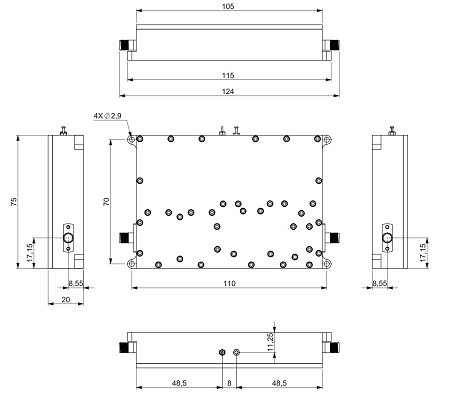

Outline Drawing:
Ordering Information:
