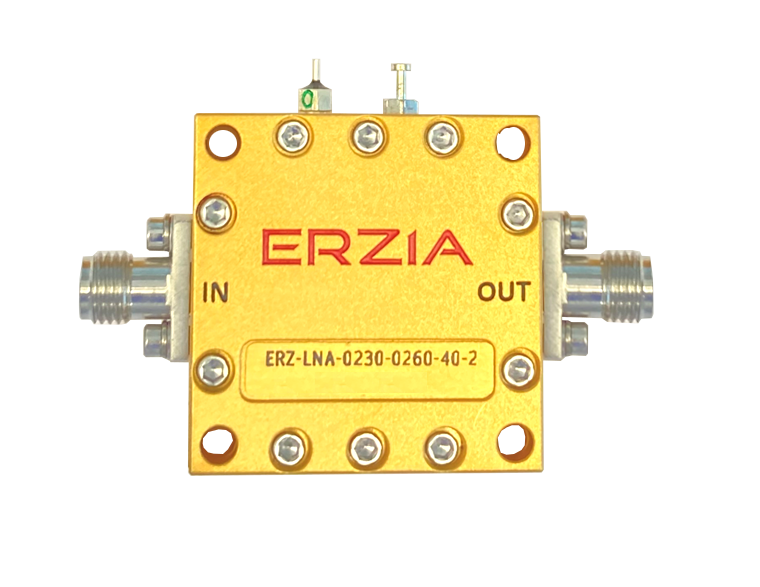

ERZ-LNA-0230-0260-40-2

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-0230-0260-40-2.5 is a Low Noise Amplifier providing a gain of 40 dB with a noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
2.3 to 2.6
Output Power (dBm):
19
Small Signal Gain (dB):
40
Noise Figure (dB):
2.5
Bias:
12±3 VDC
Package Dimensions:
30x30x17.5
Connectors:
SMA Female
Frequency Start (GHz)
2.3
Frequency Stop (GHz)
2.6
Output Power (dBm)
19
Gain (dB)
43
Gain flatness (dB)
±0.5
Noise Figure (dB)
2.5
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
12±3
Current (mA)
58
Power consumption (W)
0.7
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
-5
Temperature (operation) (°C)
-45 to +85
Temperature (storage) (°C)
-55 to +125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
