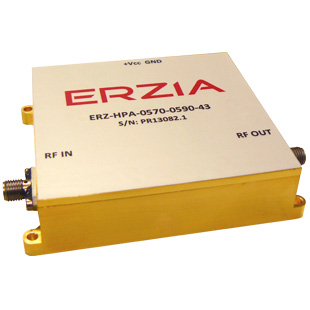

ERZ-HPA-0570-0590-42

C Band Power Amplifier

Description:

The ERZ-HPA-0570-0590-42 is a low frequency C-band Amplifier providing up to 41 dBm and a gain of 45 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
5.70 to 5.9
Output Power (dBm):
41
Small Signal Gain (dB):
45
Noise Figure (dB):
8
Bias:
Power supply: +12 V, DC Current: 4 A
Package Dimensions:
60x75x20mm
Connectors:
SMA Female
Frequency Start (GHz)
5.70
Frequency Stop (GHz)
5.9
Output Power (dBm)
41
Gain (dB)
40
Gain flatness (dB)
±0.5
Noise Figure (dB)
6.5
VSWR IN
1.7:1
VSWR OUT
1.2:1
Power supply (V)
12
Current (mA)
4000
Power consumption (W)
48
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

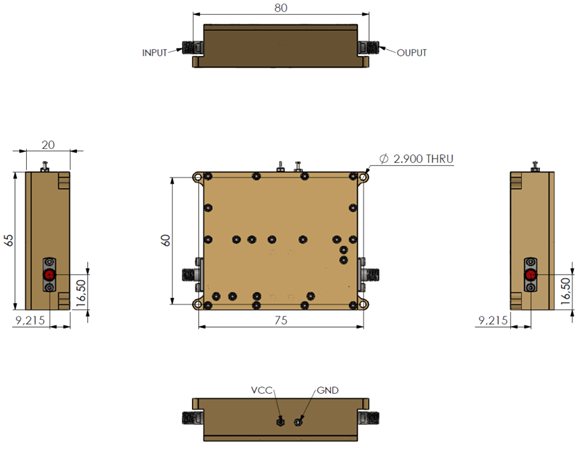

Outline Drawing:
