Wideband Power Amplifier
Description:
The ERZ-HPA-1900-3800-21 is a Wideband Amplifier providing up to 21 dBm and a gain of 18 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 19.0
|
|---|---|
| Frequency Stop (GHz) | 38.0
|
| Output Power (dBm) | 21
|
| Gain (dB) | 18
|
| Gain flatness (dB) | ±3
|
| Noise Figure (dB) | 9
|
| VSWR IN | 2.0:1
|
| VSWR OUT | 2.2:1
|
| Power supply (V) | 12 ±3
|
| Current (mA) | 166
|
| Power consumption (W) | 2
|
| Max. Input DC (no damage) (V) | 15
|
| Max. RF input power (dBm) | 20
|
| Temperature (operation) (°C) | -45 to 85
|
| Temperature (storage) (°C) | -55 to 125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

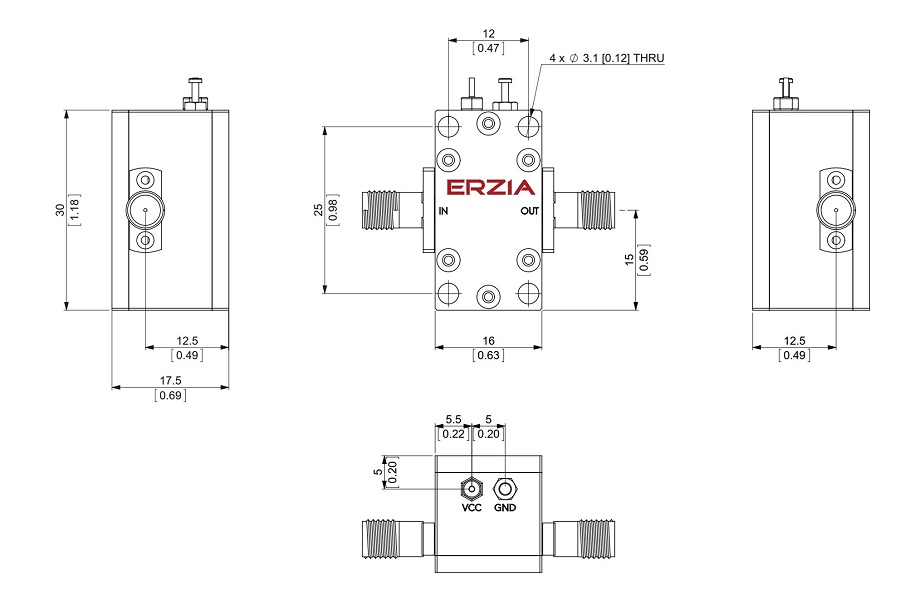

Outline Drawing:
