ERZ-HPA-3100-3700-33

Ka Band High Power Amplifier

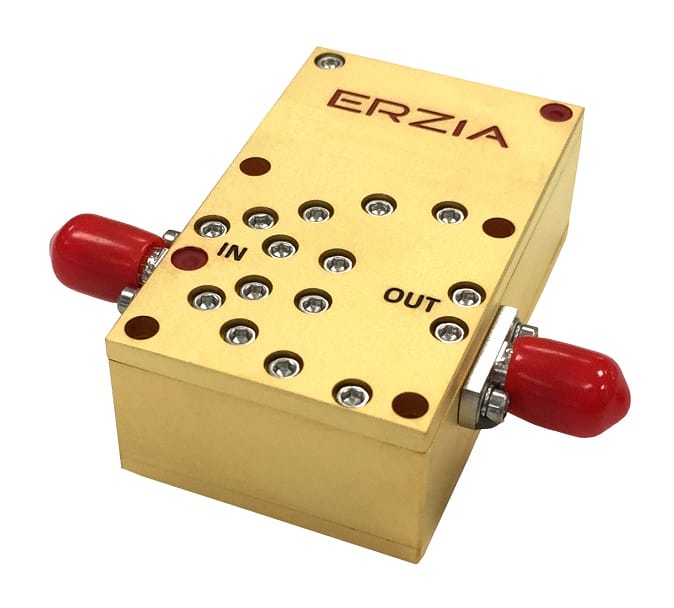

ERZ-HPA-3100-3700-33 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-3100-3700-33 is a Ka Band Amplifier providing up to 33 dBm and a gain of 18 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3100-3700-33_1

Key Features

  • Frequency Range (GHz): 31.00-37.00
  • Output Power (dBm): 33
  • Small Signal Gain (dB): 18
  • Bias: Power supply: 12V, DC Current: 1.75 A
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: 2.92 mm

Specifications

Frequency Start (GHz): 31.00
Frequency Stop (GHz): 37.00
Output Power (dBm): 33
Gain (dB): 18.00
Gain flatness (dB): ±4
VSWR IN: 1.5:1
VSWR OUT: 1.8:1
Power supply (V): 12 ±3
Current (mA): 1750
Power consumption (W): 21
Temperature (operation) (°C): -35 to 70
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

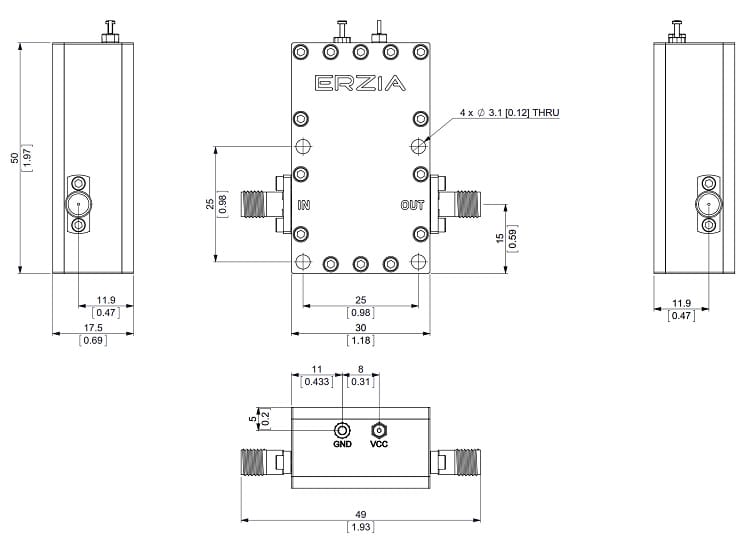

Outline Drawing

Ordering Information
