ERZ-HPA-2900-3100-37

Ka Band High Power Amplifier

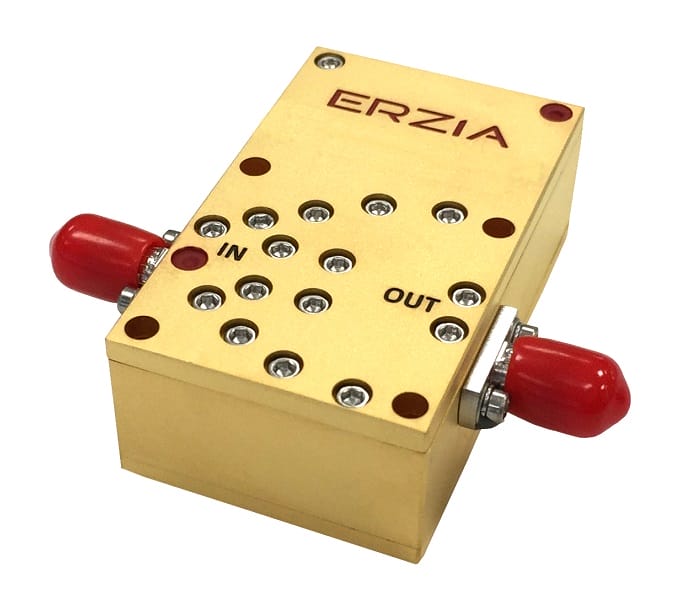

ERZ-HPA-2900-3100-37 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-2900-3100-37 is a Ka Band Amplifier providing up to 37 dBm and a gain over 18 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2900-3100-37_1

Key Features

  • Frequency Range (GHz): 29.00-31.00
  • Output Power (dBm): 37
  • Small Signal Gain (dB): 18
  • Bias: 15±3
  • Package Dimensions: Contact us
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 29.00
Frequency Stop (GHz): 31.00
Output Power (dBm): 37
Gain (dB): 18.00
Gain flatness (dB): ±1.5
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 15±3
Current (mA): 3.33 A
Power consumption (W): 50
Temperature (operation) (°C): -35 to70
Temperature (storage) (°C): -45 to 85

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing
