ERZ-HPA-2300-3700-25
Wideband High Power Amplifier
Description
The ERZ-HPA-2300-3700-25 is a Wideband High Power Amplifier providing an output power of 23 dBm and a gain of 19 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 23.00-37.00
- Output Power (dBm): 23
- Small Signal Gain (dB): 19
- Noise Figure (dB): 6
- Bias: 12 VDC
- Package Dimensions: 30x30x17.5 mm
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 23.00 |
| Frequency Stop (GHz): | 37.00 |
| Output Power (dBm): | 23 |
| Gain (dB): | 19.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 6 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.2:1 |
| Power supply (V): | 12 ±4 |
| Current (mA): | 250 |
| Power consumption (W): | 3 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

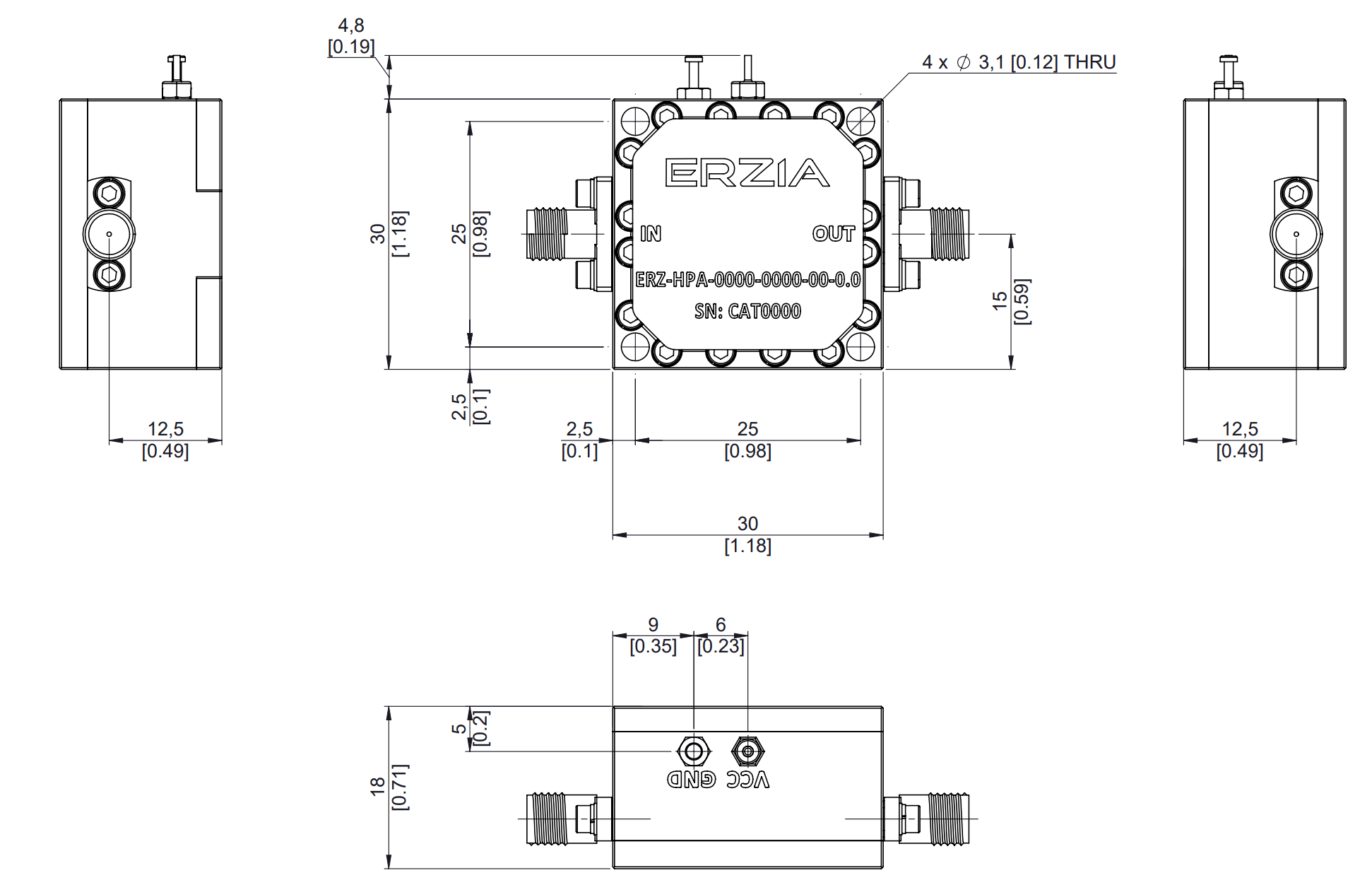

Outline Drawing
Ordering Information
