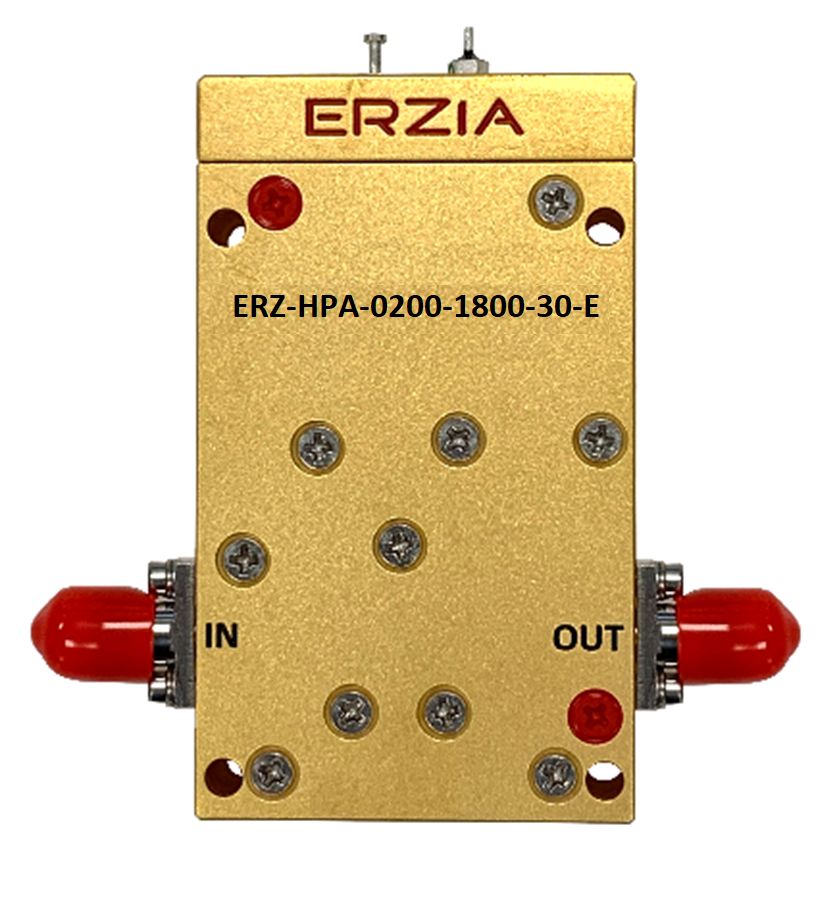

ERZ-HPA-0200-1800-30-E
Wideband High Power Amplifier
Description
The ERZ-HPA-0200-1800-30-E is a Wideband Power Amplifier providing an outputpower of 30 dBm and a gain of 45 dB.
Download
Key Features
- Frequency Range (GHz): 2.00-18.00
- Output Power (dBm): 31
- Small Signal Gain (dB): 45
- Noise Figure (dB): 3.5
- Bias: 12 ±3 VDC
- Package Dimensions: 36x61x14.5
- Connectors: SMA Female
Specifications
| Frequency Start (GHz): | 2.00 |
| Frequency Stop (GHz): | 18.00 |
| Output Power (dBm): | 31 |
| Gain (dB): | 45.00 |
| Gain flatness (dB): | ±1 |
| Noise Figure (dB): | 3.5 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 1250 |
| Power consumption (W): | 15 |
| Temperature (operation) (°C): | -40 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

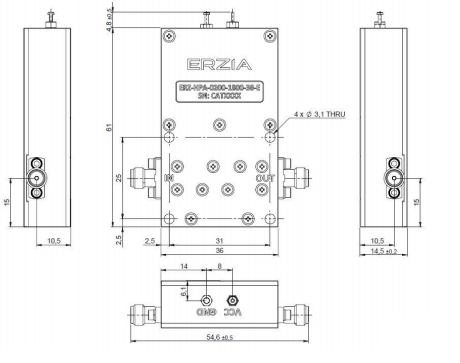

Outline Drawing
