ERZ-HPA-0100-1800-21
Wideband High Power Amplifier
Description
The ERZ-HPA-0100-1800-21 is a low frequency wideband Amplifier providing up to 21 dBm and a gain of 14 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 1.00-18.00
- Output Power (dBm): 21
- Small Signal Gain (dB): 14
- Noise Figure (dB): 3.5
- Bias: Power supply: +12 V, DC Current: 166 mA
- Package Dimensions: 16x30x17,5 mm
- Connectors: SMA Female
Specifications
| Frequency Start (GHz): | 1.00 |
| Frequency Stop (GHz): | 18.00 |
| Output Power (dBm): | 21 |
| Gain (dB): | 14.00 |
| Gain flatness (dB): | ±1.8 |
| Noise Figure (dB): | 3.5 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.3:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 166 |
| Power consumption (W): | 2 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

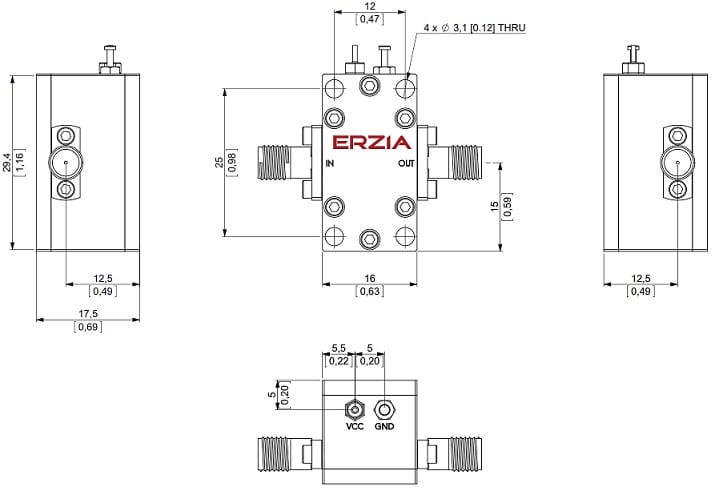

Outline Drawing
Ordering Information
