ERZ-HPA-0030-0600-46

Wideband High Power Amplifier

HPA_20_3000_42_1

Login to see price Get a quote

Description

The ERZ-HPA-0030-0600-46 is a High Power Amplifier providing an output power of 46 dBm and a gain of 40 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0030-0600-46_preliminary

Key Features

  • Frequency Range (GHz): 0.30-6.00
  • Output Power (dBm): 46
  • Small Signal Gain (dB): 45
  • Bias: 24 VDC
  • Output Saturation Power (dBm): 46
  • Package Dimensions: 160x115x23 mm (TBC)
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.30
Frequency Stop (GHz): 6.00
Output Power (dBm): 46
Gain (dB): 45.00
Gain flatness (dB): +/-2
VSWR IN: 2.0:1
VSWR OUT: 3.0:1
Power supply (V): 24±6
Current (mA): 10416
Power consumption (W): 250
Max. Input DC (no damage) (V): 36
Max. RF input power (dBm): 13
Temperature (operation) (°C): -40 to +70
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

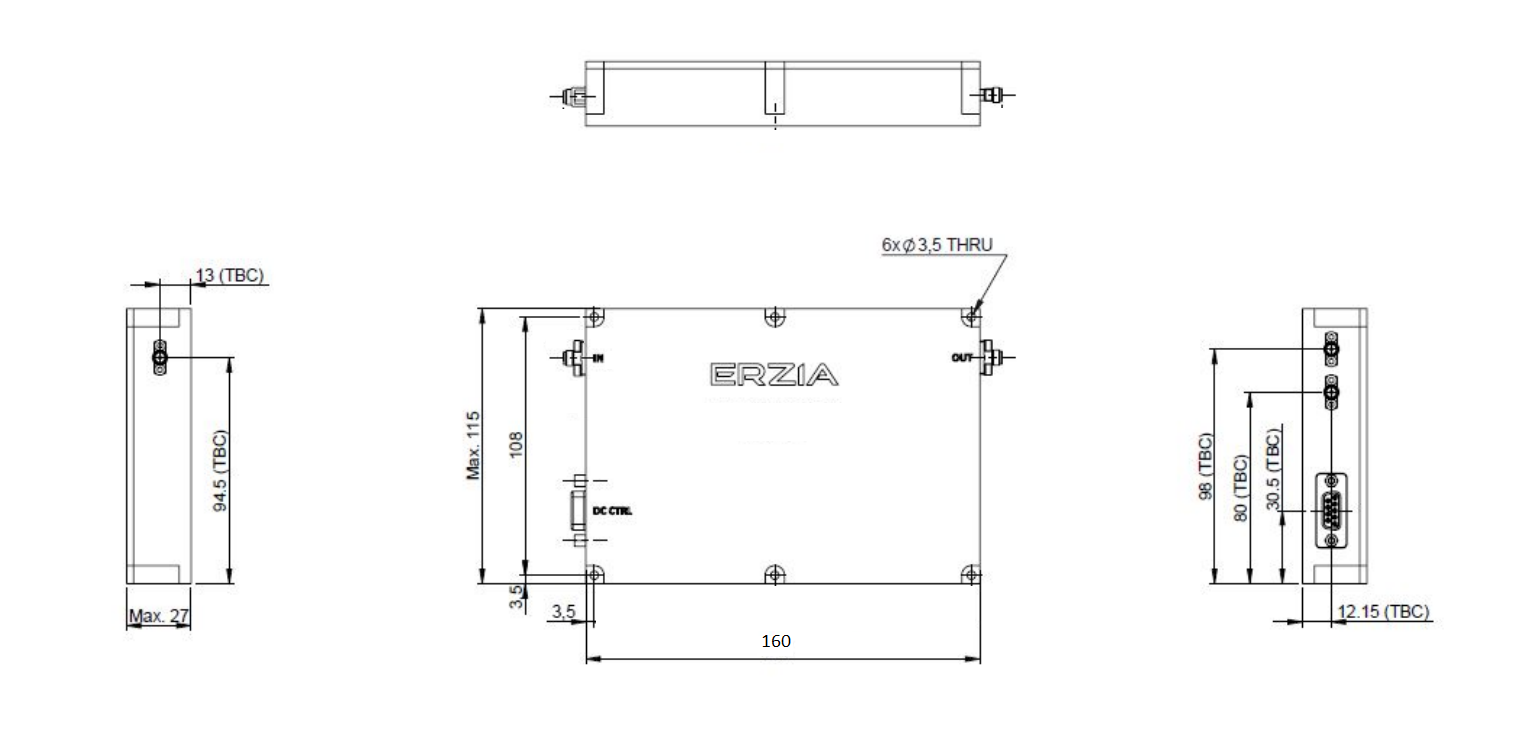

Outline Drawing

Ordering Information
