ERZ-MIX-0200-1200-10

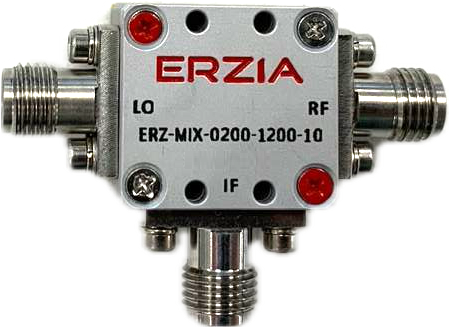

ERZ-MIX-0200-1200-10 Mixer

Login to see price Get a quote

Description

The ERZ-MIX-0200-1200-10 is an double balanced mixer covering RF/LO frequencies from 2 to 12 GHz and IF frequencies from DC to 3 GHz. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-MIX-0200-1200-10

Key Features

  • Type: Dual Balanced
  • RF/LO Frequency (GHz): 2-12
  • IF Frequency (GHz): 0 - 3
  • LO Power (dBm): 15
  • Conversion Loss (dB): 10
  • Package Dimensions: 17.5x16.25x9
  • Connectors: SMA Female

Specifications

RF/LO Frequency (GHz): 2-12
IF Frequency (GHz): 0 - 3
Conversion Loss (dB): 10
LO Power (dBm) : 15
LO to IF Isolation (dB): 35
RF to IF Isolation (dB): 40
Input IP3 : 20
Max. RF input power (dBm): 30
Temperature (operation) (°C): -55 to 125
Temperature (storage) (°C): -55 to 100

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

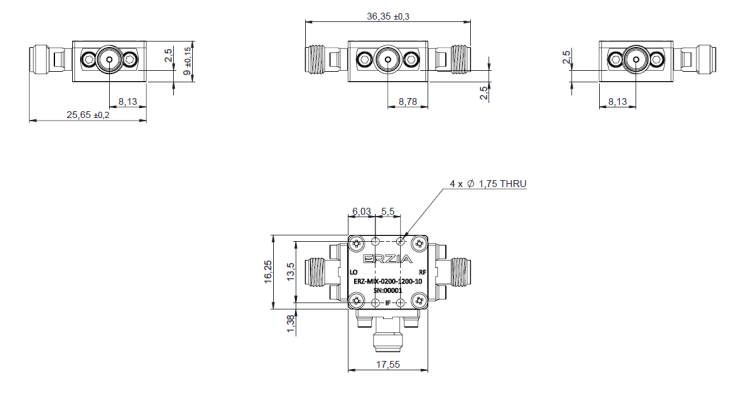

Outline Drawing
