ERZ-LNA-0600-1200-31-2.5

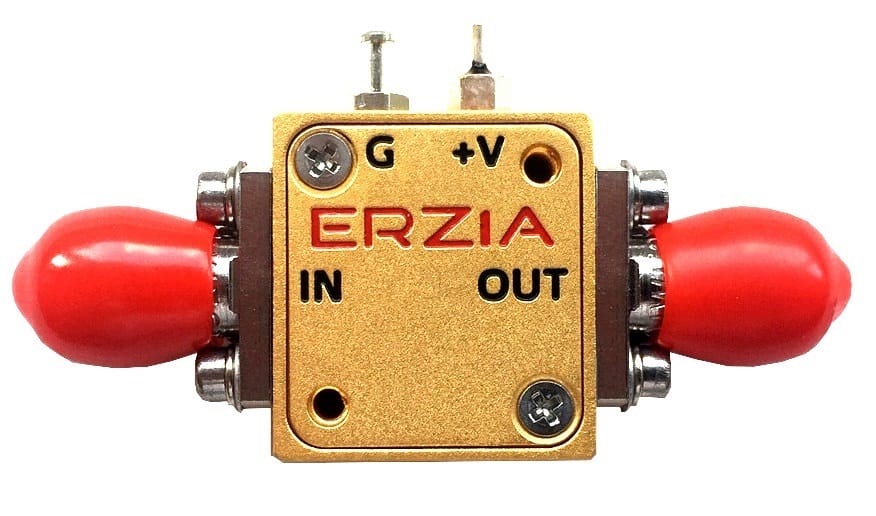

ERZ-LNA-0600-1200-31-2.5 X Band LNA

Login to see price Get a quote

X Band Low Noise Amplifier

Description

The ERZ-LNA-0600-1200-31-2.5 is a Low Noise Amplifier providing a gain of 31 dB with a noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0600-1200-31-2.5_0

Key Features

  • Frequency Range (GHz): 6.00-12.00
  • Output Power (dBm): 21
  • Small Signal Gain (dB): 31
  • Noise Figure (dB): 2.5
  • Bias: 12 ±3 VDC
  • Package Dimensions: 16.3x17.8x7.3 MM (LxWxH)
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 6.00
Frequency Stop (GHz): 12.00
Output Power (dBm): 21
Gain (dB): 31.00
Gain flatness (dB): ±1
Noise Figure (dB): 2.5
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 250
Power consumption (W): 3
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

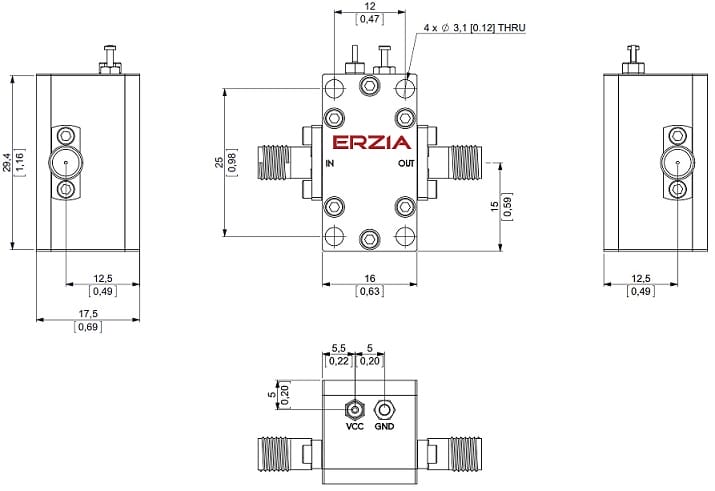

Outline Drawing

Ordering Information
