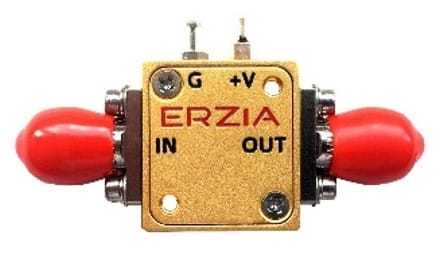

ERZ-LNA-0400-0800-28-1 C Band LNA

Login to see price Get a quote

C Band Low Noise Amplifier

Description

The ERZ-LNA-0400-0800-28-1 is a Low Noise Amplifier providing a gain up to 30 dB with a noise figure of 1 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0400-0800-28-1-1

Key Features

  • Frequency Range (GHz): 4.00-8.00
  • Output Power (dBm): 17
  • Small Signal Gain (dB): 28
  • Noise Figure (dB): 1
  • Output Saturation Power (dBm): 17

Specifications

Frequency Start (GHz): 4.00
Frequency Stop (GHz): 8.00
Output Power (dBm): 17
Gain (dB): 28.00
Gain flatness (dB): 1
Noise Figure (dB): 1
Power supply (V): 12
Current (mA): 16
Power consumption (W): 0.2

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
