ERZ-LNA-0340-0470-13-2

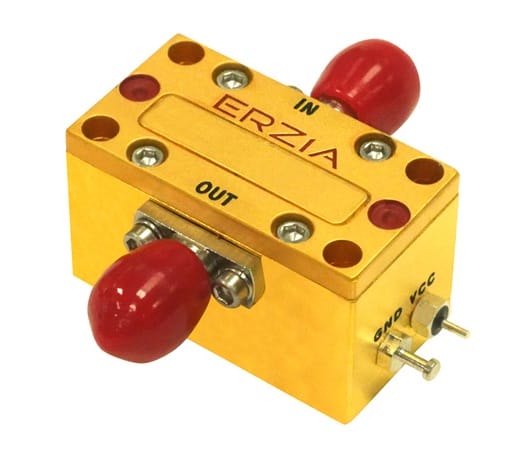

ERZ-LNA-0340-0470-13-2 C Band LNA

Login to see price Get a quote

C Band Low Noise Amplifier

Description

The ERZ-LNA-0340-0470-13-2 is a Low Noise Amplifier providing a Small Signal Gain of 16 dB and a Noise Figure below 2 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0340-0470-13-2_2

Key Features

  • Frequency Range (GHz): 3.40-4.70
  • Output Power (dBm): 19
  • Small Signal Gain (dB): 16
  • Noise Figure (dB): 1.7
  • Bias: Power supply: 12 V
  • Package Dimensions: 16x30x17,5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 3.40
Frequency Stop (GHz): 4.70
Output Power (dBm): 19
Gain (dB): 13.00
Gain flatness (dB): ±1.0
Noise Figure (dB): 1.7
VSWR IN: 1.7:1
VSWR OUT: 1.2:1
Power supply (V): 12 ±3
Current (mA): 70
Power consumption (W): 0.8
Temperature (operation) (°C): -35 to 75
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

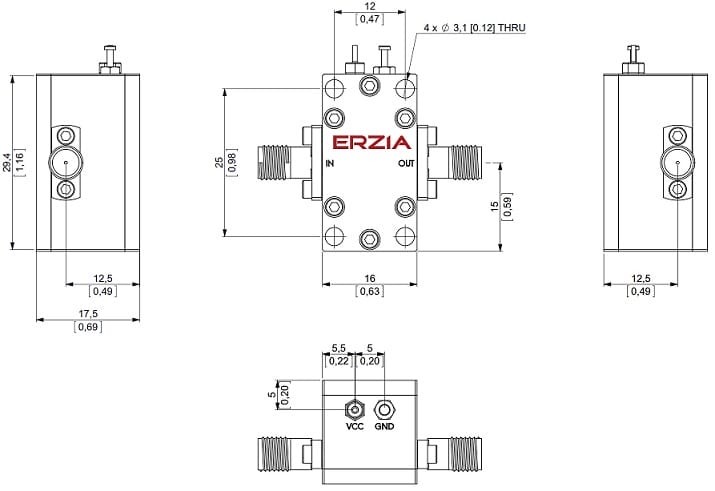

Outline Drawing

Ordering Information
