ERZ-LNA-0200-1800-30-2

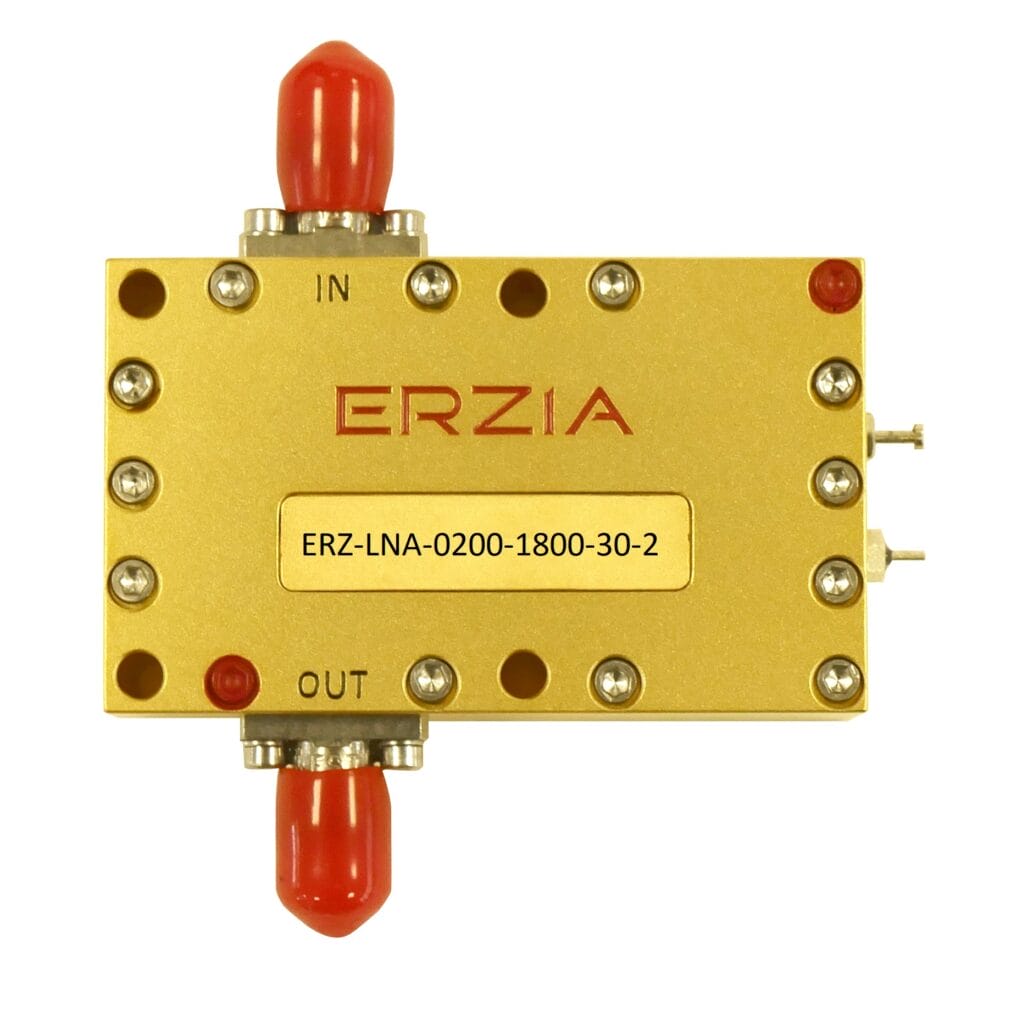

ERZ-LNA-0200-1800-30-2 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-0200-1800-30-2 is a Low Noise Amplifier covering S ,C, X and Ku Bands and being able to provide Low Noise Figure within a wide frequency range and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0200-1800-30-2_2

Key Features

  • Frequency Range (GHz): 2.00-18.00
  • Output Power (dBm): 17
  • Small Signal Gain (dB): 30
  • Noise Figure (dB): 2
  • Bias: Power supply: +12 ±3 V
  • Package Dimensions: 30x50x17.5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 2.00
Frequency Stop (GHz): 18.00
Output Power (dBm): 17
Gain (dB): 30.00
Gain flatness (dB): ±3.5
Noise Figure (dB): 2
VSWR IN: 1.5:1
VSWR OUT: 1.7:1
Power supply (V): 12 ±3
Current (mA): 133
Power consumption (W): 1.6
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

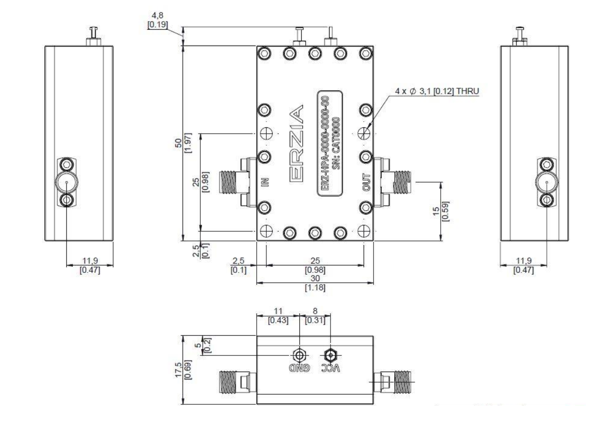

Outline Drawing

Ordering Information
