ERZ-HPF-1750-4100-2

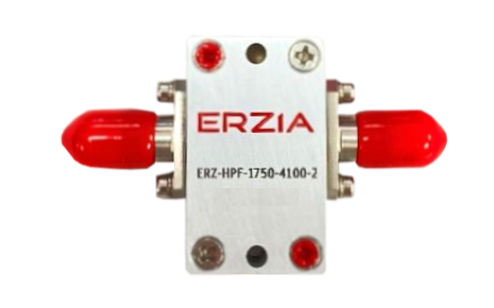

ERZ-HPF-1750-4100-2 Suspended Substrate

Login to see price Get a quote

High Pass Fiter

Description

The ERZ-HPF-1750-4100-2 is a Suspended Substrate Stripline High Pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final applications.

Download

PDF IconERZ-HPF-1750-4100-2_0

Key Features

  • Frequency Range (GHz): 17.50-41.00
  • Type: HPF
  • Technology: SS
  • Package Dimensions: 30x25x10 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 17.50
Frequency Stop (GHz): 41.00
Insertion Loss (dB): 1.3
Return Loss (dB): 13
Minimum frequency for 30 dB out of band rejection (GHz): 15.4
Minimum frequency for 60 dB out of band rejection (GHz): 16
Max. RF input power (dBm): 40
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
