ERZ-HPA-3400-3600-33

Ka Band High Power Amplifier

ERZ-HPA-3400-3600-33 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-3400-3600-33 is a High Power Amplifier providing an output power of 32 dBm and a gain of 38 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3400-3600-33_2

Key Features

  • Frequency Range (GHz): 34.00-36.00
  • Output Power (dBm): 32
  • Small Signal Gain (dB): 38
  • Bias: 12 ±2 VDC
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: 2.92mm Female

Specifications

Frequency Start (GHz): 34.00
Frequency Stop (GHz): 36.00
Output Power (dBm): 32
Gain (dB): 38.00
Gain flatness (dB): ±1
VSWR IN: 1.3:1
VSWR OUT: 2.1:1
Power supply (V): 12 ±2
Current (mA): 1333
Power consumption (W): 16
Temperature (operation) (°C): -40 to 80
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

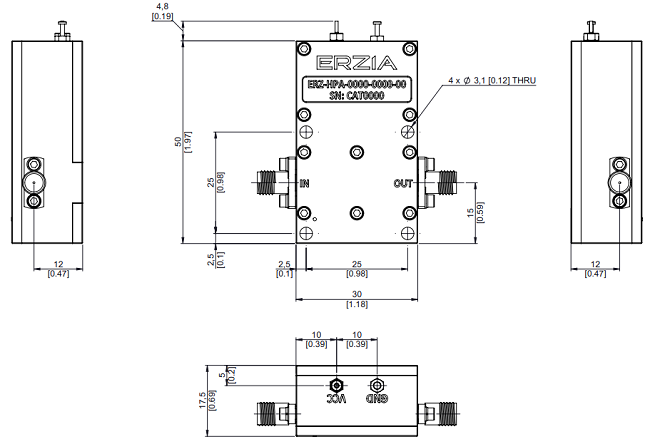

Outline Drawing
