ERZ-HPA-3300-4700-29

Q Band High Power Amplifier

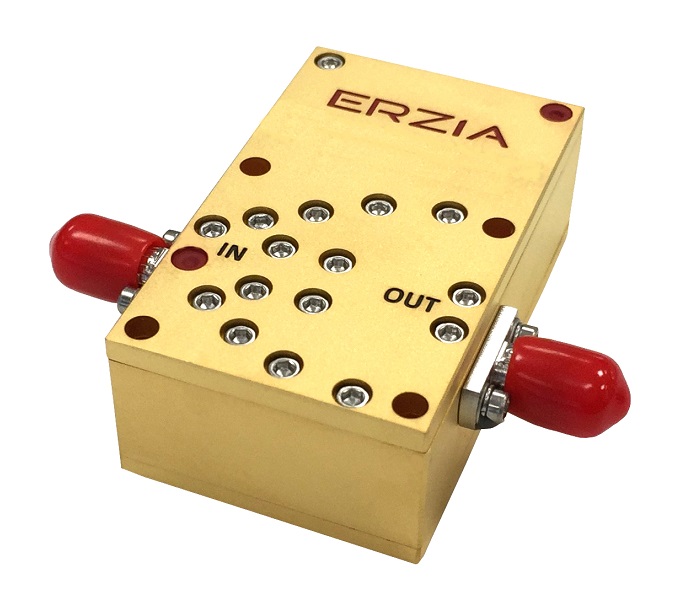

ERZ-HPA-3300-4700-29 HPA

Login to see price Get a quote

Description

The ERZ-HPA-3300-4700-29 is a Q Band Amplifier providing up to 29 dBm and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3300-4700-29_1

Key Features

  • Frequency Range (GHz): 33.00-47.00
  • Output Power (dBm): 29
  • Small Signal Gain (dB): 30
  • Package Dimensions: 30x50x17.5
  • Connectors: 2.4 mm Female

Specifications

Frequency Start (GHz): 33.00
Frequency Stop (GHz): 47.00
Output Power (dBm): 29
Gain (dB): 30.00
Gain flatness (dB): ±5
VSWR IN: 1.8:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±4
Current (mA): 915
Power consumption (W): 11
Max. Input DC (no damage) (V): 16
Max. RF input power (dBm): 10
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

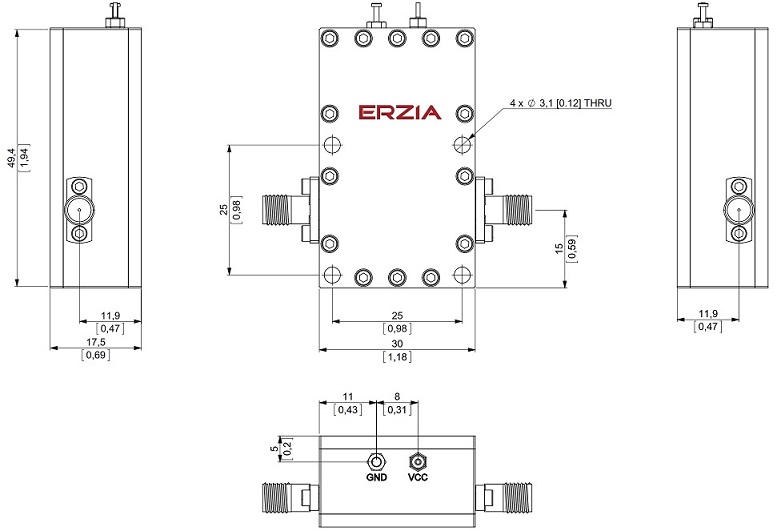

Outline Drawing
