ERZ-HPA-3200-3800-35

Ka Band High Power Amplifier

ERZ-HPA-3200-3800-35 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-3200-3800-35 is a High Power Amplifier providing an output power of 35 dBm and a gain of 33 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3200-3800-35_2

Key Features

  • Frequency Range (GHz): 32.00-38.00
  • Output Power (dBm): 35
  • Small Signal Gain (dB): 33
  • Bias: 12±3
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: 2.92 mm (F)

Specifications

Frequency Start (GHz): 32.00
Frequency Stop (GHz): 38.00
Output Power (dBm): 35
Gain (dB): 33.00
Gain flatness (dB): +/- 1.5
VSWR IN: 2.0:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 1750
Power consumption (W): 21
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

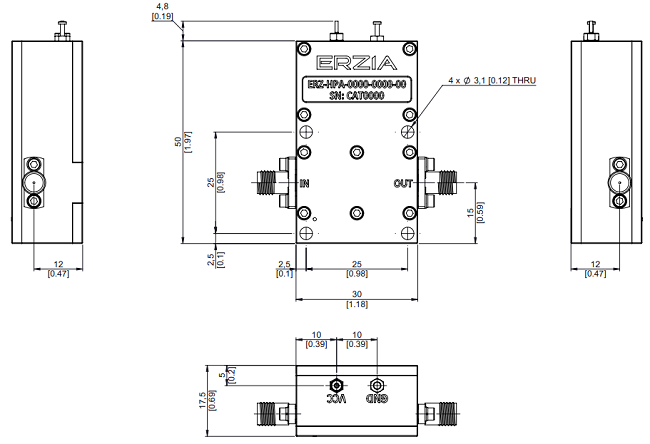

Outline Drawing

Ordering Information
