ERZ-HPA-3000-4000-32-E-W

Ka Band High Power Amplifier

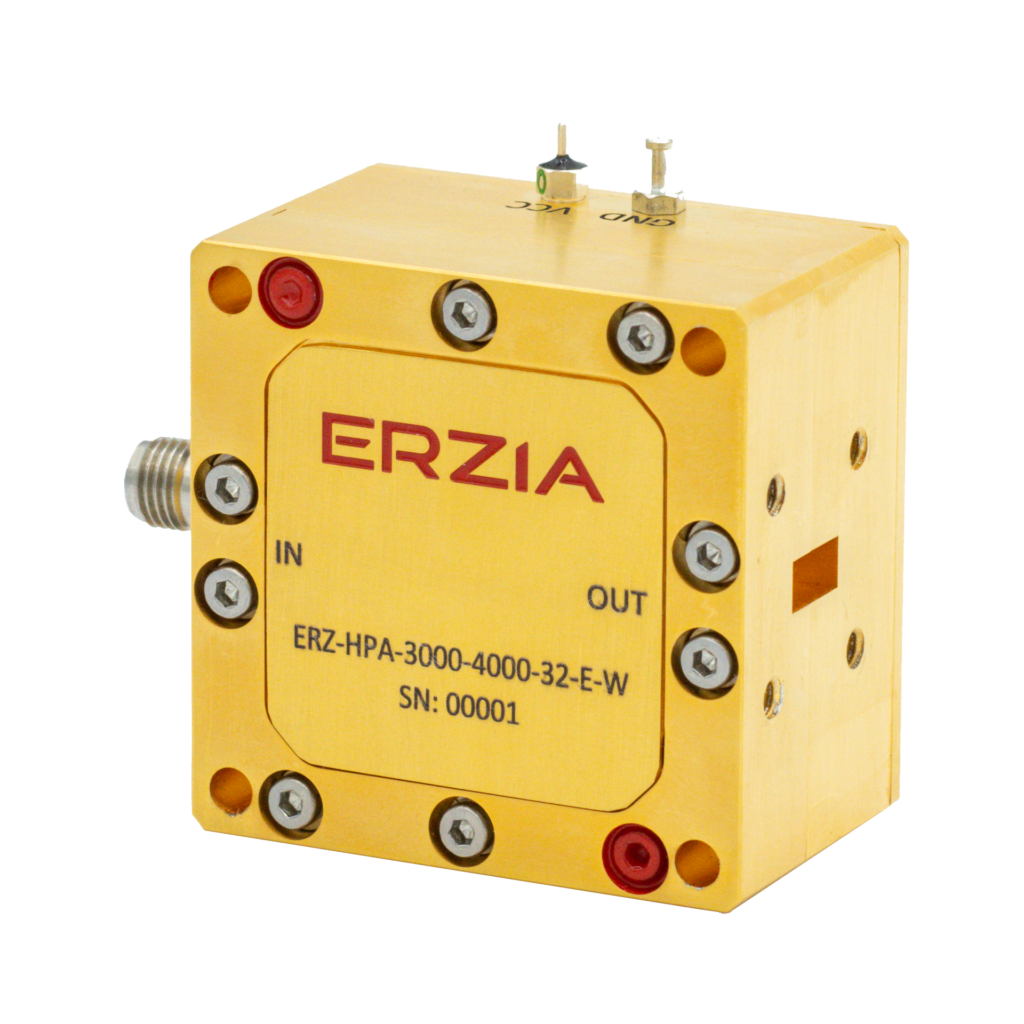

ERZ-HPA-3000-4000-32-E-W Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-3000-4000-32-E-W is a High Power Amplifier providing an output power of 33 dBm and a gain of 39 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3000-4000-32-E-W_0

Key Features

  • Frequency Range (GHz): 30.00-40.00
  • Output Power (dBm): 33
  • Small Signal Gain (dB): 39
  • Bias: 12 ±2 VDC
  • Package Dimensions: 40x40x25 mm (LxWxH)
  • Connectors: In: 2.92 mm (F) / Out: WR 28

Specifications

Frequency Start (GHz): 30.00
Frequency Stop (GHz): 40.00
Output Power (dBm): 33
Gain (dB): 39.00
Gain flatness (dB): ±2
VSWR IN: 1.3:1
VSWR OUT: 2.5:1
Power supply (V): 12 ±2
Current (mA): 1500
Power consumption (W): 18
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

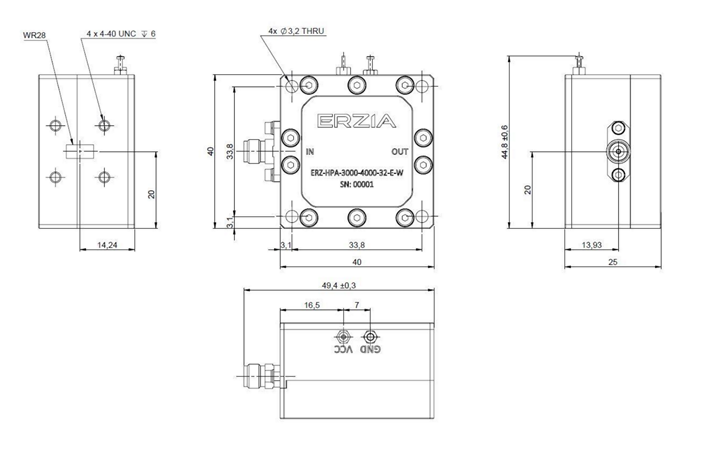

Outline Drawing

Ordering Information
