ERZ-HPA-2900-3100-37-E

Ka Band High Power Amplifier

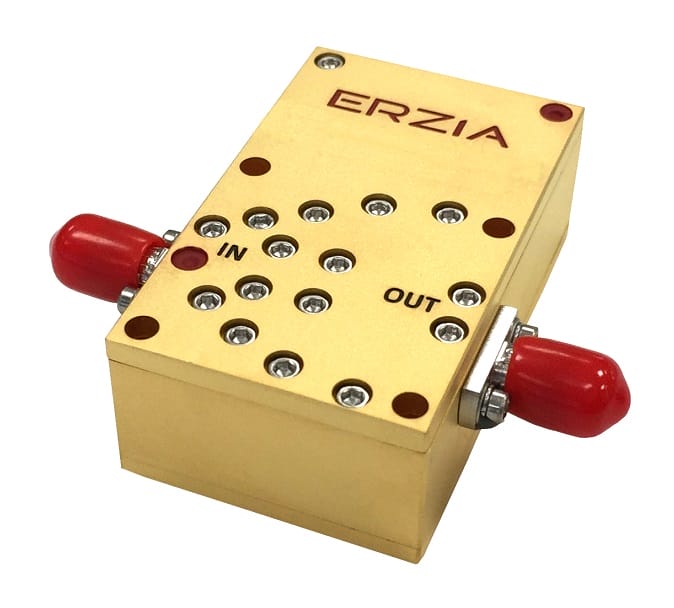

ERZ-HPA-2900-3100-37-E Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-2900-3100-37-E is a Ka Band Amplifier providing 36 dBm and a gain of 30dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2900-3100-37-E_0

Key Features

  • Frequency Range (GHz): 29.00-31.00
  • Output Power (dBm): 36
  • Small Signal Gain (dB): 30
  • Bias: 15±3
  • Package Dimensions: Contact us
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 29.00
Frequency Stop (GHz): 31.00
Output Power (dBm): 36
Gain (dB): 30.00
Gain flatness (dB): ±1.5
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 15±3
Current (mA): 1733
Power consumption (W): 26
Temperature (operation) (°C): -35 to 70
Temperature (storage) (°C): -45 to 85

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

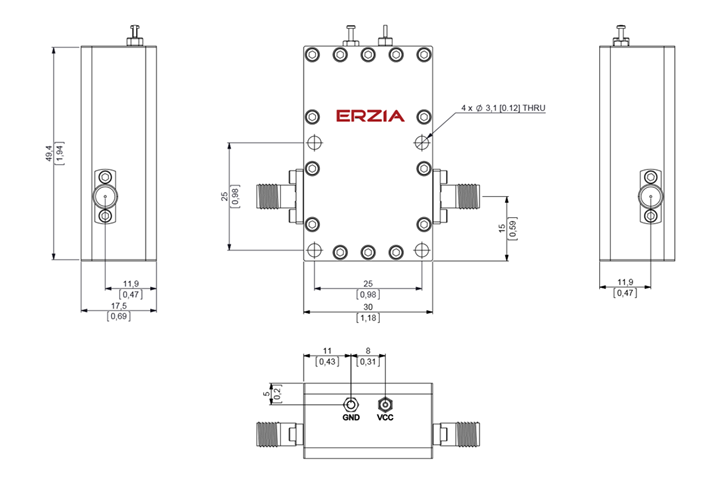

Outline Drawing

Ordering Information
