ERZ-HPA-2400-5000-28

Wideband High Power Amplifier

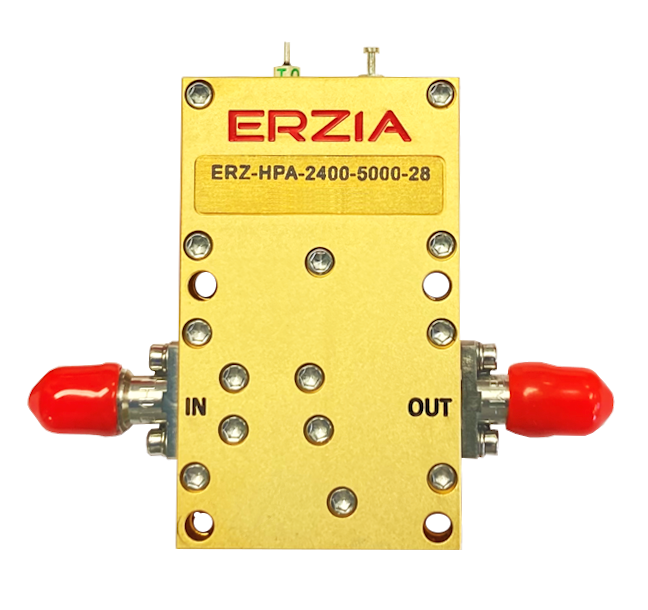

ERZ-HPA-2400-5000-28 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-2400-5000-28 is a High-Power Amplifier providing an output power of 30 dBm and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2400-5000-28_2

Key Features

  • Frequency Range (GHz): 20.00-50.00
  • Output Power (dBm): 30
  • Small Signal Gain (dB): 30
  • Bias: 12±3 VDC
  • Package Dimensions: 30x50x17.5 mm
  • Connectors: 2.4 mm Female

Specifications

Frequency Start (GHz): 20.00
Frequency Stop (GHz): 50.00
Output Power (dBm): 30
Gain (dB): 30.00
Gain flatness (dB): ±5
VSWR IN: 1.6:1
VSWR OUT: 1.8:1
Power supply (V): 12±3
Current (mA): 1166
Power consumption (W): 14
Temperature (operation) (°C): -40 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

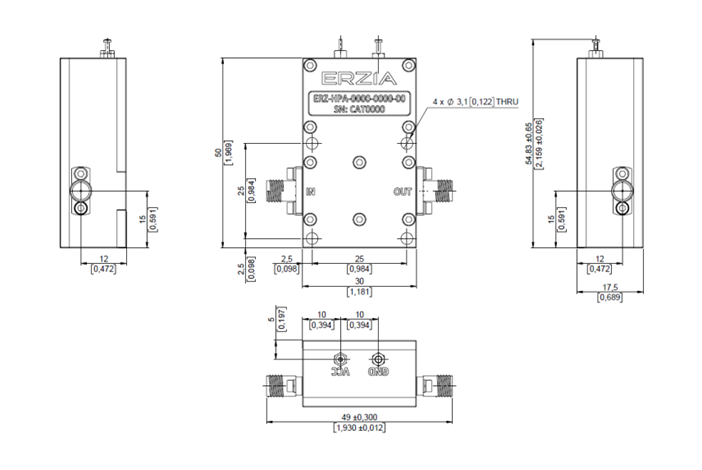

Outline Drawing

Ordering Information
