ERZ-HPA-1600-3300-24-E
Wideband High Power Amplifier
Description
The ERZ-HPA-1600-3300-24-E is a Wideband Amplifier providing up to 24 dBm and a gain of 34 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 16.00-33.00
- Output Power (dBm): 24
- Small Signal Gain (dB): 34
- Bias: Power supply: 12 V
- Package Dimensions: 30x30x17,5 mm
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 16.00 |
| Frequency Stop (GHz): | 33.00 |
| Output Power (dBm): | 24 |
| Gain (dB): | 34.00 |
| Gain flatness (dB): | ±5 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 12 ±4 |
| Current (mA): | 416 |
| Power consumption (W): | 5 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

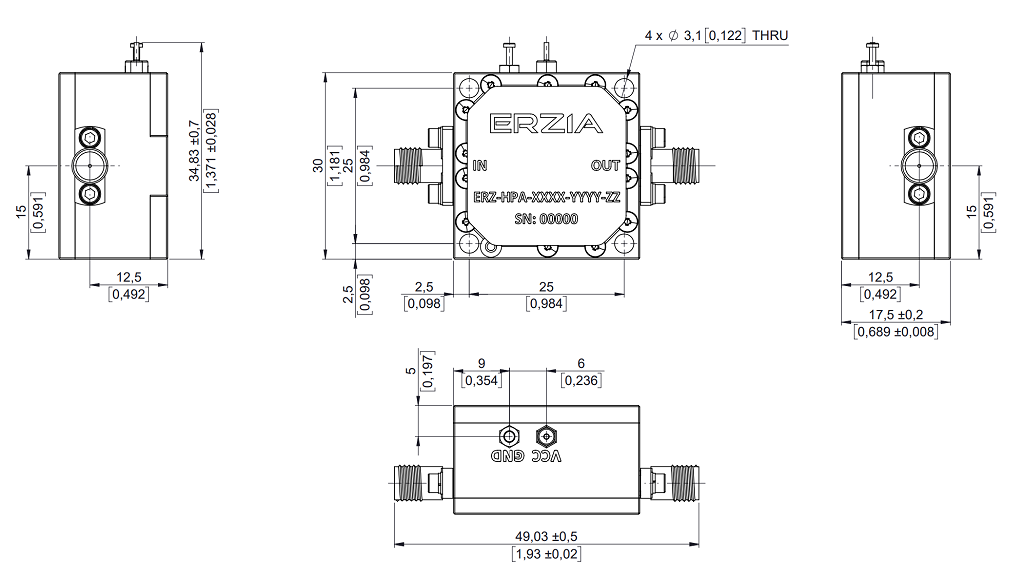

Outline Drawing
