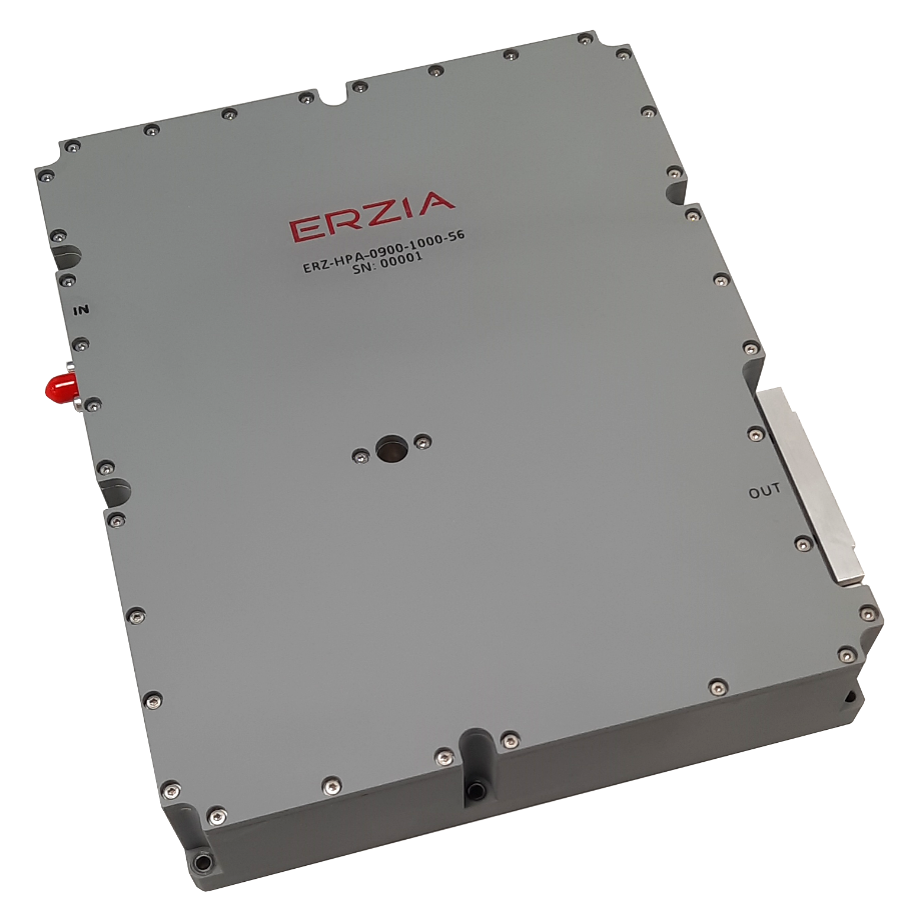

ERZ-HPA-0900-1000-56-M
X Band Power Amplifier |
9–10
GHz | 355 W Psat
Description
The ERZ-HPA-0900-1000-56-M is a pulsed High Power Amplifier based on GaN technology focused for Radar applications in X band. It provides up to 400W in a compact size.
Download
Key Features
- Frequency Range (GHz): 9-10
- Output Power (dBm): 55.5
- Small Signal Gain (dB): 64
- Bias: 28±4 VDC
- Package Dimensions: 218x187.5x42.5 mm
- Connectors: SMA Female (IN) / WR90 (OUT)
Specifications
| Frequency Start (GHz): | 9 |
| Frequency Stop (GHz): | 10 |
| Output Power (dBm): | 55.5 |
| Gain (dB): | 64 |
| VSWR IN: | 1.6:1 |
| VSWR OUT: | 1.6:1 |
| Power supply (V): | 28±4 |
| Current (mA): | 8000 |
| Power consumption (W): | 245 |
| Max. Input DC (no damage) (V): | 32 |
| Max. RF input power (dBm): | +10 |
| Temperature (operation) (°C): | -40 to +60 |
| Temperature (storage) (°C): | -55 to +125 |
Applications
Radar

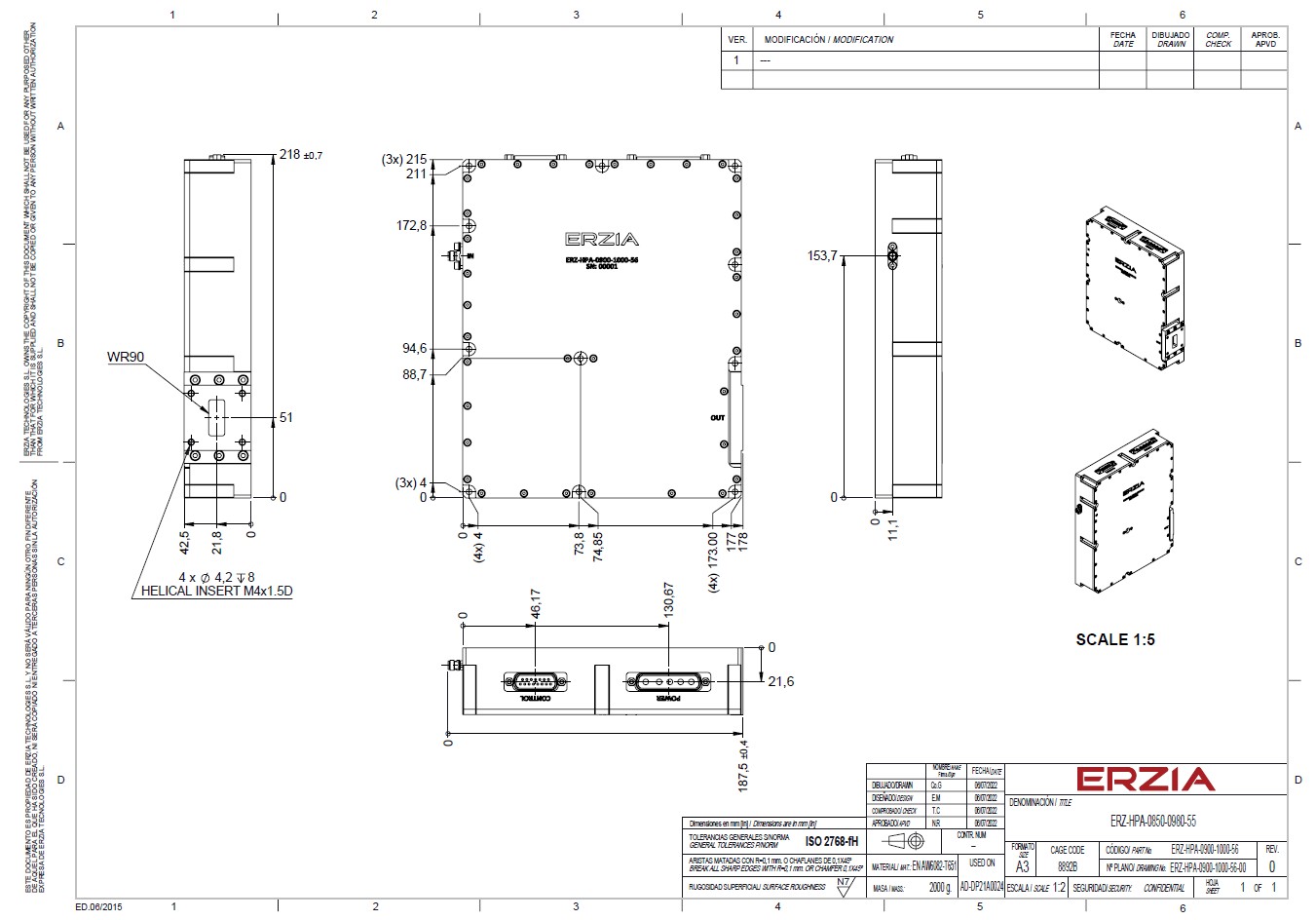

Outline Drawing
Ordering Information
