ERZ-HPA-0600-1000-31

X Band High Power Amplifier

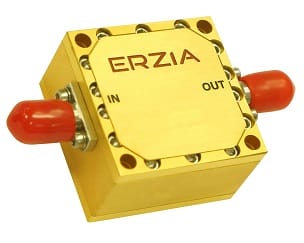

ERZ-HPA-0600-1000-31 X Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-0600-1000-31 is a X Band Amplifier providing 30 dBm and a gain of 23 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0600-1000-31_0

Key Features

  • Frequency Range (GHz): 6.00-10.00
  • Output Power (dBm): 30
  • Small Signal Gain (dB): 23
  • Bias: Power supply: +12 V, DC Current: 666 mA
  • Package Dimensions: 30x30x17,5 mm
  • Connectors: SMA female

Specifications

Frequency Start (GHz): 6.00
Frequency Stop (GHz): 10.00
Output Power (dBm): 30
Gain (dB): 23.00
Gain flatness (dB): ±2
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 12 ±4
Current (mA): 500
Power consumption (W): 6
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
