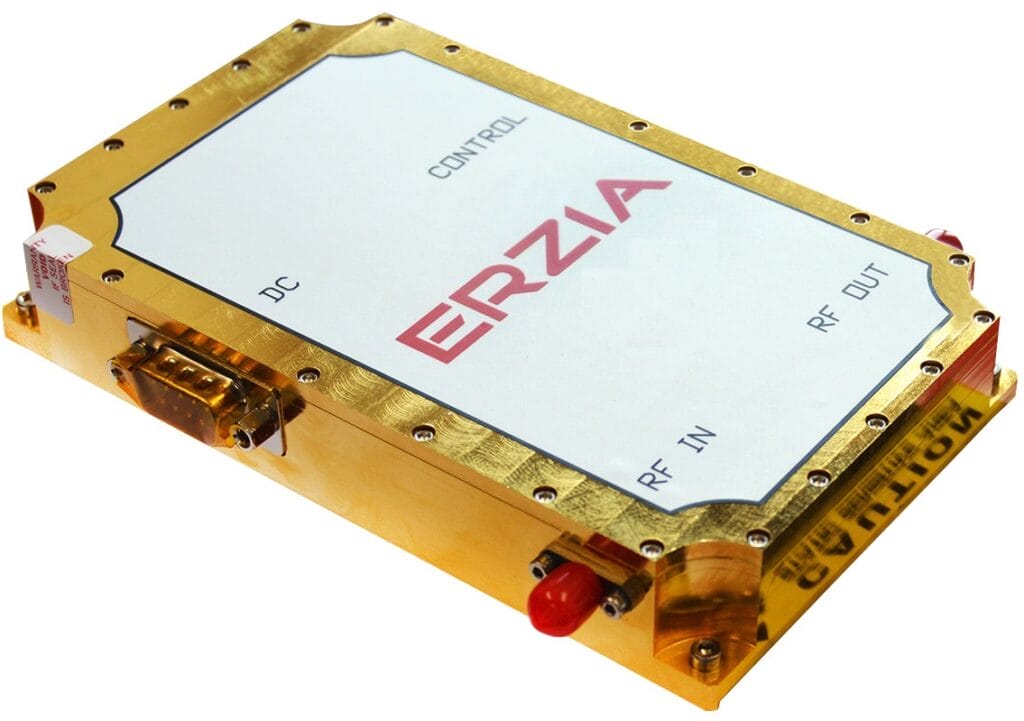

ERZ-HPA-0490-0525-43
C Band High Power Amplifier
Description
The ERZ-HPA-0490-0525-43 is a C Band Amplifier providing up to 43 dBm and a gain of 44 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 4.90-5.25
- Output Power (dBm): 43
- Small Signal Gain (dB): 44
- Bias: Power supply: +28 ±1 V
- Package Dimensions: 85x140x23 mm
- Connectors: SMA Female
Specifications
| Frequency Start (GHz): | 4.90 |
| Frequency Stop (GHz): | 5.25 |
| Output Power (dBm): | 43 |
| Gain (dB): | 44.00 |
| Gain flatness (dB): | ±1.2 |
| VSWR IN: | 2.0:1 |
| VSWR OUT: | 1.9:1 |
| Power supply (V): | 28 ±1 |
| Current (mA): | 4500 |
| Power consumption (W): | 130 |
| Temperature (operation) (°C): | -19 to 55 |
| Temperature (storage) (°C): | -40 to 71 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace
Satcom / Telecom
Space / Aerospace

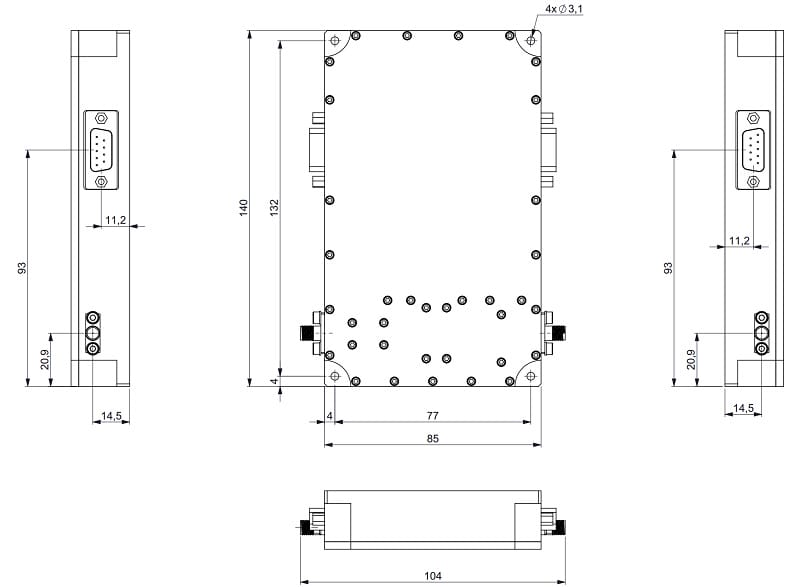

Outline Drawing
