ERZ-HPA-0050-4000-8

Wideband High Power Amplifier

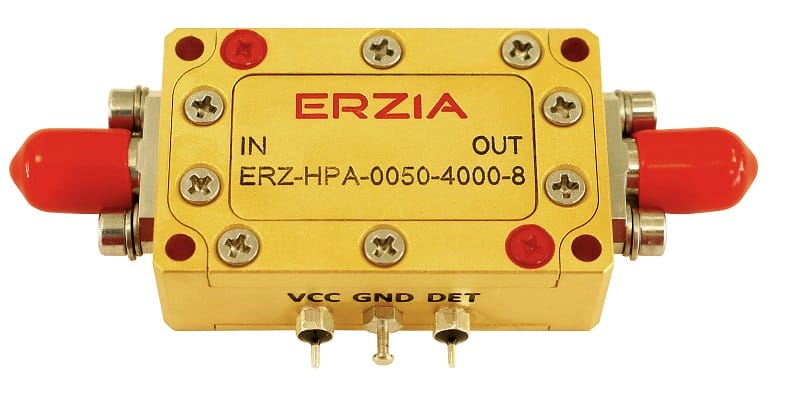

ERZ-HPA-0050-4000-8 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0050-4000-8 is a High Power Amplifier providing an output power of 15 dBm and an equalized gain from 10 to 18 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0050-4000-8_0

Key Features

  • Frequency Range (GHz): 0.50-40.00
  • Output Power (dBm): 15
  • Small Signal Gain (dB): 14
  • Noise Figure (dB): 15
  • Bias: 12 ±3 VDC
  • Package Dimensions: 58.8x25x12.5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 0.50
Frequency Stop (GHz): 40.00
Output Power (dBm): 15
Gain (dB): 14.00
Gain flatness (dB): ±5
Noise Figure (dB): 15
VSWR IN: 2.3:1
VSWR OUT: 2.2:1
Power supply (V): 12 ±3
Current (mA): 200
Power consumption (W): 2.4
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
