ERZ-HPA-0050-1800-30

Wideband High Power Amplifier

ERZ-HPA-0050-1800-30 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0050-1800-30 is a Wideband High Power Amplifier providing an output power higher than 30 dBm and a gain of 33 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0050-1800-30_3

Key Features

  • Frequency Range (GHz): 0.50-18.00
  • Output Power (dBm): 31
  • Small Signal Gain (dB): 33
  • Noise Figure (dB): 2.5
  • Bias: 12±3 VDC
  • Package Dimensions: 36x61x14.5mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.50
Frequency Stop (GHz): 18.00
Output Power (dBm): 31
Gain (dB): 33.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 2.5
VSWR IN: 1.3:1
VSWR OUT: 1.5:1
Power supply (V): 12±3
Current (mA): 1125
Power consumption (W): 13.5
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

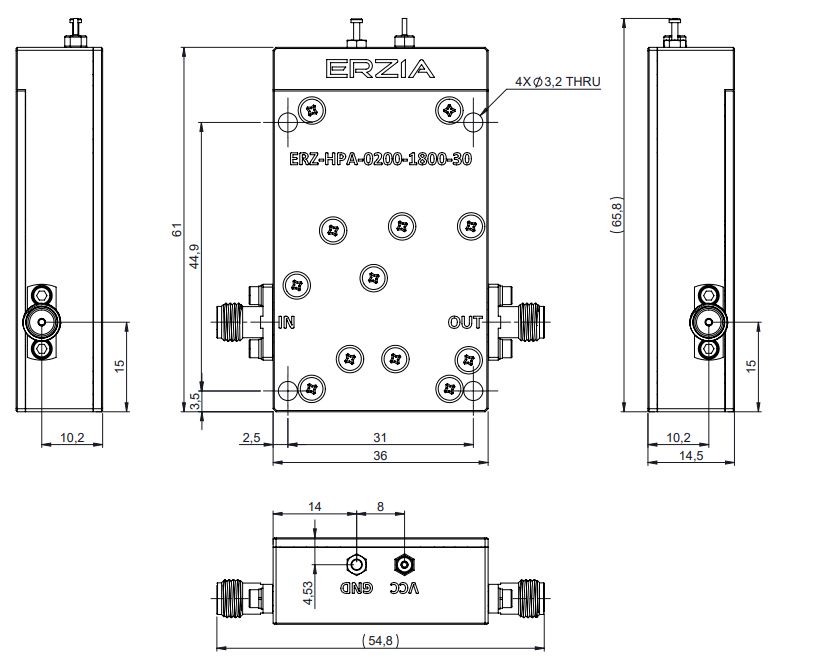

Outline Drawing
