ERZ-BPF-0530-0610-2.5

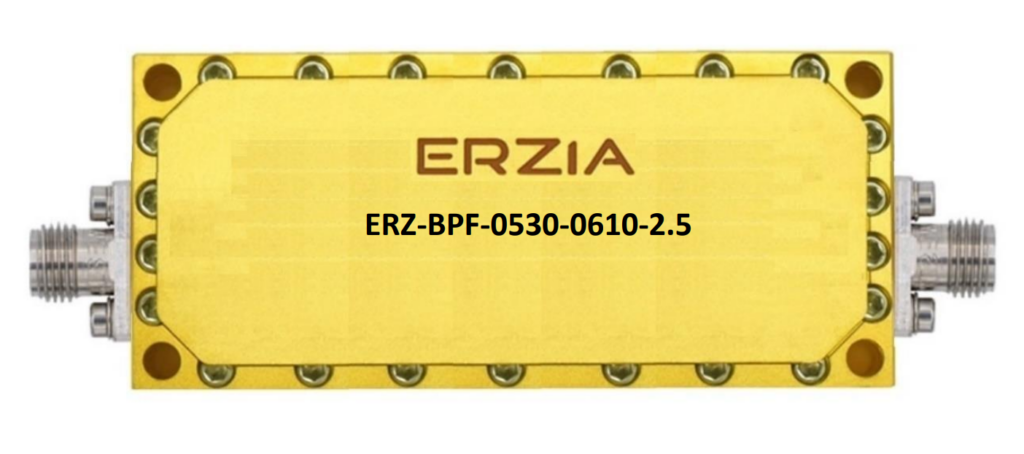

ERZ-BPF-0530-0610-2.5 Suspended Substrate

Login to see price Get a quote

Band Pass Fiter

Description

The ERZ-BPF-0530-0610-2.5 is a Suspended Substrate Band Pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final application.

Download

PDF IconERZ-BPF-0530-0610-2.5_0

Key Features

  • Frequency Range (GHz): 5.30-6.10
  • Type: BPF
  • Technology: SS
  • Package Dimensions: 90x40x10 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 5.30
Frequency Stop (GHz): 6.10
Insertion Loss (dB): 2
Return Loss (dB): 15
Minimum frequency for 30 dB out of band rejection (GHz): 5.1
Maximum frequency for 30 dB out of band rejection (GHz): 6.4
Minimum frequency for 60 dB out of band rejection (GHz): 5
Maximum frequency for 60 dB out of band rejection (GHz): 6.7
Max. RF input power (dBm): 40
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
