ERZ-BPF-0350-0610-2.1

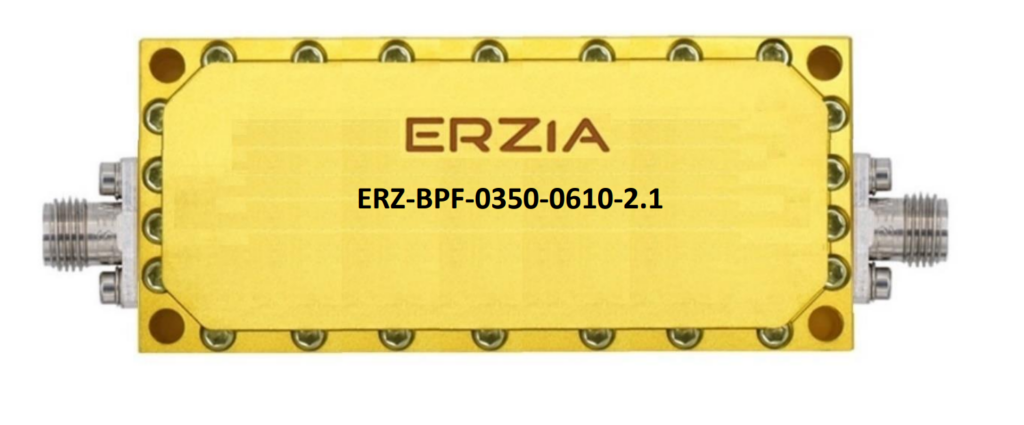

ERZ-BPF-0350-0610-2.1 Suspended Substrate

Login to see price Get a quote

Band Pass Fiter

Description

The ERZ-BPF-0350-0610-2.1 is a Suspended Substrate Band Pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final applications.

Download

PDF IconERZ-BPF-0350-0610-2.1_0

Key Features

  • Frequency Range (GHz): 3.50-6.10
  • Type: BPF
  • Technology: SS
  • Package Dimensions: 90x40x10 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 3.50
Frequency Stop (GHz): 6.10
Insertion Loss (dB): 1.2
Return Loss (dB): 18
Minimum frequency for 30 dB out of band rejection (GHz): 3.1
Maximum frequency for 30 dB out of band rejection (GHz): 6.4
Minimum frequency for 60 dB out of band rejection (GHz): 2.9
Maximum frequency for 60 dB out of band rejection (GHz): 6.7
Max. RF input power (dBm): 40
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
