X Band Low Noise Amplifier
Description:
The ERZ-LNA-0600-1200-25-1 is a Low Noise Amplifier providing a gain of 25 dB with a noise figure below 1 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 6.00
|
|---|---|
| Frequency Stop (GHz) | 12.0
|
| Output Power (dBm) | 14
|
| Gain (dB) | 25
|
| Gain flatness (dB) | ±1
|
| Noise Figure (dB) | 0.9
|
| VSWR IN | 1.4:1
|
| VSWR OUT | 1.4:1
|
| Power supply (V) | 12±3
|
| Current (mA) | 25
|
| Power consumption (W) | 0.3
|
| Max. Input DC (no damage) (V) | 15
|
| Max. RF input power (dBm) | 18
|
| Temperature (operation) (°C) | -45 to 85
|
| Temperature (storage) (°C) | -55 to +125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

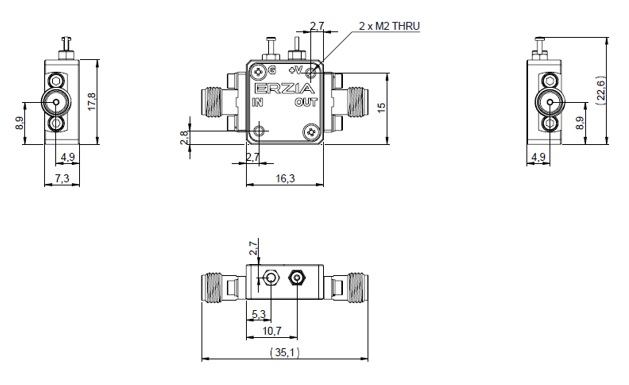

Outline Drawing:
