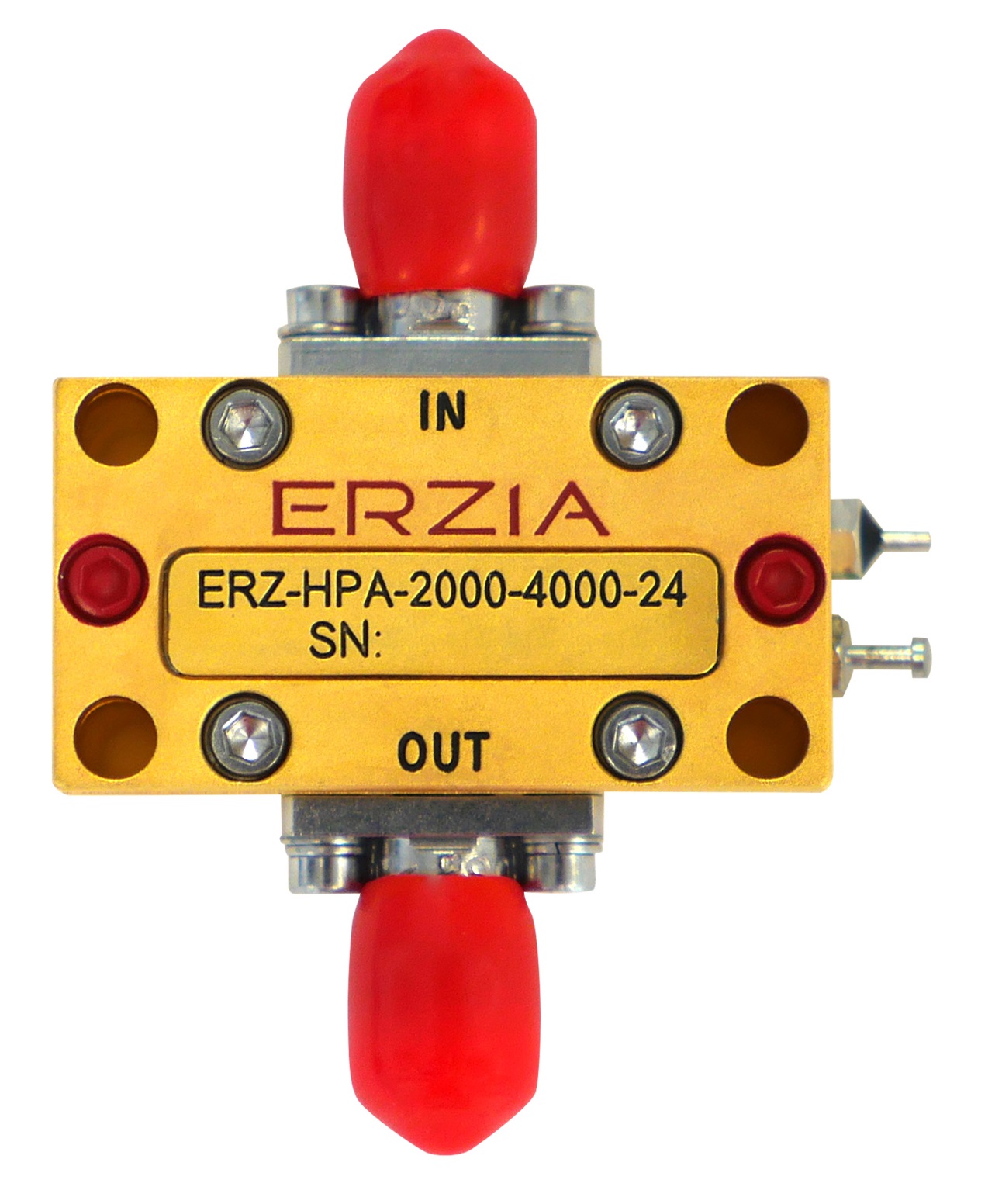

ERZ-HPA-2000-4000-24
Wideband High Power Amplifier
Description
The ERZ-HPA-2000-4000-24 is a Wideband Amplifier providing an ouput power of 25 dBm and a gain of 20 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 20.00-40.00
- Output Power (dBm): 25
- Small Signal Gain (dB): 20
- Noise Figure (dB): 6
- Bias: DC Power Supply: 9V
- Package Dimensions: 16x30x17.5 mm
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 20.00 |
| Frequency Stop (GHz): | 40.00 |
| Output Power (dBm): | 25 |
| Gain (dB): | 20.00 |
| Gain flatness (dB): | ±2 |
| Noise Figure (dB): | 6 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 333 |
| Power consumption (W): | 4 |
| Temperature (operation) (°C): | -45 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military
Outline Drawing
Ordering Information
