ERZ-SW5-0010-1800-3.5

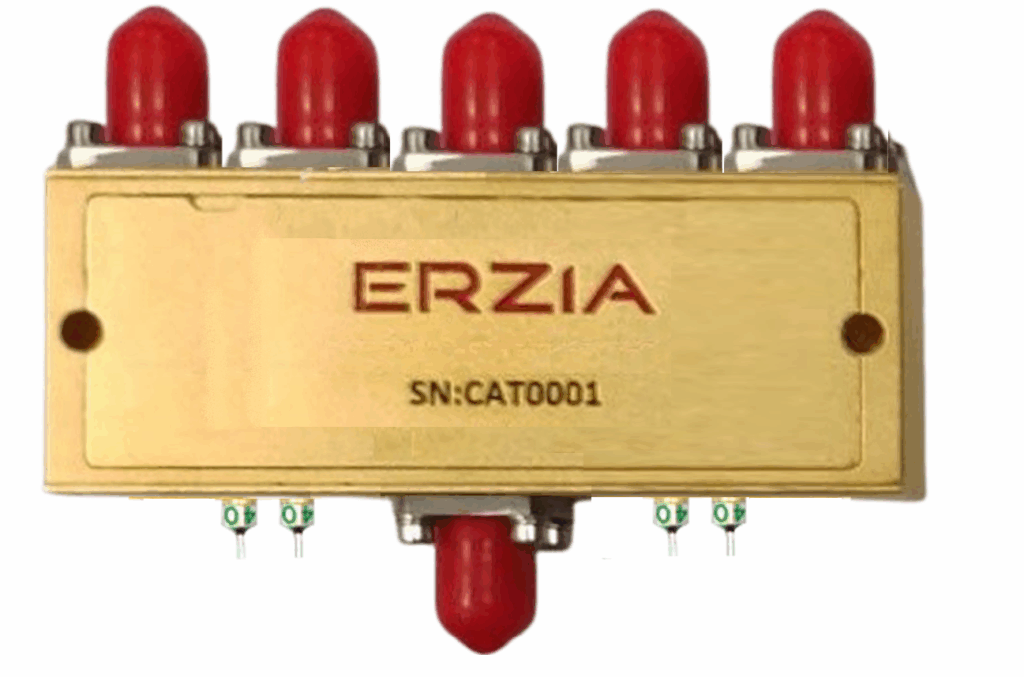

ERZ-SW5-0010-1800-3.5 Switch

Login to see price Get a quote

Description

The ERZ-SW5-0010-1800-3.5 is a wideband SP5T switch with low insertion losses and high isolation. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-SW5-0010-1800-3.5_0

Key Features

  • Frequency Range (GHz): 0.1-18
  • Insertion Loss (dB): 3.5
  • Isolation (dB): 45
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.1
Frequency Stop (GHz): 18
Insertion Loss (dB): 3.5
Isolation (dB): 45
VSWR: 1.5:1
Switching Time (ns): 75
Max. RF input power (dBm): 23
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
