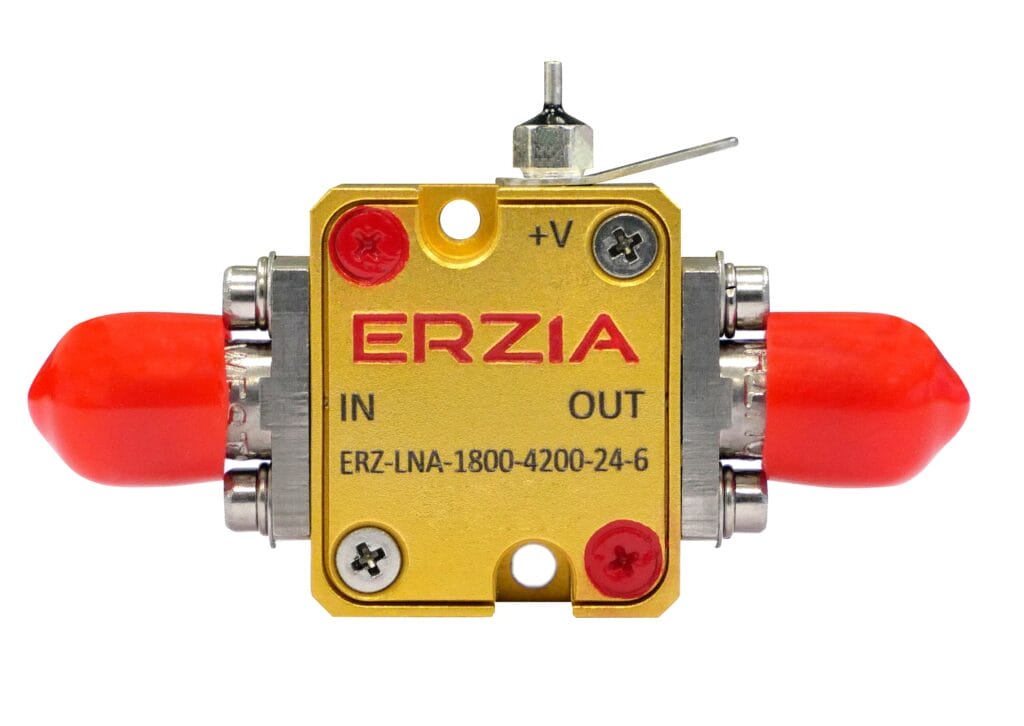

ERZ-LNA-1800-4200-24-6
Wideband Low Noise Amplifier
Description
The ERZ-LNA-1800-4200-24-6 is a Low Noise Amplifier providing a gain of 24 dB with a noise figure of 5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 18.00-42.00
- Output Power (dBm): 12
- Small Signal Gain (dB): 24
- Noise Figure (dB): 5
- Bias: 15V
- Output Saturation Power (dBm): 25
- Package Dimensions: 16.3 x 18.9 x 7.4
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 18.00 |
| Frequency Stop (GHz): | 42.00 |
| Output Power (dBm): | 12 |
| Gain (dB): | 24.00 |
| Gain flatness (dB): | ±1.5 |
| Noise Figure (dB): | 5 |
| VSWR IN: | 2.1:1 |
| VSWR OUT: | 1.8:1 |
| Power supply (V): | 15 ± 3 |
| Current (mA): | 66 |
| Power consumption (W): | 1 |
| Temperature (operation) (°C): | -54 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
